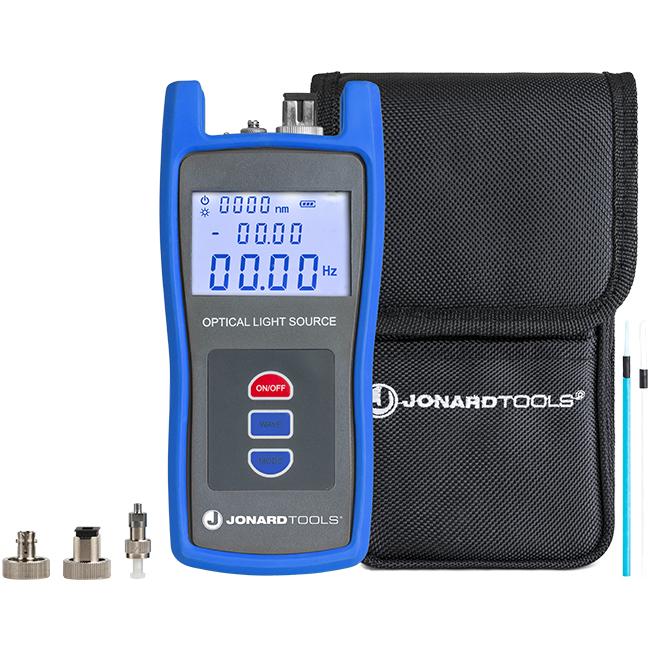

Jonard Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
Features:
- Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
- Highly stable output power and wavelengths
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths
- Flush button design makes it easy to use and prevents dust from entering the unit
- Shatter-resistant sleeve protects the light source from falls or other damage
- Backlit LCD screen provides a clear display, ideal for dark places
Designed to provide either 1310 nm or 1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for single mode fiber measurements.
Kit Includes:
- Fiber Optic Light Source
- FC Adapter
- LC Adapter
- SC Adapter
- (2) Cleaning Swabs
- (3) AA Batteries (required for operation)
- Storage Pouch
Specifications:
- Fiber Type: Single Mode
- Connector Types: 1.25 mm LC and 2.5 mm FC/SC
- Wavelengths (nm): 1310, 1550
- Typical Output Power: -7 dBm
- Output Stability: ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr
- Operating Temperature: -10 ± 60°C
- Spectral Width: ≤ 10 nm
- Modulation Frequencies: CW / 270 Hz / 1 kHz / 2 kHz
- Battery Type: (3) AA 1.5V alkaline batteries
- Storage Temperature: -25 ± 70°C
- Dimensions: 7” x 3-3/16” x 1-1/4” (17.78 cm x 8.10 cm x 3.18 cm)
- Weight: .67 lbs / (10.72 oz)
