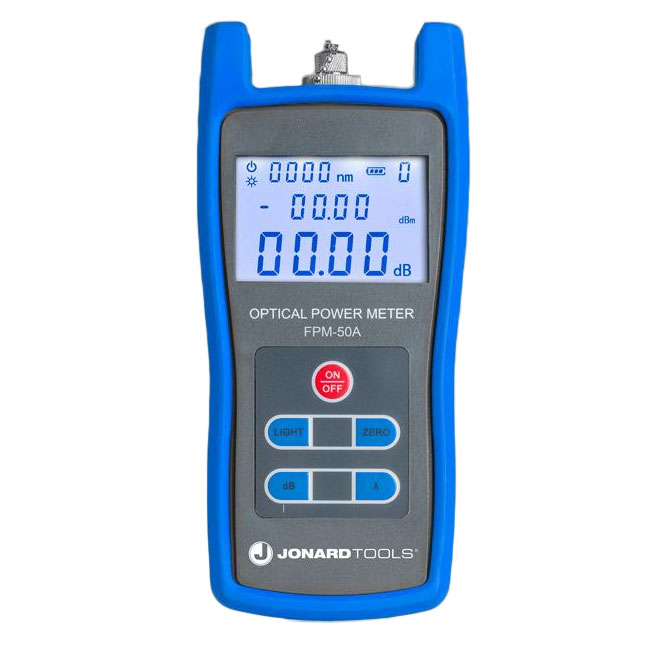

Jonard Fiber Optic Power Meter (-50 to +26 dBm) with FC/SC/LC Adapters
The Jonard Tools Fiber Optic Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables.

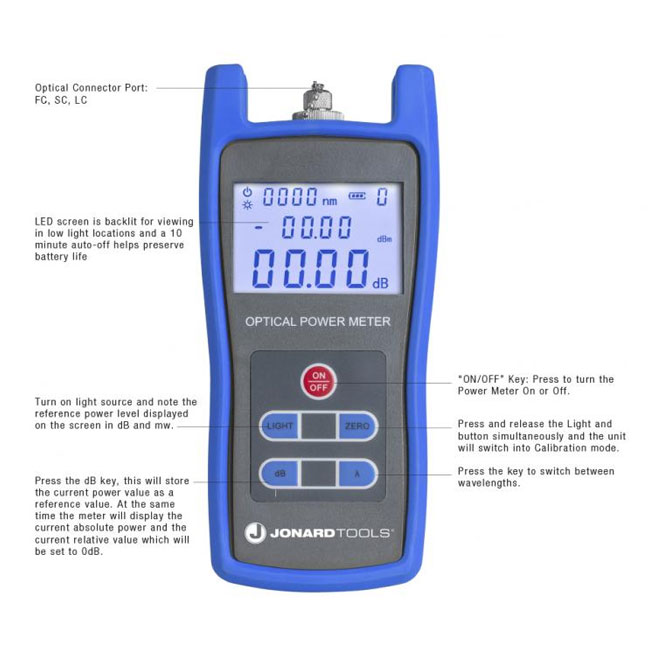

Features:
- Measures a wide variety of wavelengths from 800-1650 N-m, with a mere 0.01 dB resolution
- Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
- Special function of the unit allows the device to be manually calibrated as needed
- LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
- Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime
- Comes with FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
- The LC adapter is for PC/UPC connectors only

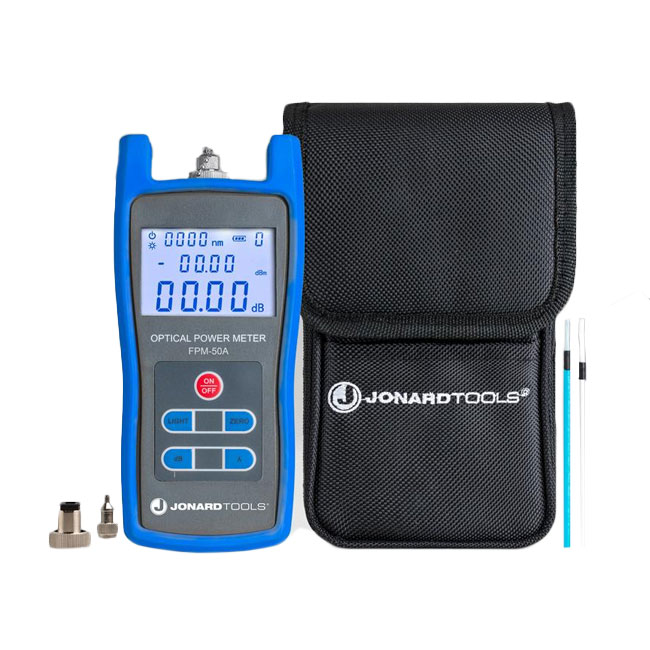

Includes:
- Fiber Optic Power Meter
- Instruction Manual
- Protective Cover
- (3) AA Batteries (required for operation)
- (2) Cleaning Swabs
- FC Adapter
- LC Adapter
- SC Adapter
- Nylon Carry Case
Specifications:
- Wavelengths Measured (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
- Detector Type: InGaAs
- Measurement Range (dBm): -50 +26
- Uncer tainty (dB): ±0.25
- Accuracy (dB): 0.01
- Auto-of f Time (min)*: 10
- Operating Time (h): ≥130
- Battery Type: 3 AA
- Weight w/o case and batteries g: 160 g (5.6 oz)
- Length: 7” (177.8mm)
- Height: 1.5” (25.4mm)
- Width: 3.25” (82.55mm)
- Weight: 1.50 lbs
Click here for a video on the FPM
