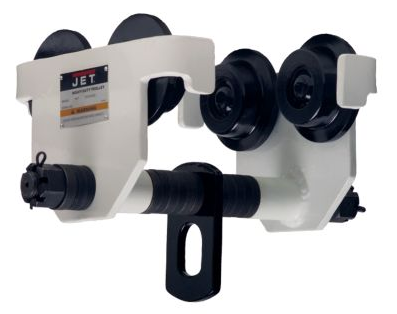

Jet 5-PT 5-Ton Heavy Duty Manual Trolley

JET® PT Series Heavy Duty Manual Trolleys are built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built-in bumper guards increase user safety and extend the life of the trolley. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards. (For hoists)

Features:

• Durability
• Welded heavy gauge steel frame and powder coat finish provides maximum durability and protection
• Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
• Built-in bumper guards on the side plates increase safety and extend trolley life
• Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
• Standards
• Complies with OSHA Regulations, ANSI / ASME B30.11, and B30.17 standards
• Certification- Load tested to 125% of capacity with certificate

Specifications:

• Load Capacity (Tons): 5
• Minimum Beam Flange Width (in.): 4-5/8 to 8
• Minimum Beam Height (in,): 5
• Minimum Beam Curve Radius (in.): 55
