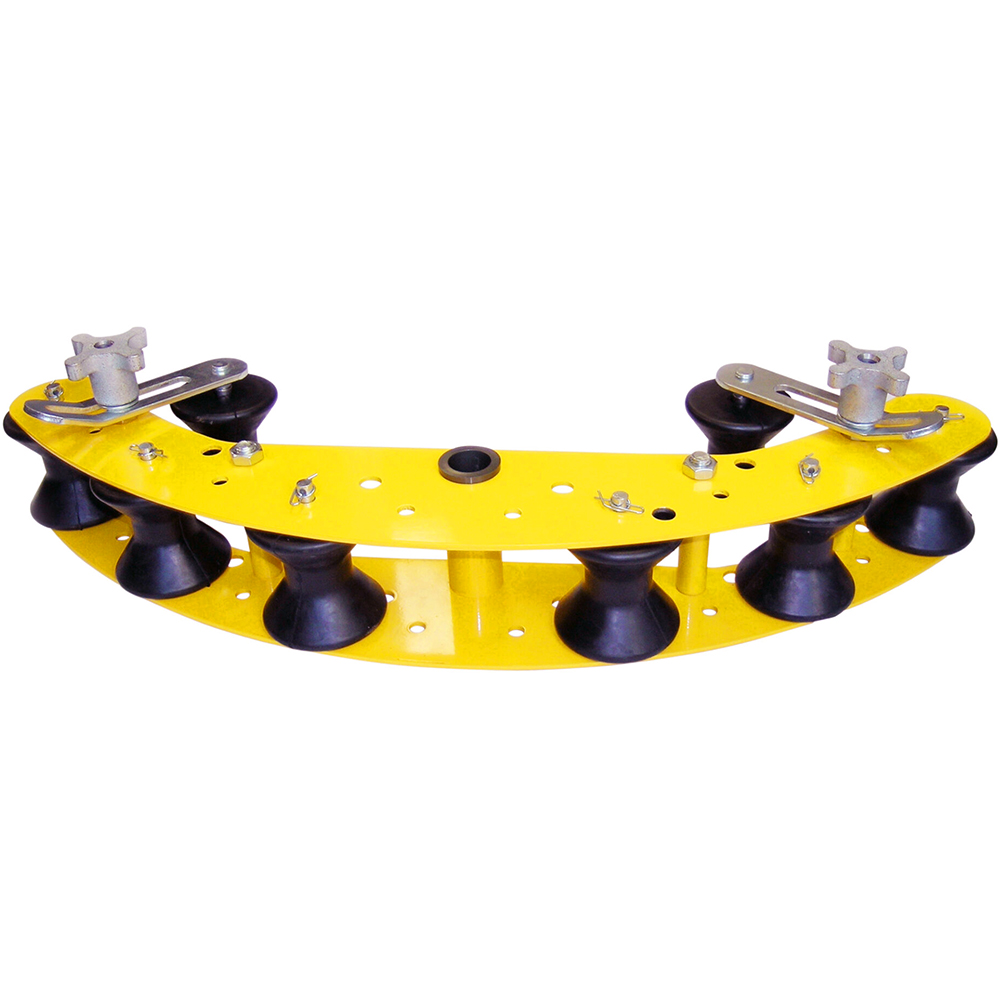

Jameson Corner Block

The Jameson Corner Block is a heavy duty device with rollers that is used to evenly distribute pressure on coax or fiber cable when pulling around corners. Steel side plates with straight base act as a strut for increased strength. Nylon axle bushings provide easy swivel and longer axle life. Adjustable keeper arm holds cable in place as it is pulled through block. Corner blocks are used to make cable placement easier.

Features:

• Easy Cable Pulling Around Corners
• Evenly distributes pressure on coax or fiber cable when pulling around corners
• Steel side plates with a straight base for increased strength
• Interchangeable with alternative set-up brackets
• Component parts for 60 and 90 degree blocks are fully interchangeable
• Steel side plates can be replaced in the field
• Corner blocks make cable pulling and placement easier

Available Options:

• 60-Degree Corner Block, Single Rollers    80-161
• 60-Degree Corner Block, Dual Rollers       80-162
• 90-Degree Corner Block, Single Rollers    80-591
• 90-Degree Corner Block, Dual Rollers       80-592
• 90-Degree Corner Block, Quad Rollers      80-594
• 60-Degree Corner Block, 3-inch rollers     80-161
