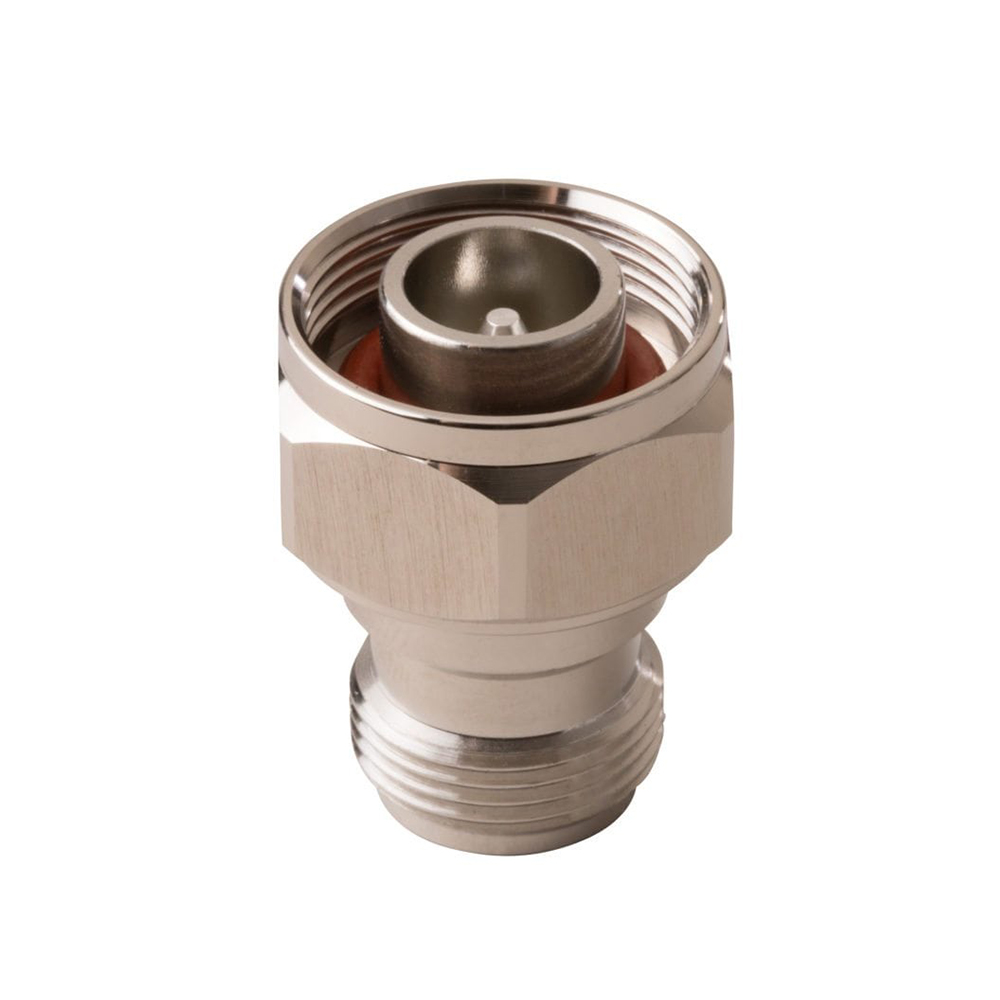

Izzy Industries 4.1/9.5 Mini Din Male to N Female Low PIM Coaxial Adapter

The Izzy Industries 4.1/9.5 Mini Din Male to N Female Low PIM Coaxial Adapter is low VSWR, made of brass, and has an IP67 rating.

Features:

• Low PIM
• Low VSWR
• Waterproof degree: IP67

Electrical Performance:

• Frequency range: DC to 4GHz
• Impedance: 50±1.5Ω
• VSWR: ≤1.15
• 3rd Order PIM: ≥-155dBc
• Dielectric Resistance: ≥5000MΩ
• Connector Type: Din male – N female

Mechanical Performance:

• Waterproof degree: IP67
• Moisture resistance: IP67
• Mating cycles: ≥500

Environment Performance:

• Operating temperature range: -40?~+85?
• Storage temperature range: -40?~+85?

Material & Plating:

• Center contact: Brass Ag Plating
• Insulator: PTFE
• Outer contact: Brass CuSnZn Plating
• Gasket: Rubber
• Nut Brass: Ni Plating
