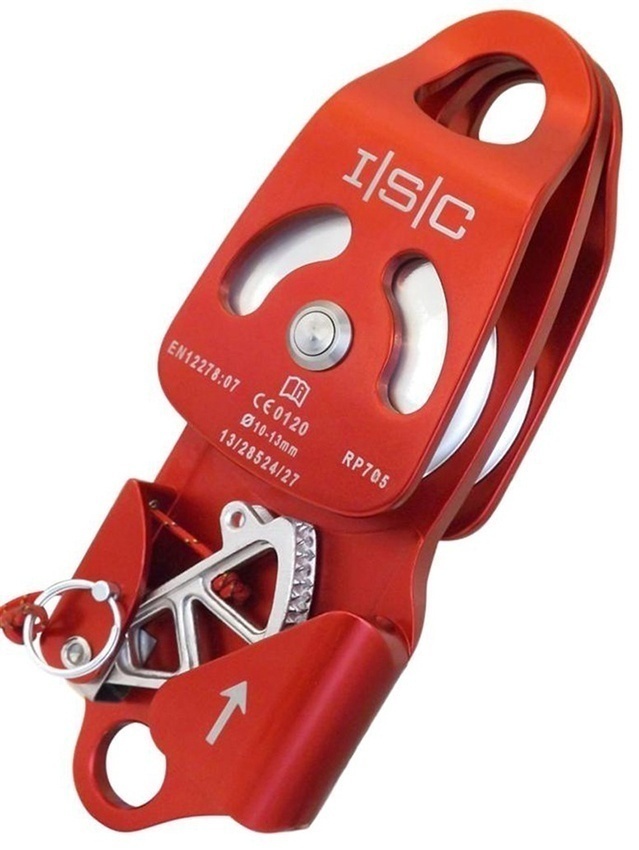

ISC One-Way Locking Double Progress Capture Pulley

IS-RP705A1
Direct Ship Ships in: 2 to 3 days
FREE SHIPPING OVER $35!

$262.27


ISC One-Way Locking Double Progress Capture Pulley

The ISC One-Way Locking Single Progress Capture Pulley has a one-way locking bearing which is ideal for lifting and lowering. The wheel is locked in one direction, to create maximum friction when lowering/releasing.  In the opposite direction, the wheel runs freely, for minimum friction for lifting/hauling/tensioning. It incorporates a cam which automatically captures the load while lifting/pulling a load or tensioning a line. To lower/release the line the cam must be manually clamped by using the flexible Dyneema release cord and pinned clear of the rope during the lower/release of the line.

Specifications:

  • Weight: 32 oz. (900 g)
  • Body Material: Aluminum
  • Finish: Anodised
  • WLL (Working Load Limit): 1,323 lbs. (600 kg)
  • Rope Size: 3/8 - 1/2 in. (10 - 13 mm)
  • MBS (Minimum Breaking Strength): 6,744 lbf. (30 kN)
  • Standards: EN567 & NFPA 1983
SKU IS-RP705A1
Manufacturer ISC
Pulley Features Single
Type Single
