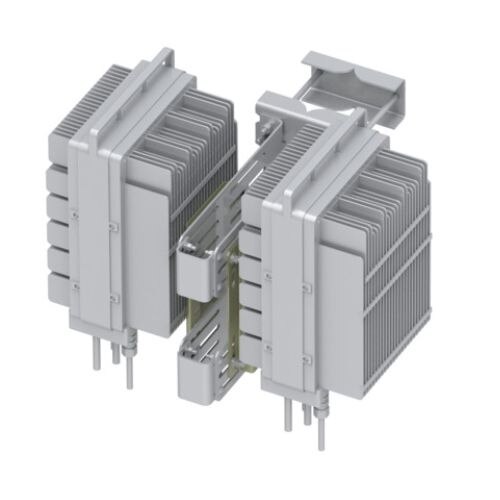

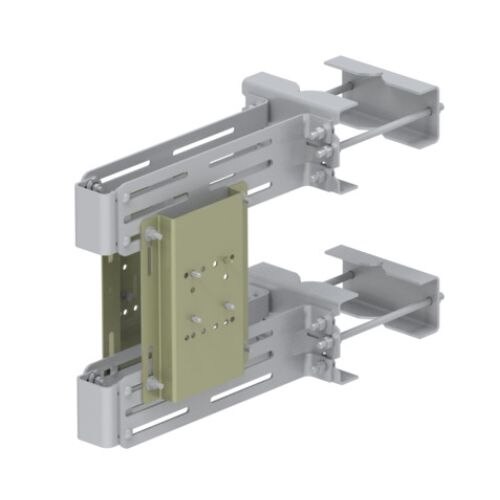

This Interface Plate Adapter Kit allows you to mount a wide range of Ericsson radios to Andrew RR-FA2-style universal radio brackets in back-to-back configurations.

The kit includes two galvanized interface plates and all required hardware:

M-series stainless hardware for mounting to Ericsson radios

Galvanized hardware for mounting to CommScope RR-FA2-style brackets

Each kit supports the following mounting patterns:

cc80x80

cc110x110

cc30x110

cc80x110

Compatible with these Ericsson radios and mount types:

4455 RADIO / AIR mounting

4435, 4460 RADIO / AIR mounting

4435, 1281, 5322 AIR mounting

4415, 4426, 4478 RADIO / 6308 POWER mounting

4449, 4467, 4490, 4890, 8843, 8863 RADIO mounting

Total kit weight: 13 lbs
Includes 2 adapter plates and complete hardware.

If your radio is not listed, please consult your Andrew/CommScope account manager for compatibility.

Kit includes (2) galvanized adapter plates

Mounts Ericsson radios to CommScope RR-FA2 brackets

Compatible with 4415 / 4435 / 4449 / 4455 / 4460 / 4467 / 4478 / 4490 / 4890 / 8843 / 8863

Includes M hardware* for radios and galvanized bolts for mounting bracket

Supports mounting patterns: cc80x80, cc110x110, cc30x110, cc80x110

Total weight: 13 lbs per kit

Equivalent to Andrew/CommScope 860677769-001
