Inno Instrument Mini 2 OTDR Kit

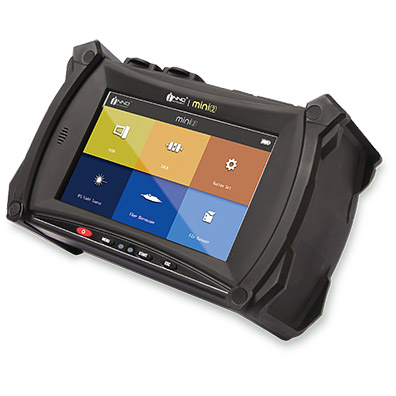

Compact and Accurate OTDR

Featuring both compactness and lightness, the MINI2 OTDR boasts precision-based test performance, fast response, and easy-to-use capacitive touchscreen. Users can experience accurate and rapid test results with automatic report generation.
Inno Instruments View Mini 2 1310/1550nm 32dB/30dB OTDR Kit is used in the installation and maintenance of fiber optic cables. It features high precision test capabilities, fast response times, and easy to learn operation. The multi-point capacitive touch screen allows for user-friendly operation. The MINI2 OTDR is compactly designed and very lightweight and hand-held.



Product Features

• SOLA, Simplify the OTDR Test Process
• 5" Touch Screen with Smart GUI
• 8GB Internal Storage with Internal SD Card and External USB Memory
• Built-In VFL and Light Source
• Very Light Weight and Hand-held



Product Specifications
• Display: 5 inches, High Brightness TFT LCD, resolution of 800×480
• Distance Unit: m / km / mile / ft
• Dynamic range: 1310nm / 1550nm, 32dB / 30dB
• Measurement range (km): 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km
• Measurement range (mile): 0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 223.7mile
• Pulse width: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs
• Event dead zone: 1m
• Attenuation dead zone: 5m
• Distance accuracy: ±(1m+Distance×2.5×10-5 +Sampling resolution)
• Loss scale linearity: ±0.1dB or ±0.05dB / dB
• Sampling points: 110,000 points
• Resolution: 0.04m ~ 10.24m
• Operating mode: Press keys and touch screen
• Battery capacity: Operating Time : Up to 12hours
• File format: SOR(Telcordia), BMP, JPG
• External connection: USB 2.0
• Compatible connector: FC, SC (APC or UPC)
• Power supply: AC Input 100-240V, 50-60Hz / DC Input 19V, 3.42A
• VFL module: Operating wavelength: 650nm ±10nm, Universal interface: 2.5mm
• Light source: Operating wavelength: 1310nm / 1550nm ±10nm
• Operating Condition: -10~50?, 0%~45% (no moisture condensation)
• Storage Condition: -20~60?, 0%~95% (no moisture condensation)
• Dimensions: 4.52H x 6.81W x 2.51D inches (115H x 173W x 64D mm, excluding rubber bumper)
