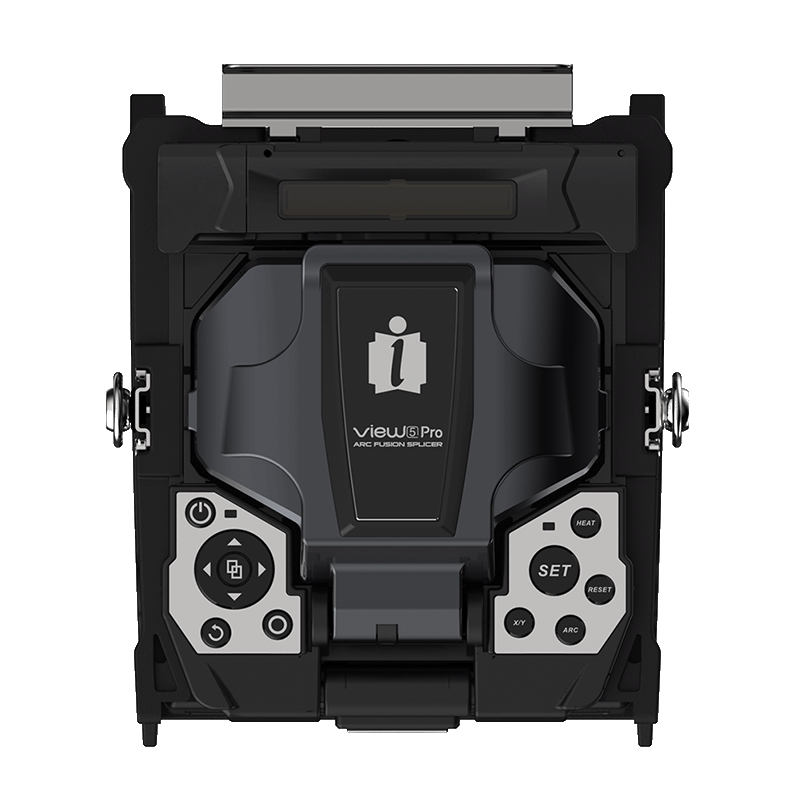

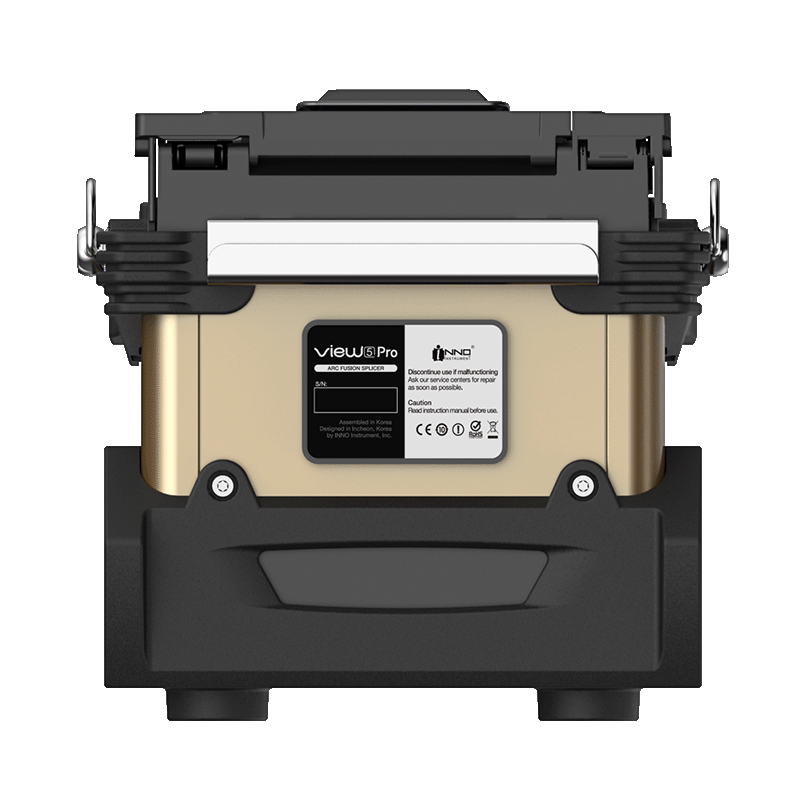

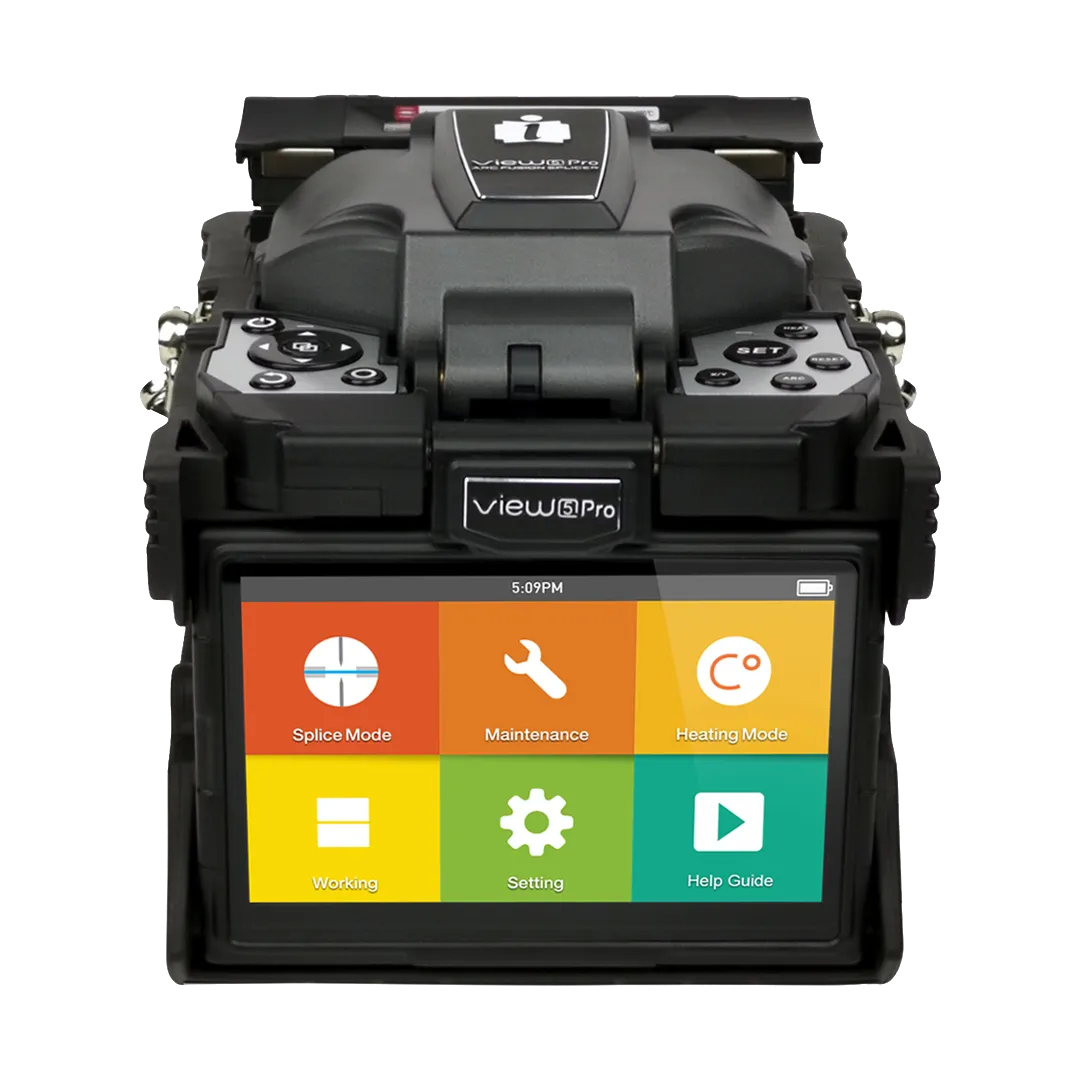

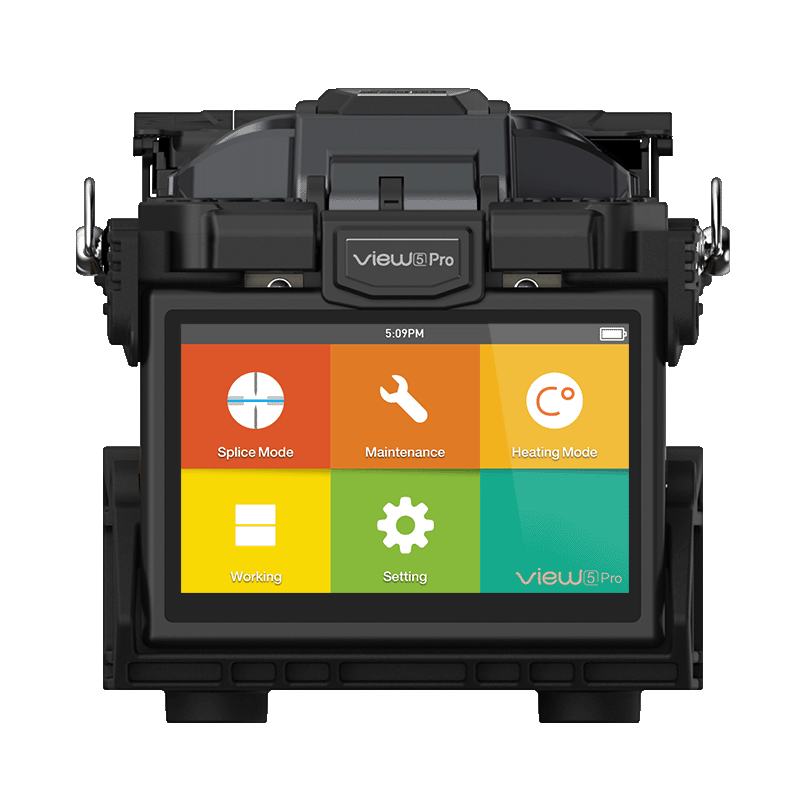

VIEW5 PRO, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most proficient fusion splicer in the market. VIEW5 PRO’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x.

The fusion splicer is equpped with built-in IoT module that connects to the INNO's View Pro Cloud Management System for real-time operation and management online. This innovative cloud-based solution is designed to create the most advanced and yet most uncomplicated splicing and work experiences ever. View Pro Management System is an integrated cloud-based software platform for INNO’s splicers. This innovative web-based application allows both technicians and managers of the splicers to maximize the use of its assets and to achieve the highest work efficiency. Real-time communications with tiered access rights and options to manage job orders, manage splicing ma- chines, and send/receive reports are only a small part of the innovative work processes offered by the View Pro.

Features:

• Detachable SOC Holder and Heating Oven
• Built-in IoT Module for Mobile Data Communication
• Detachable SOC Holder and Heating Oven
• Core Alignment Splicing with DACAS Profiling System
• Web-based, Real-time Operation System
• The Highest Magnification & Resolution
• User Friendliest Interface with Built-in Videos
• 5 Inch Color LCD Touch Screen

Specifications:

• Splicing Time:    7 sec (quick mode) / 9 sec (SM auto mode)
• Heating Time:     15 sec (typical heating time)
• Number of Fiber:     single
• Fiber View & Magnification:     520X magnification
• Dimension:     149W x 177D x 151H mm (including rubber bumper)
• Display:   touch screen / button
