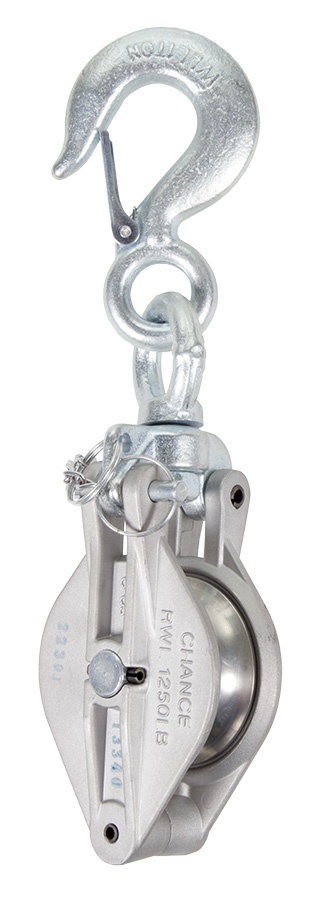

Hubbell Power Systems Aluminum Top-Opening Handline Block
Hubbell's handline block is made from light-weight cast-aluminum housing and sheave, with a hinged, cotterlock yoke and either forged steel or steel meat hook. This block allows for quick, easy rigging in diversified applications. Hand line and block and tackle efficiency is increased with a forged steel swivel-eye suspension ring and a three-inch sheave operating on bronze oilite bearings. Maximum rope size is 5/8" and the maximum load capacity is 1,250 pounds.
Specifications:
- 3" Aluminum Alloy Snatch Block
- Top-Opening with Safety Snap Hook
- Rated: 1250 lbs.
- Weight: 3 lbs
HB-22301
| Attachment: | Hook |
| Capacity: | 1250 lbs |
| Hardware: | Steel |
| Industry: |
Construction Utility Wind Energy Oil & Gas Transportation General Industry Mining Tower Climbing Iron Rope Access & Rescue Solar Tree Care Welding |
| Manufacturer: | Hubbell Power Systems |
| Material: | Aluminum Alloy |
| Rope Compatibility (Min/Max): | 5/8" |
| Snatch Block Type: | Hook |
