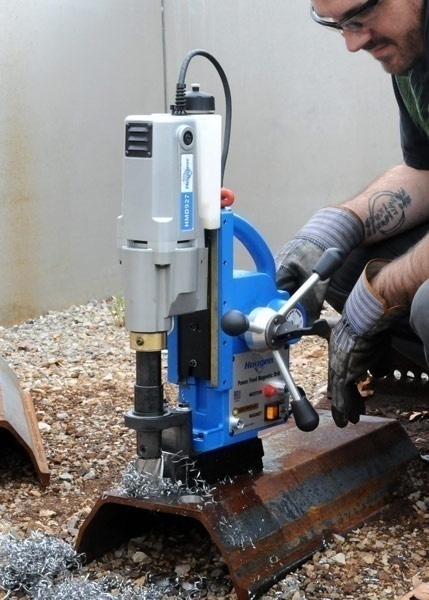

Hougen HMD927 Power Feed Magnetic Drill

Multiple Options Available

Availability: In stock

Quick Overview

Hougen HMD927 Magnetic offers two speeds and a power feed.

Hougen HMD927 Power Feed Magnetic Drill

Multiple Options Available

Availability: In stock

Quick Overview

Hougen HMD927 Magnetic offers two speeds and a power feed.
FREE SHIPPING!
$1,695.00

Hougen HMD927 Power Feed Magnetic Drill

Hougen's HMD927 is a two speed, power feed magnetic drill. Ideal for heavy duty fabrication, this magnetic drill is lightweight and powerful. With its large capacity, you can drill holes up to 2-3/8" in diameter and 3" deep. Hougen Drills are made for durability, and come complete with a carrying case and one year warranty. The HMD927 Magnetic Drill is also available with a swivel base for increased versatility in overhead and tight areas.


Features:
  • Large 1-5/8" x 2" capacity
  • Powerful high torque Hougen motor and gears
  • Two Speed gear box - 250 & 450 RPM
  • Pilot light - for low light or no light conditions
  • Smart technology optimizes feed rate for increased tool life and excellent hole quality
  • Single handle to engage power feed system
  • Selectable manual/power feed mode
  • Two stage magnet - 30% increase in power when motor is turned on
  • Positive slug ejection
  • Integrated coolant bottle
  • Lift detector safety system
  • One year warranty

Specifications:
  • Electrical System: 115V, 50/60 Hz - 13.5A, 1553W
  • Motor: 9A (115V)
  • Diameter: 7/16" - 1-5/8" (12mm-60mm)
  • Depth: 2" (50mm)
  • Cutter/Mount: 12,000 Sries, Copperhead, and Fusion cutters, 3/4" shank
  • Dimensions: 22-13/16" H x 7-11/16" W x 14-11/16" L


Available Options:

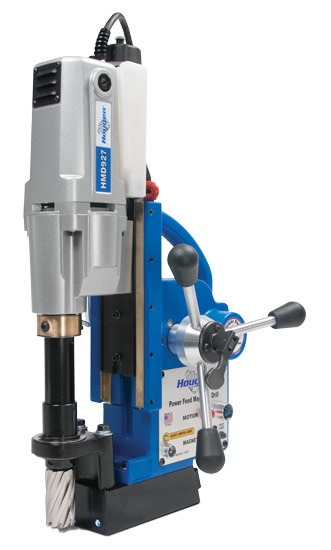

  • Standard Base (0927102)

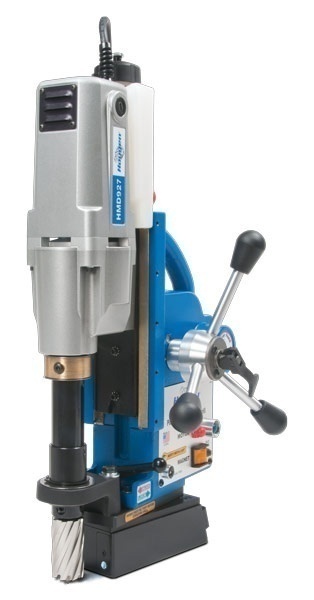

  • Swivel Base (0927104)












Tell us what you think about this item!

Product Documents

Product Description

Hougen HMD927 Power Feed Magnetic Drill

Hougen's HMD927 is a two speed, power feed magnetic drill. Ideal for heavy duty fabrication, this magnetic drill is lightweight and powerful. With its large capacity, you can drill holes up to 2-3/8" in diameter and 3" deep. Hougen Drills are made for durability, and come complete with a carrying case and one year warranty. The HMD927 Magnetic Drill is also available with a swivel base for increased versatility in overhead and tight areas.


Features:
  • Large 1-5/8" x 2" capacity
  • Powerful high torque Hougen motor and gears
  • Two Speed gear box - 250 & 450 RPM
  • Pilot light - for low light or no light conditions
  • Smart technology optimizes feed rate for increased tool life and excellent hole quality
  • Single handle to engage power feed system
  • Selectable manual/power feed mode
  • Two stage magnet - 30% increase in power when motor is turned on
  • Positive slug ejection
  • Integrated coolant bottle
  • Lift detector safety system
  • One year warranty

Specifications:
  • Electrical System: 115V, 50/60 Hz - 13.5A, 1553W
  • Motor: 9A (115V)
  • Diameter: 7/16" - 1-5/8" (12mm-60mm)
  • Depth: 2" (50mm)
  • Cutter/Mount: 12,000 Sries, Copperhead, and Fusion cutters, 3/4" shank
  • Dimensions: 22-13/16" H x 7-11/16" W x 14-11/16" L


Available Options:
  • Standard Base (0927102)
  • Swivel Base (0927104)
