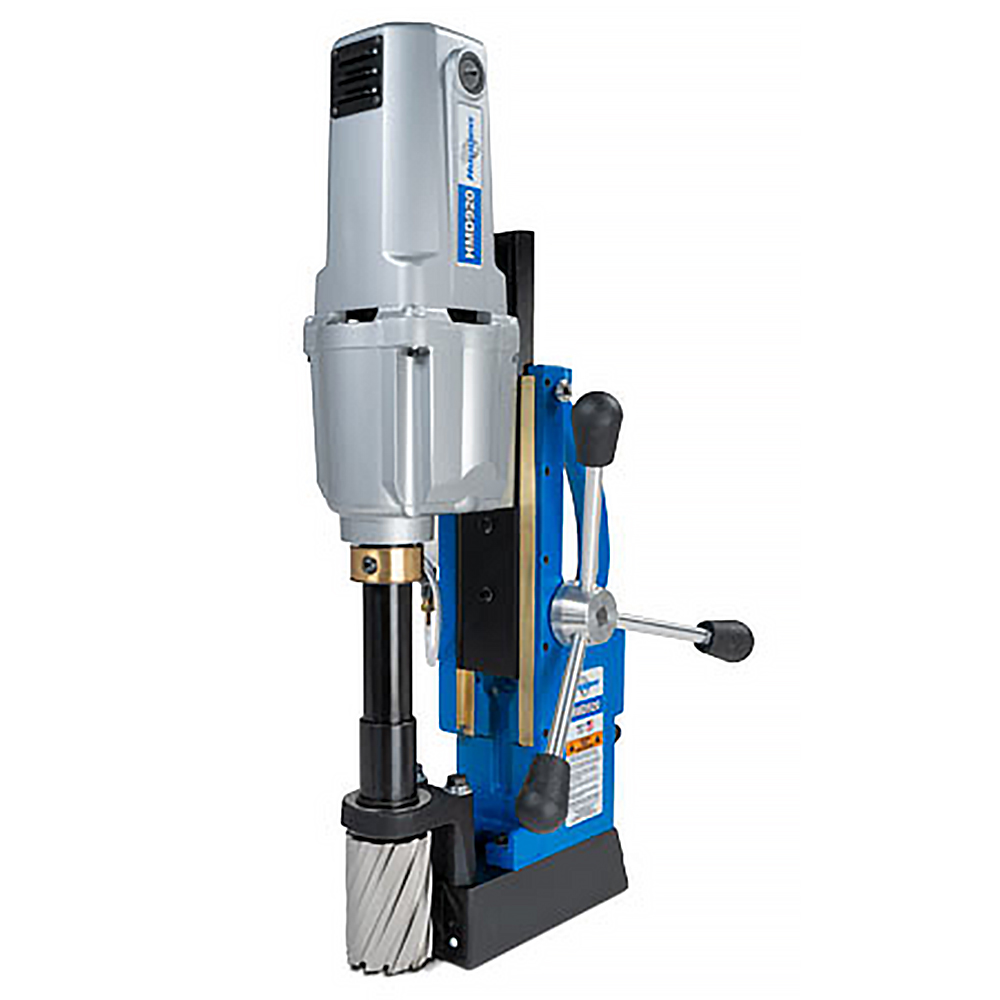

Hougen HMD920 Magnetic Drill

The Hougen HMD920 Magnetic Drill allows you to tackle the toughest hole-making challenges in the roughest of conditions. With the NEW in the roughest of conditions, you get powerful industrial strength motor for all-day everyday drilling, plus a three-speed gearbox to maximize torque, tool life, and productivity.

Features:

• Large 2-3/8" x 3" capacity
• Our most powerful high-torque motor
• Three-speed gearbox - 250 / 450 / 700 RPM
• Uses 12,000 Cutters and Copperhead Carbide annular cutters which requires no tools for installation or removal
  • 12,000 Cutter Kits
• Pilot light
• Two-stage magnet - 30% increase in power when motor is turned on
• Positive slug ejection
• Gravity-fed coolant bottle
• Many accessories are available for a portable machine shop including drill chucks, tapping, countersink, and more...
• Feed handles quickly change from side to side
• Lift detector safety system
• Rear mounted controls
• Two-year warranty

Swivel Base Features:

• Precisely line up your pilot with the holes center location
• One-stroke lock and unlock handle
• Great for horizontal, overhead, tight areas, and getting out over another piece of steel
• Patented

Specifications:

• Electrical System: 115V, 50/60 Hz - 13.5A, 1553W/ 230V, 50/60 Hz - 6.75A, 1553W
• Motor: 12.5A (115V), 6.25A (230V), 250/450/700 RPM
• Diameter: 7/16"- 2-3/8" (12mm - 60mm)
• Depth: 3" (76mm)
• Cutter/Mount: "12,000-Series" & Copperhead™ Carbide cutters, 3/4" shank
• Dimensions: 25-15/16" H x 8-3/16" W x 12-13/16" L (659mm H x 208mm W x 325mm L)

Available Options:

• Standard Base: 0920102
• Swivel Base: 0920104
