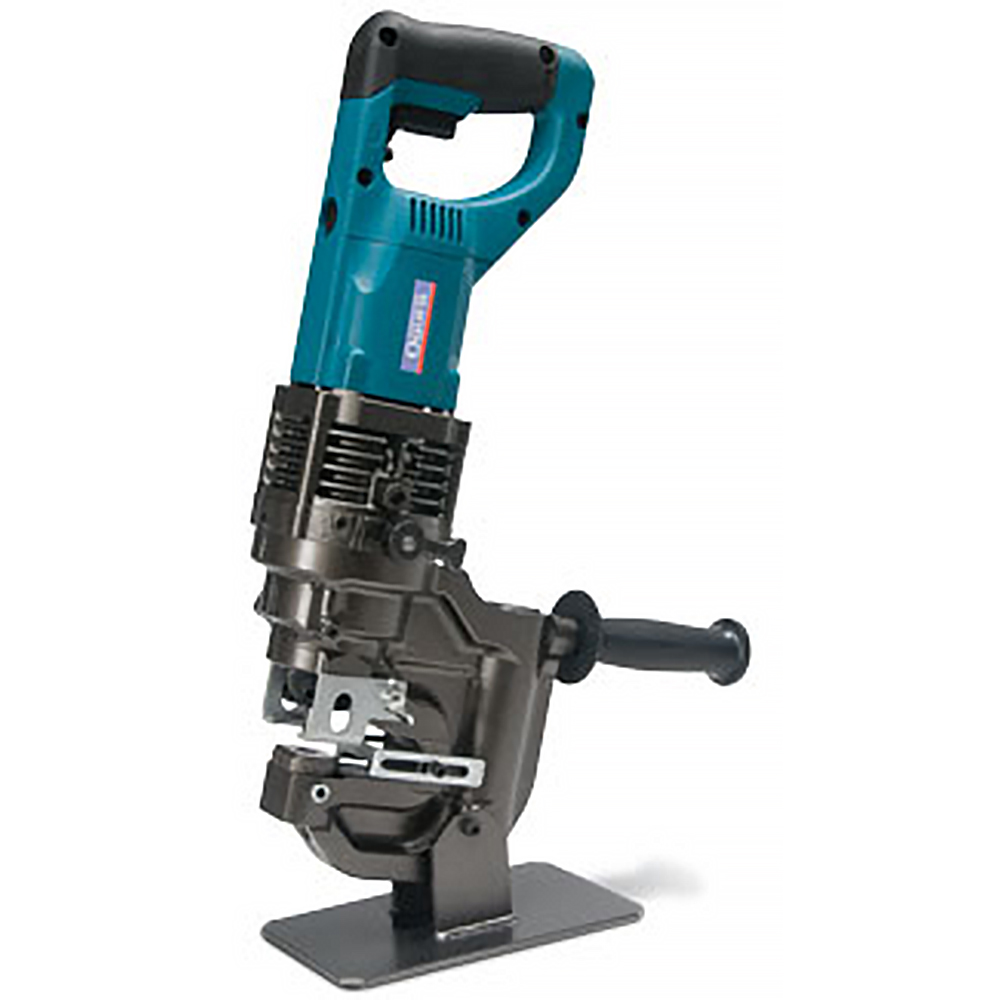

Hougen 75002.5PR Electro-Hydraulic Hole Puncher

A portable electro-hydraulic punch with 10.1 tons of punching pressure can quickly punch through 1/4" materials in 2.3 seconds. Easily confirm the hole position with the jog down feature. The punch automatically returns to the starting position after the punching cycle is complete. If the punch ever resists returning to the home position, squeeze the trigger for power feed return. The 75002.5PR is a self-contained unit that only requires electrical power. There are no separate hydraulics or power packs needed. Includes: work stand, foot switch, 7/16" (11mm) punch & die, tool kit, and carrying case.

Replaces the 75002.5A

The new 75002.5PR uses different punch & dies than the 75002.5A (The 75002.5PR shares punch & dies with the 75004PR but the 75002.5PR can only punch 1/4" material.)

Specifications:

• Pressure (Tons): 10.1
• Approx. Punching Speed: 2.3 secs
• Max Hole Size - Round: 3/4" - (19mm)
• Max Hole Thickness - Round: 1/4" - (6.4mm)
• Max Hole Size - Oblong: 9/16" x 13/16" (14mm x 21mm)
• Max Hole Thickness - Oblong: 1/4" - (6.4mm)
• Max Throat Depth: 2-3/8" - (60mm)
• 120V 50-60Hz AC: 6.3 Amps / 710 Watts
• Weight (less work stand): 24.9 lbs - (11.3 kg)
• Shipping Weight: 41.2 lbs - (18.7 kg)
