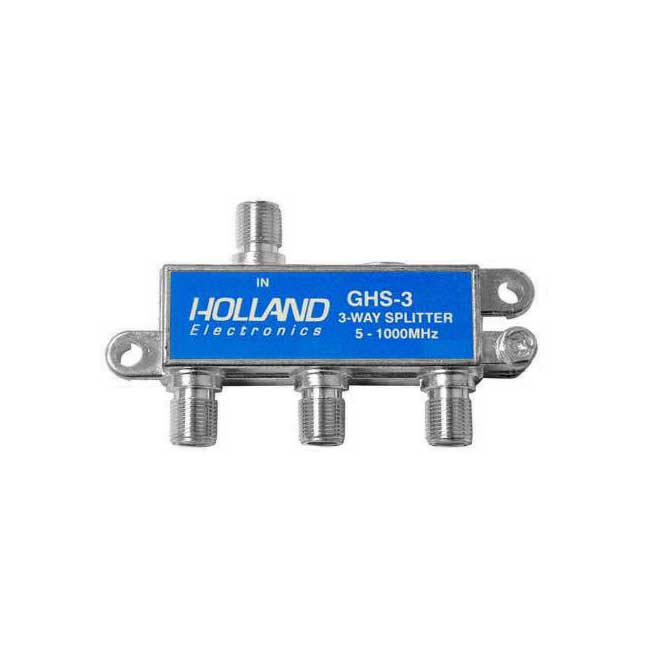

Holland GHS 3-Way Balanced Splitter

Holland's GHS series 1 GHz splitters are state-of-the-art product lines designed and tested using the most current procedures. New performance features have been incorporated to make both series compatible with the latest digital and return path requirements.

Features:

• SCTE compliant Flat-end F-ports
• Enhanced return path specifications
• Low intermodulation distortion
• Capacitor decoupled
• 3-way ground screw: hex/phillips/slot

Specifications:

• 6 kV Survivability
• RFI >130 dB
• Insertion Loss (dB) (Max):
  • 5 - 15: Typ. 5.6 / QC. 5.8
  • 16 - 40: Typ. 5.6 / QC. 5.8
  • 41 - 450: Typ. 6.2 / QC. 6.5
  • 451 - 750: Typ. 6.3 / QC. 6.5
  • 751 - 1000: Typ. 6.9 / QC. 7
