The Harrington LB Heavy Duty Lever Hoist features a nickel-plated chain lift, all-steel construction, and compact design that is ideal for tight areas. Use this lever hoist for heavy-duty construction work, mining, manufacturing, maintenance, and more.
Features:
- Grade 100 heat-treated, nickel-plated load chain for corrosion resistance
- Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads
- Top and bottom hooks rotate 360°
- Every hoist is factory load-tested to 125% of rated capacity, in accordance with ASME B30.21 requirements (includes test certificate)
- Rugged, all-steel construction actually weighs less than comparable aluminum models
- Positive braking action with a Weston-style load brake, incorporating two moisture-resistant brake pads and four braking surfaces
- Includes two brake pawls for additional reliability
- Enjoy protection against dirt and moisture with a totally enclosed brake mechanism
- Ensure long life with machined, heat-treated, split-load double reduction gears
- Operate in close quarters with short steel handle and 15-degree recovery strokes
- Patented spring-loaded freewheel mechanism allows easy adjustment of the load chain and safeguards against accidental freewheeling under load
- Equipped with standard rubber grip for non-slip operation
Available Options:

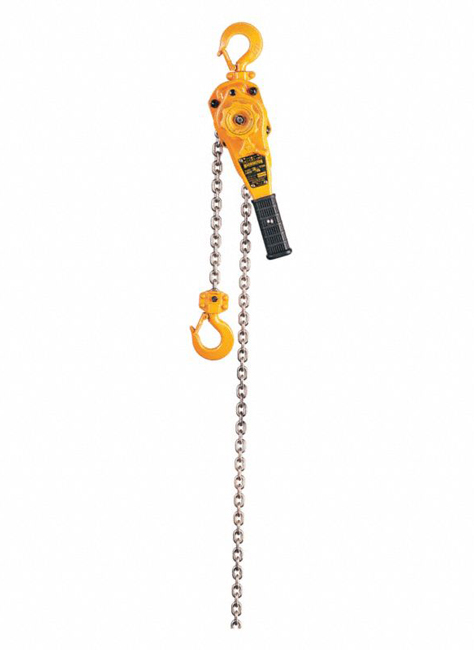

- LB008-10: 3/4 Ton Capacity, 10' Lift
- LB008-15: 3/4 Ton Capacity, 15' Lift
- LB008-20: 3/4 Ton Capacity, 20' Lift
- LB015-10: 1-1/2 Ton Capacity, 10' Lift
- LB015-15: 1-1/2 Ton Capacity, 15' Lift

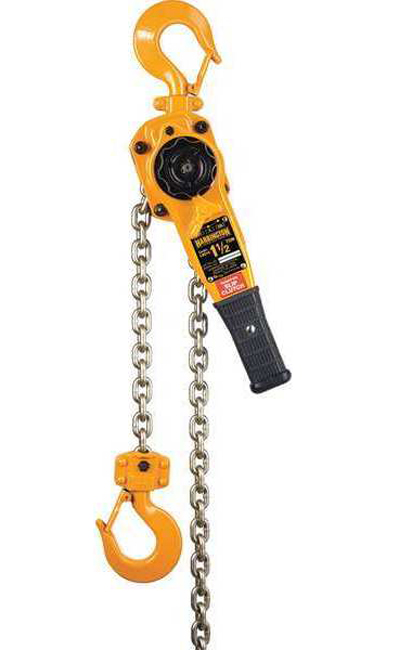

- LB015-20: 1-1/2 Ton Capacity, 20' Lift

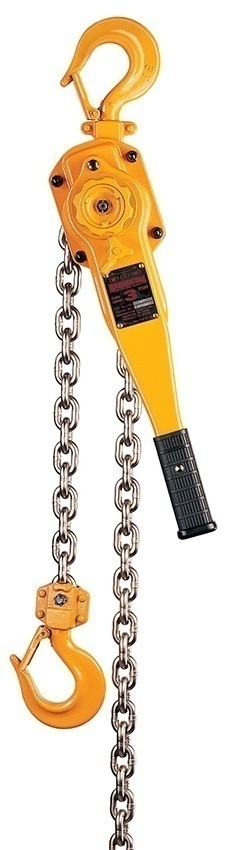

- LB030-10: 3 Ton Capacity, 10' Lift
- LB030-20: 3 Ton Capacity, 20' Lift

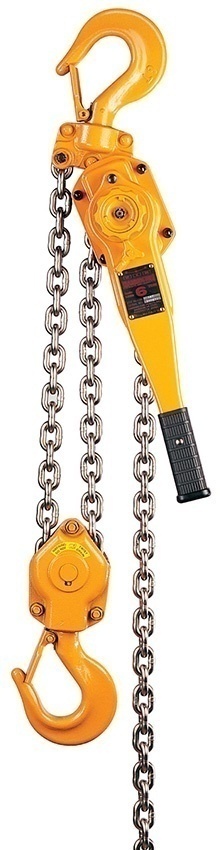

- LB060-10: 6 Ton Capacity, 10' Lift
