Home > Harken Industrial LokHead Capstan Winch INLH500 INLH500KIT

Model#: C-HK-INLH500

Stock#: C-HK-INLH500



Harken Industrial LokHead Capstan Winch

Multiple Options Available

$2,455.99 to $3,562.99 Sale price: $2,455.99 to $3,562.99

THIS ITEM SHIPS FOR FREE!
Please select an option below

Available Options *

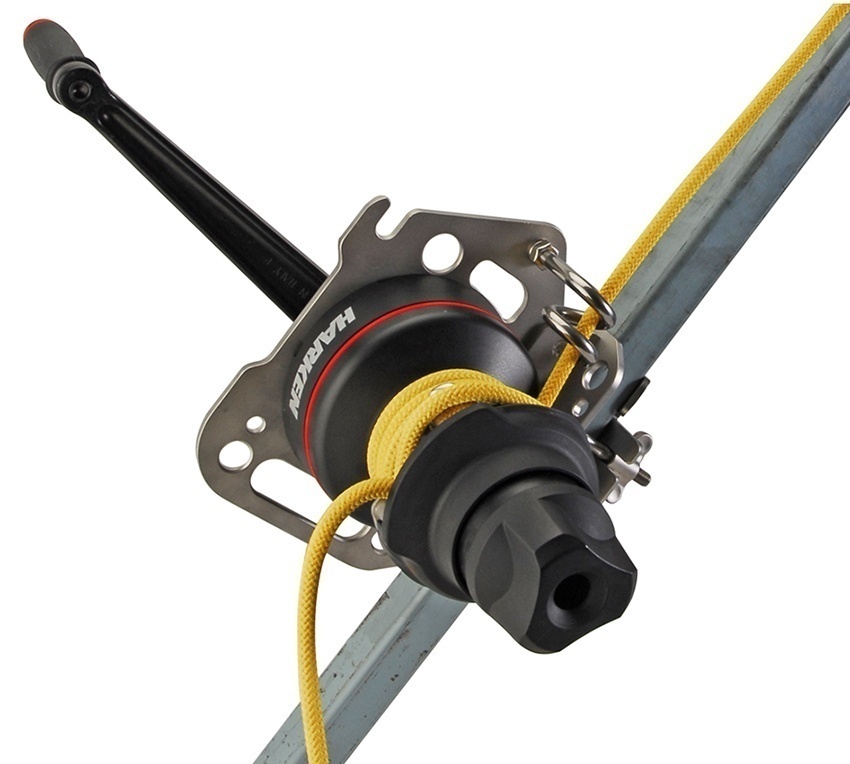

Harken Industrial LokHead Capstan Winch

The Harken Industrial LokHead Capstan Winch is a self-tailing, man-riding capstan winch that offers the safety and security of a captive head. This man-riding portable capstan winch is designed for confined space retrieval or for use with davit systems using an unlimited length of fibrous rope. The captive head allows the winch to be used safely, and keeps the rope from accidentally releasing. The LokHead can be used anywhere a load needs to be lifted and lowered. Rigged to a tripod, it can be used for confined-space rescue, for load moving/hauling, and man-riding. It works with 5/16 - 1/2 in (10 - 12.7 mm) rope. The LokHead capstan comes in two options - Just the winch and handle, or a full winch kit.

Features:

  • Lightweight: Weighing just 9.3 lb (4.2 kg), the LokHead winch can be incorporated into tripod design without significantly increasing the overall weight.
  • Braking System: The braking system controls descent and provides workers protection against free-falls. The encapsulating jaw cover protects fingers and clothing from catching in the winch.
  • Ergonomic: Easy to rig and efficient, the LokHead makes the most of the operator’s strength. The winch offers a 40:1 power ratio with 2 gears: low-load, high line speed; high-load, low line speed.
  • Versatile: The winch is designed for use with fiber rope 5/16 - 1/2 in (10 –12.7 mm) in diameter and unlimited line length
  • Manual Operation: The winch can be driven manually with the provided 10″ B10AL winch handle.

INLH500 Includes:

  • (1) LokHead Winch
  • (1) Handle

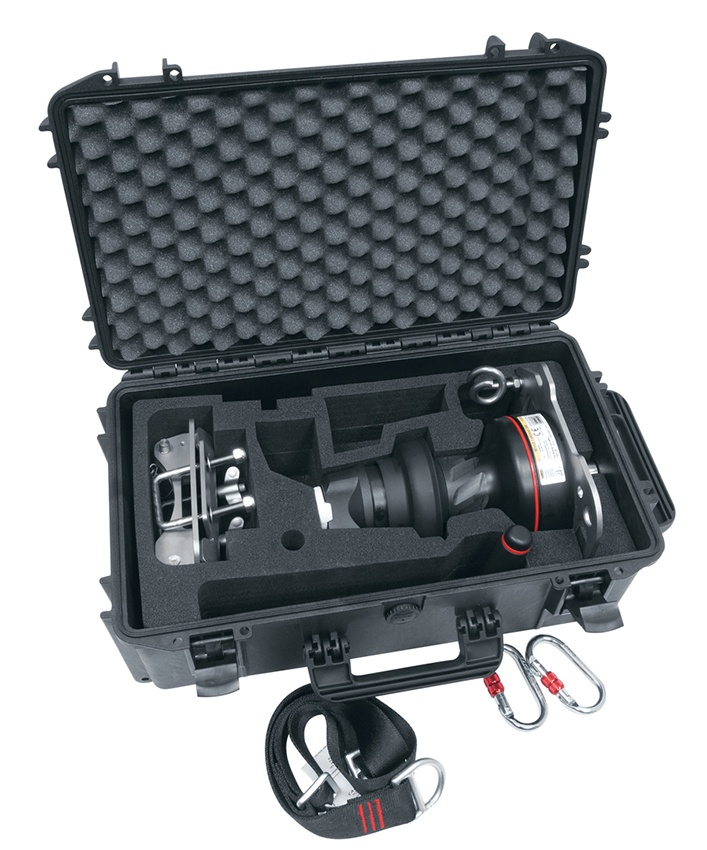

INLH500KIT Includes:

  • (1) LokHead Winch
  • (1) Mounting Plate
  • (1) Case
  • (1) Tripod Adapter
  • (1) Handle
  • (1) Whie Lever
  • (1) Sling
  • (2) Carabiners

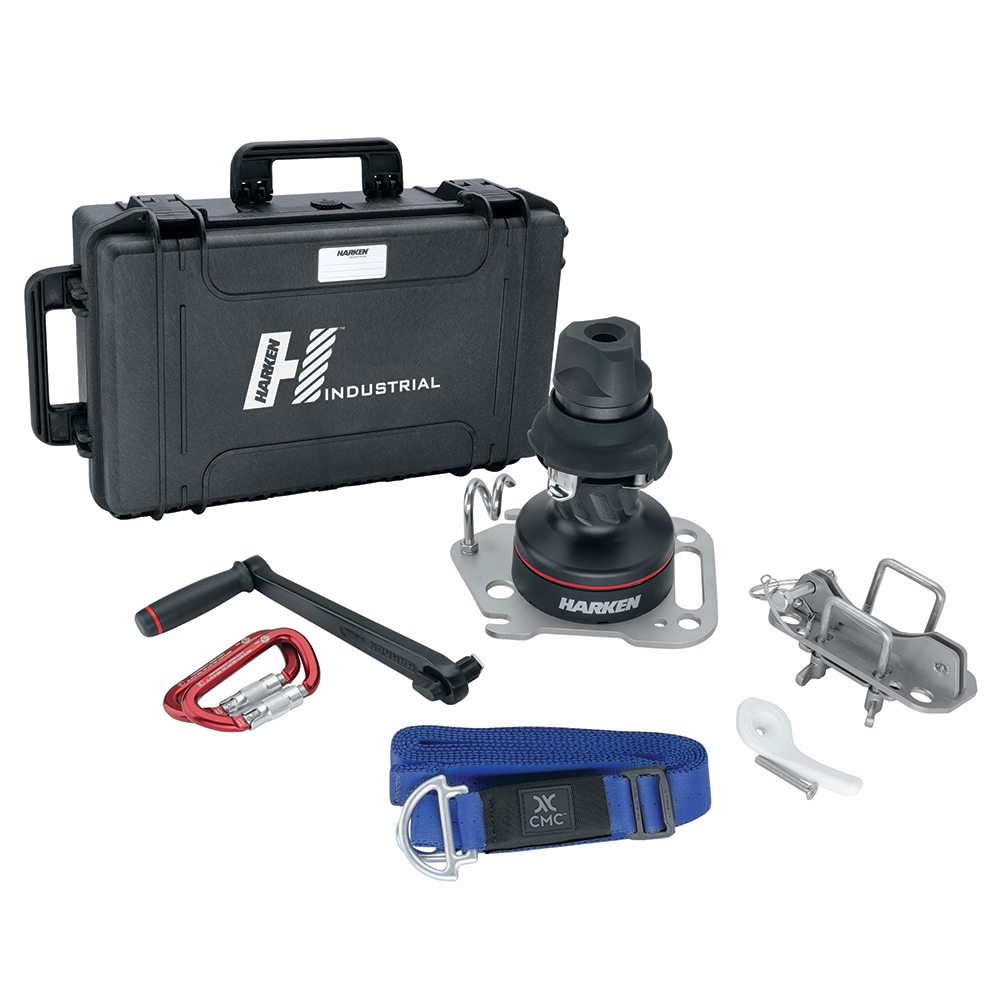

INLH500KIT.US Includes:

  • (1) LokHead Winch
  • (1) Mounting Plate
  • (1) Case
  • (1) Tripod Adapter
  • (1) Handle
  • (1) Whie Lever
  • (1) CMC Variable Anchor strap
  • (2) CMC ProSeries carabiners
    • The LokHead Winch Fire/Rescue Kit meets the certification requirements of the National Fire Protection Association Standard on Life Safety Rope and Equipment for Emergency Services NFPA 2500 (1983), 2022 Edition “T”

Specifications:

  • Rope Diameter: 5/16 - 1/2 in (10 - 12.7 mm)
  • Winch Weight: 9.3 lbs (4.2 kg)
  • Full Kit Weight: 44 lbs (20 kg)
  • Max Rated Load: 1,102.3 lbs (500 kg) - 529 lbs (240 kg) for rescue equipment

C-HK-INLH500

Manufacturer: Harken Industrial
