Harken 12mm "D" Shackle High Resistance

Harken 12mm "D" Shackle High Resistance

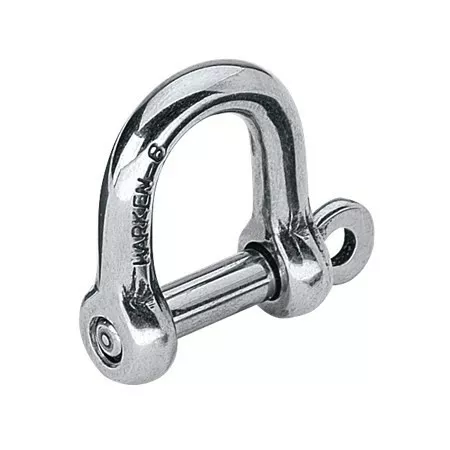

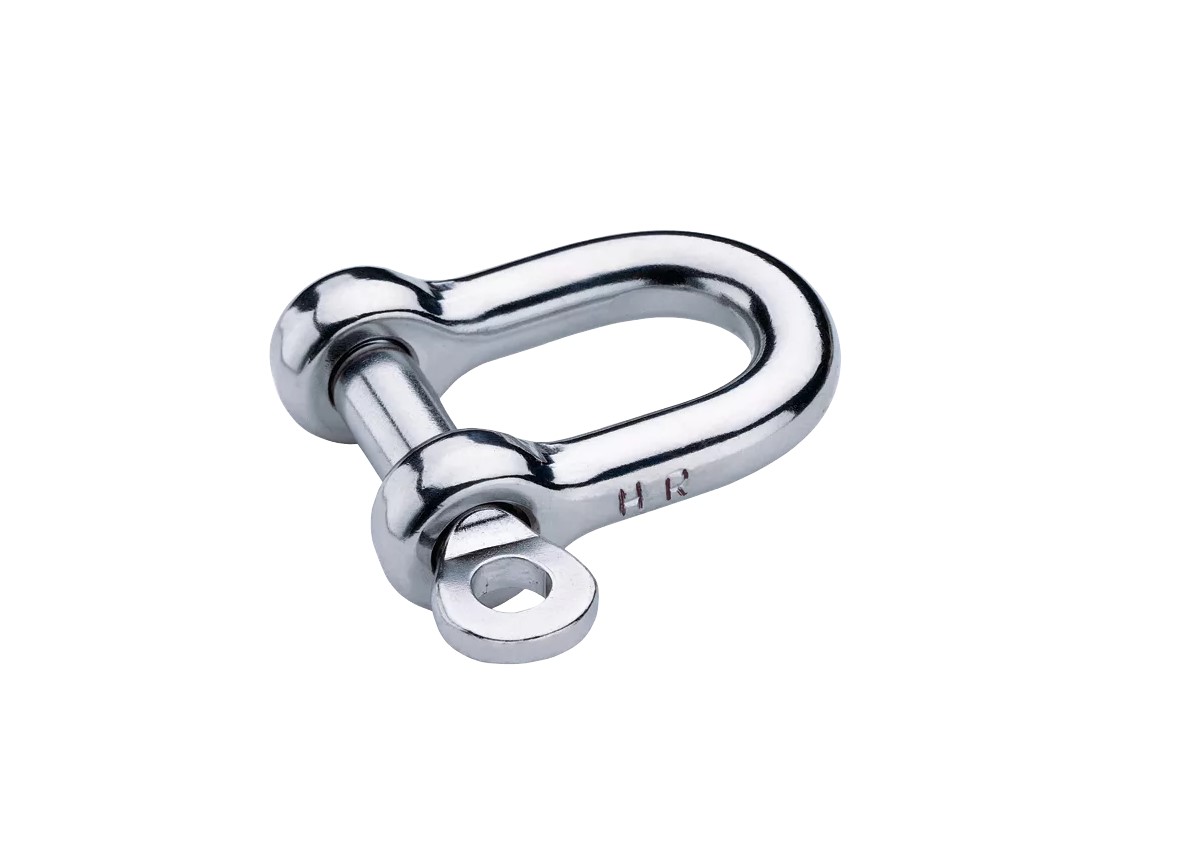

The Harken 12mm High Resistance Shackle is a forged stainless steel shackle. Polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification. This is a replacement shackle for the Harken HighTailer 1500 lb Capstan Hoist Winch or Harken Block for HighTailer Winch.

Features:

• Weight (g) 193 g
• Weight (oz) 6.8 oz
• Maximum working load (kg) 5440 kg
• Maximum working load (lb) 12000 lb
• Breaking load (lb) 24000 lb
• Breaking load (kg) 10880 kg
• A (mm) 44 mm
• A (in) 1 3/4 in
• B (mm) 25 mm
• B (in) 1 in
• Shackle pin Ø (mm) 12 mm
• Shackle pin Ø (in) 1/2 in
