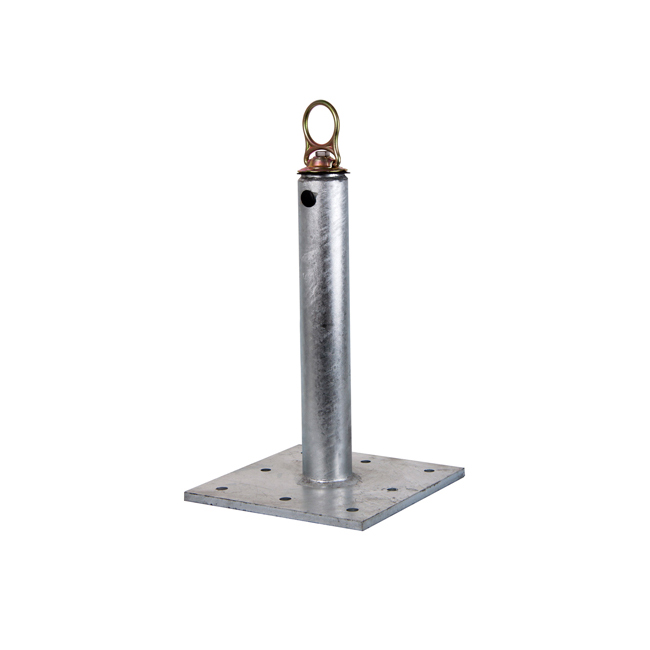

Guardian CB-18 Concrete Roof Anchor with Swivel Option

Multiple Options Available
Please select an option below
FREE SHIPPING OVER $75!

$283.99 to $359.99


Custom *


Guardian CB-18 Concrete Roof Anchor with Swivel Option

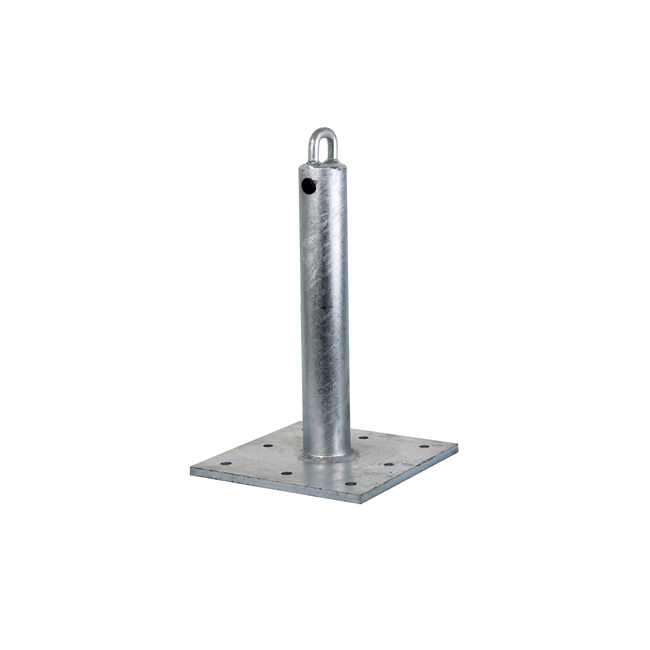

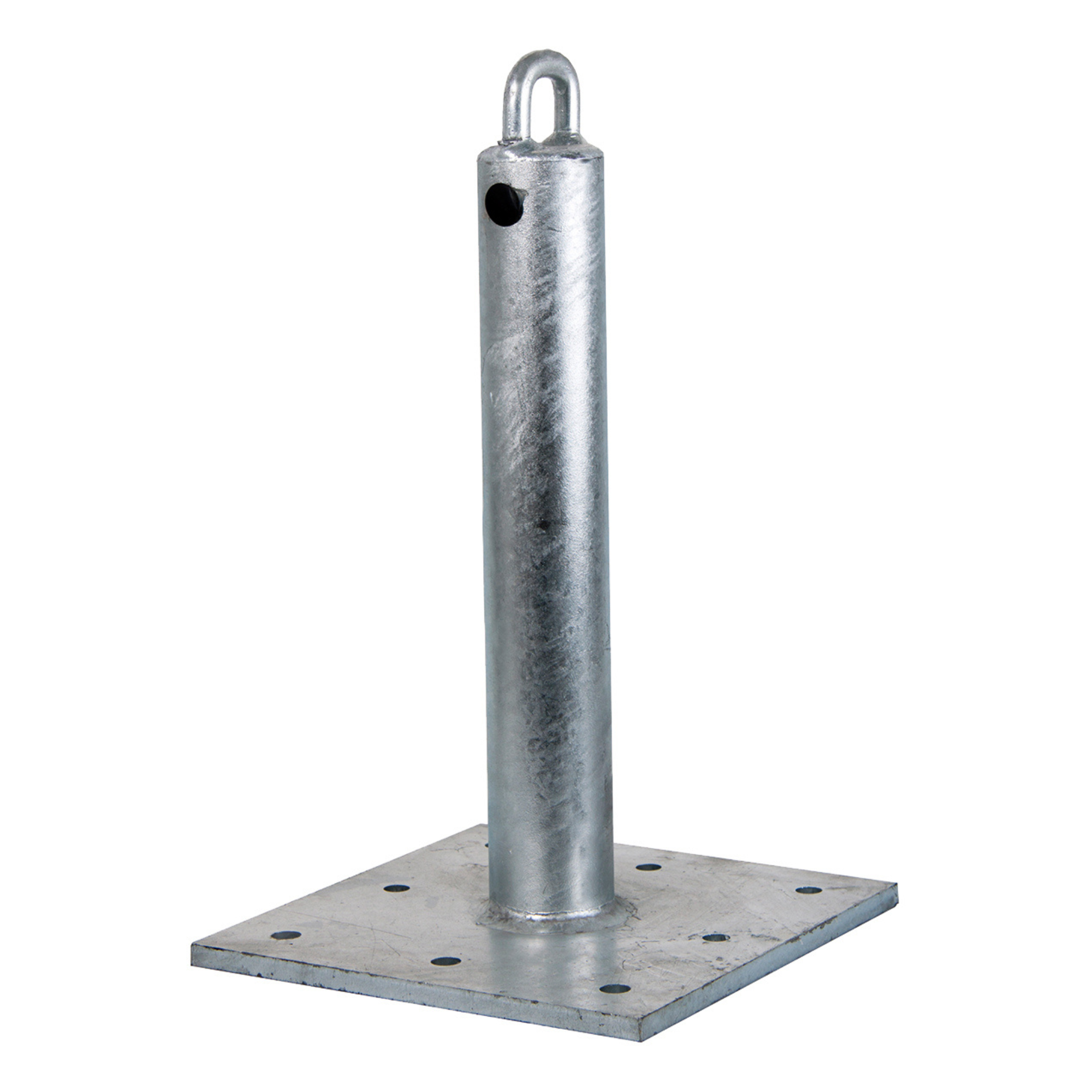

Guardian's CB-18 Roof Anchor is for permanent installation onto concrete. The CB-18 features an 8" anchor post that extends so that it is accessible during and after construction. Use this roof anchor with horizontal lifelines, vertical lifelines, SRLs, and lanyards. The Guardian CB-18 is made from galvanized steel, making it extremely durable.

Requires eight 1/2" x 3" concrete bolts sold separately. (click here)

Features:

  • For use on concrete
  • Durable galvanized finish
  • Great for use with retractable lifelines, vertical lifelines, rope grab units, or horizontal lifeline systems
  • The post extends past roofing substrate to attachment point accessible
  • Round post works with most off-the-shelf flashing kits
  • Installation requires (8) 1/2"x3" concrete bolts (sold separately)
Specifications:
  • Weight: 31 lb
  • Minimum Breaking Strength: 5,000 lbs
  • 1/2" thick base plate
  • Minimum service temperature: -30°F
  • OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.18-17, and ANSI A10.32-12
  • Click Here for more CB-18 information
C-GF-00656
Manufacturer: Guardian Fall Protection
GF-00652
GF-00656
