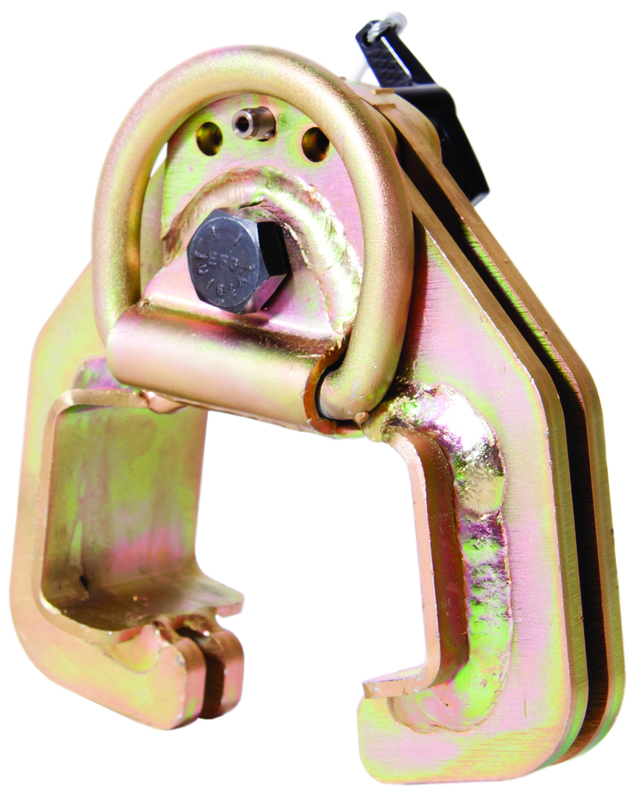

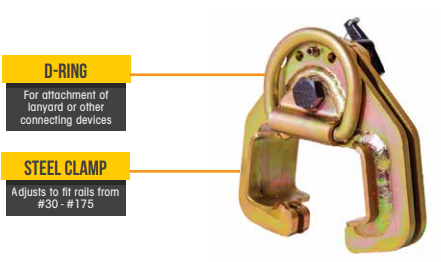

Adjustable anchor for crane or train rails: The Railmaster is a trailing anchorage connector design for railyards or other applications that utilize crane or train rails. It is compatible with rails from #30 to #175 and requires no tools for adjustment. Use with Guardian Big Boss Single Leg Extended Free Fall Lanyard with Steel Snap Hooks.
Applications:
Personal Fall Arrest: Railmasters may be used in Personal Fall Arrest applications to support:
- MAXIMUM 1 Personal Fall Arrest System (PFAS). Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs.
- For part # 00205, maximum free fall is 6’, or up to 12’ if used in combination with equipment explicitly certified for such use.
- Applicable D-rings: Dorsal.
Restraint: Railmasters may be used in Restraint applications.
Restraint systems:
- Prevent workers from reaching the leading edge of a fall hazard.
- Always account for fully deployed length of SRL. Structure must withstand loads applied in the directions permitted by the system of at least 1,000 lbs.
- No free fall is permitted.
- May only be used on surfaces with slopes up to 4/12 (vertical/horizontal).
- Applicable D-rings: Dorsal, Chest, Side, & Shoulder.
Specifications:
STANDARDS:
- OSHA 1926 Subpart M & 1910
- ANSI Z359.18 -17 & A10.32 -12
- Type A Anchorage Connector
MATERIALS:
- Zinc-plated Steel, Galvanized Steel, Polyester, & Nylon
NOTES:
- Minimum service temperature: -30°F
- Part #00205 can be used with various lanyards/SRLs.
- D-Ring always faces direction of desired travel
WORKER CAPACITY:
- 130 - 310 lbs., or up to 420 lbs. if used in combination with equipment explicity certified for such use
PERFORMANCE:
- Maximum Users: 1
- 5,000 lb. MBS (Minimum Breaking Strength)
