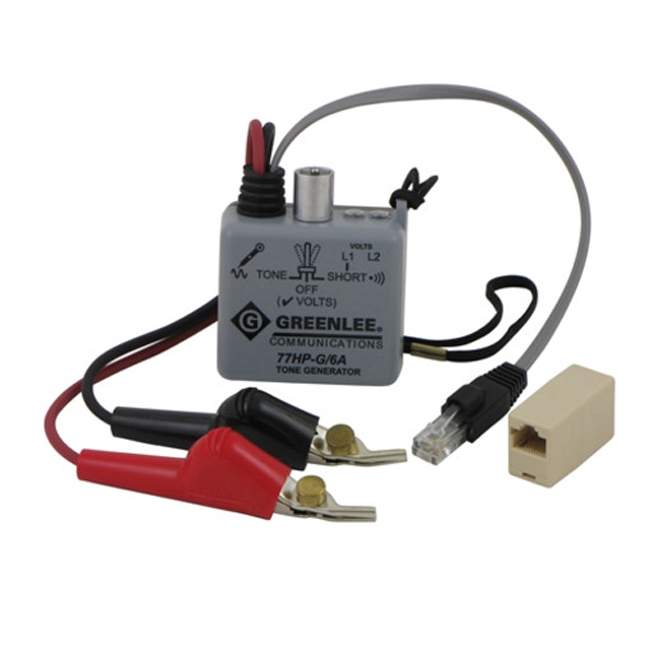

Greenlee Tempo 77HP-G/6A Tone Generator High Power with ABN Clips

Features:

• Continuity Testing & Polarity Testing
• Selectable Warble Tone & Talk Battery Supply
• Selectable Warble Tone & Three-color LED (identifies AC ring voltage)
• Two-line Modular Test Lead
• Weather-resistant
• Design Battery Operated

Specifications:

• Output Power (into 600?): +10 dBm
• Resistive Short Visual Indication: <10 k
• Resistive Short Audio Indication: <200

The Greenlee Tempo 77HP-G/6A Tone Generator High Power with ABN Clips is intended to identify the conductor within a bundle, at a cross-connect point, or at the remote end. These testers are housed in high-impact plastic cases, and each is powered by one 9 volt battery. Standard test leads include red and black rubber insulated test clips and a snag-proof, four-conductor modular cord and plug. The test sets are compatible with all common Central Office Switching Systems, and the output tone is isolated from DC voltages.
