Greenlee Hook-Type Sheave

For more than 140 years, Greenlee has provided quality tools to the electrical and woodworking industries. Greenlee has made a commitment to providing top technology that is necessary to meet your needs. The Greenlee Hook-type Sheave cable pulley allows for an easier application of pulling items from the ground by threading the rope over the top.

• Strong, welded steel frames
• Forged steel closure-type hooks with 1 IN (25.4 mm) opening
• 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings
• Select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
• Maximum rated capacity: 4,000 lbs. (17.7 kN)

Available Options (sizes are the actual diameter of the sheave):

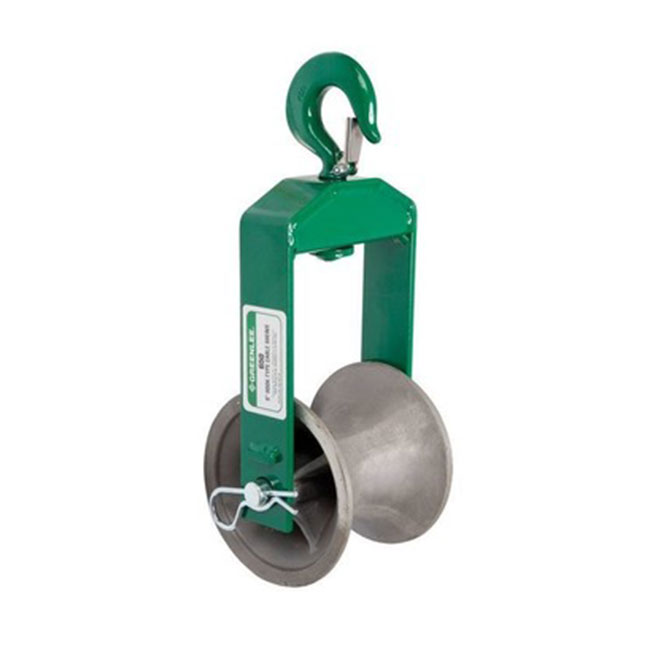

• 6" (332-650)

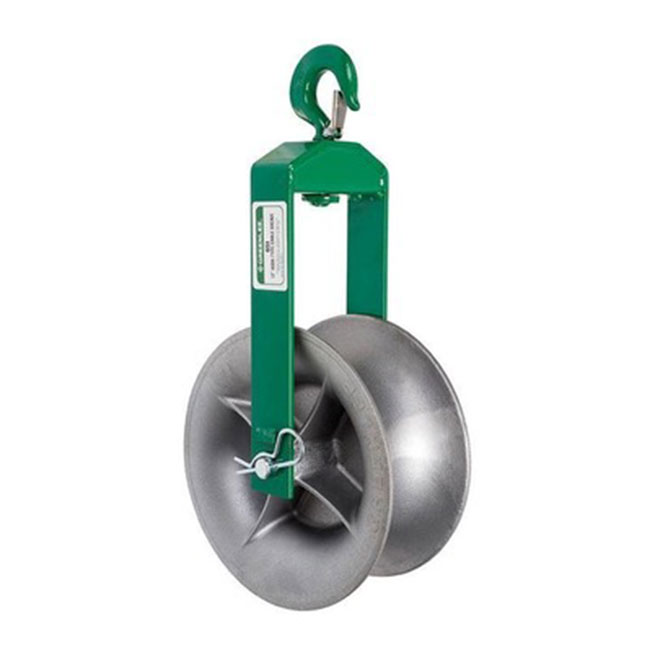

• 12" (332-651)

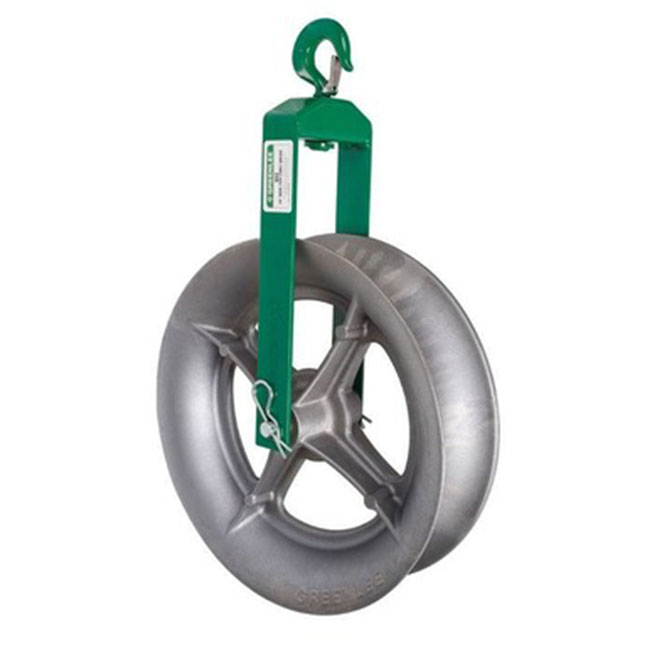

• 18" (332-652)

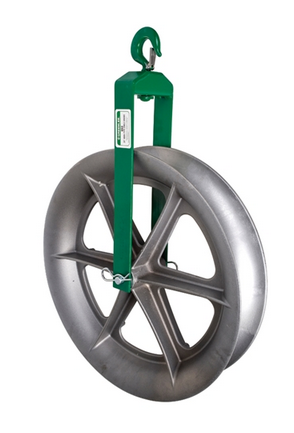

• 24" (332-653)
