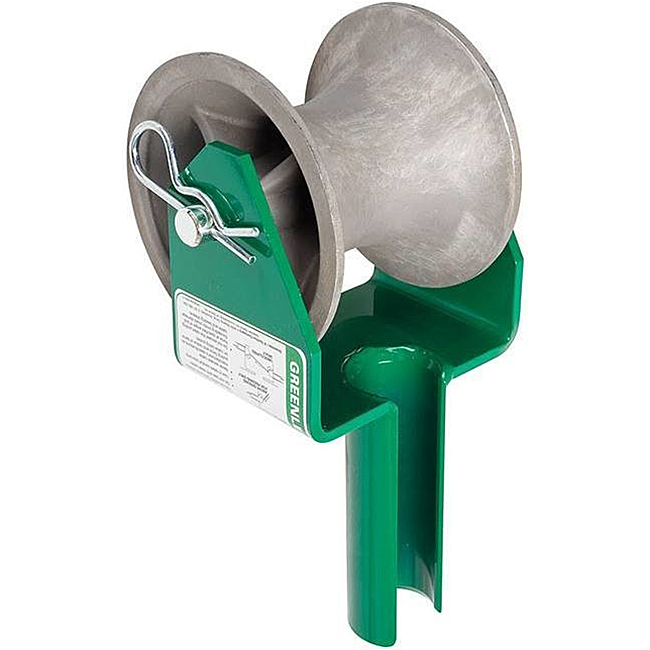

Greenlee Feeding Sheave for 2 Inch Conduit

Greenlee Feeding Sheave for 2 Inch Conduit

Features:

• Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave
• 5 Inch wide aluminum alloy sheave with self-Lubricating bearings
• Split tube for easy removal after cable is installed

Specifications:

• Keyway:   None
• Outside Diameter:   6.00"
• Pitch Diameter:   Between 3.00" and 6.00"
• Material:   Feeding Sheave for 2" conduit
• Includes:   25160 UPC 25160 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave
• Standard:   Feeding Sheave for 2" conduit
• Type:   Sheave Assembly
• Application:   Electrical Cable Feeding
• Capacity:   1750.000 LB (7.700 KN) At 15 DEG, 900.000 LB (4.000 KN) At 30 DEG, 650.000 LB (2.800 KN) At 45 DEG, 500.000 LB (2.200 KN) At 60 DEG, 450.000 LB (2.000 KN) At 75 DEG, 450.000 LB (2.000 KN) At 90 DEG
