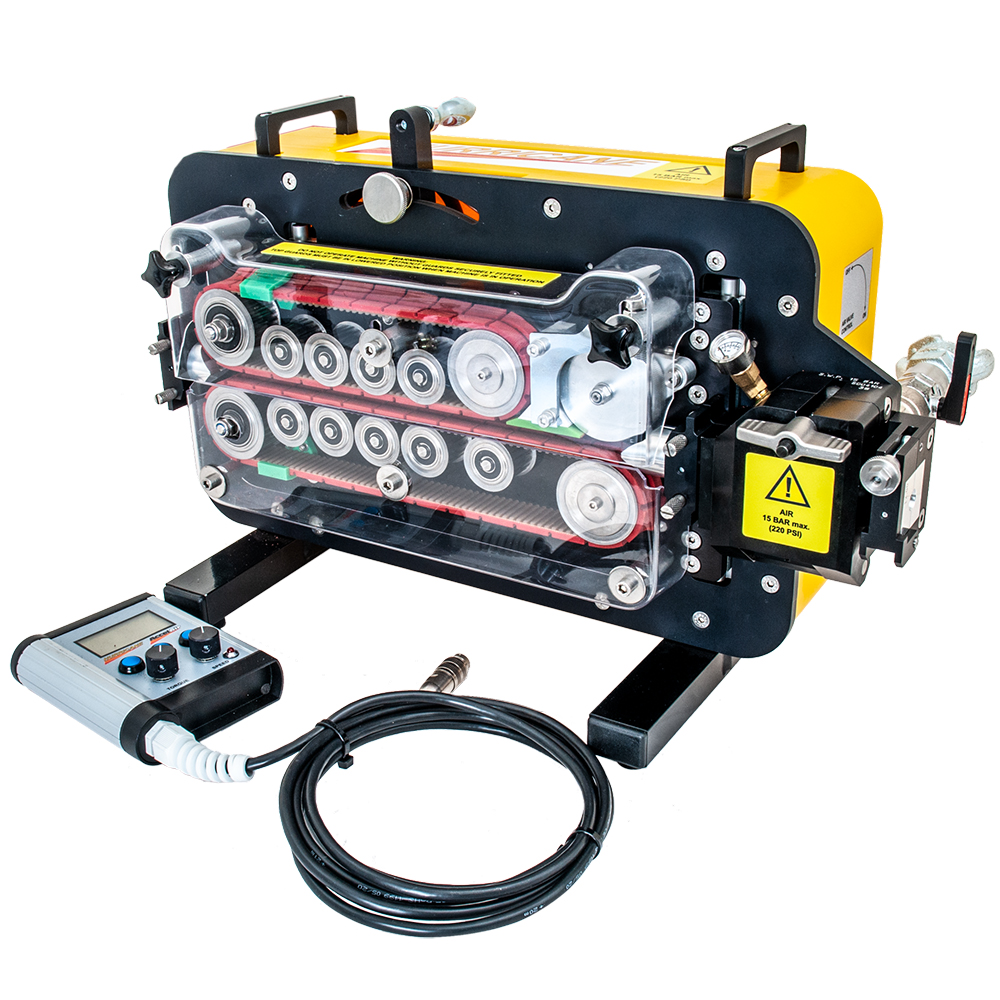

GMP Hurricane Max Fiber Optic Cable Blowing Machine

The Hurricane has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed. Single-person operation with safe, easy-to-operate ergonomic controls combines low maintenance and high reliability to form the machine’s key features.

Features:

• Max Kit includes Cable Guide Kits, Cable Seal Kits, Drive Belts, Duct Clamp and Seal Kits
• Dual Digital servo motor drive system
• Digital cable speed and length monitoring
• Advanced data logging system measures speed, force, distance, GPS location and environmental conditions
• Auto stop facility when air stone fitted
• Forward and reverse
• Integral air valve and pressure gauge
• Installs an Industry-leading range of cables with one machine
• Easy cable threading
• Automatic Cable centralizing
• Polycarbonate safety guarding
• Synchronous high grip profiled compliant drive belts
• Lightweight and compact
• Vertical design with ergonomic controls for ease of operation
• Low maintenance
• Variable torque and speed controls via remote
• Low noise levels
• Single person operation
• Travel case and tool kit

Specifications:

• Cable Size: 2.5-14mm
• Duct Size: 5-25mm
• Pushing Force: 90 lbs
• Advanced Data Logging

Operating Capacities:

• Pushing Force: 0-95 lbs. (0-422N)
• Pushing Speed: 0-279 ft/min (85m/min)
• Cable Size: .10-.55" (2.5-14mm) O.D.

Dimensions:

• Weight: 53 lbs. (24kg)
• Weight with case and power supply: 113.5 lbs. (51.5kg)
• Dimensions (ht x length x width): 13 7/8" x 21 7/8" x 12" (352mm x 556mm x 305mm)

Pneumatic System:

• 90-264VAC 50/60 Hz
• Operating Pressure: 220 psi (15 bar) Max
• Flow: The air supply should be filtered, cooled, and dry

Power Requirements:

• 90-264VAC 50/60 Hz

























Max Kit Includes:

Tornado Cable Blowing Machine

Hydraulic Power Pack

All sets of duct clamps for duct sizes available

All sets of duct seals for duct sizes available

All sets of Cable Collets and Guides for cable sizes available

All sets of Cable Seals

All cable seal plugs

Toolkit

Manual

Operating Capacities

Pushing Force: 0-220 lbs. (0-100kg)

Pushing Speed: 0-300 ft/min (0-90m/min)

Cable Size: .24-1.34" (6-34mm) O.D.

Sub – Duct Size: 1/2-2" SDR (12-63mm) O.D.



Pneumatic System:

Air Hose Bore (min): 1 1/4" (32mm)

Operating Pressure: 175 psi (12 bar)

Flow: The air supply should be filtered, cooled and dry

For Ducts with an Inner Diameter of: Minimum Flow Acceptable

@175 psi (12 bar)

0 up to 1" (0 up to 25mm) : 150 CFM (4m³/min)

1 up to 1 1/8" (26 up to 30mm) : 185 CFM (5m³/min)

1 1/8 up to 1 3/8" (31 up to 35mm) : 250 CFM (7m³/min)

1 3/8 up to 1 5/8" (36 up to 40mm) : 375 CFM (10m³/min)

1 5/8 up to 1 3/4" (41 up to 44mm) : 450 CFM (12m³/min)

1 3/4 up to 2" (44 up to 51mm): 700 CFM 19m³/min
