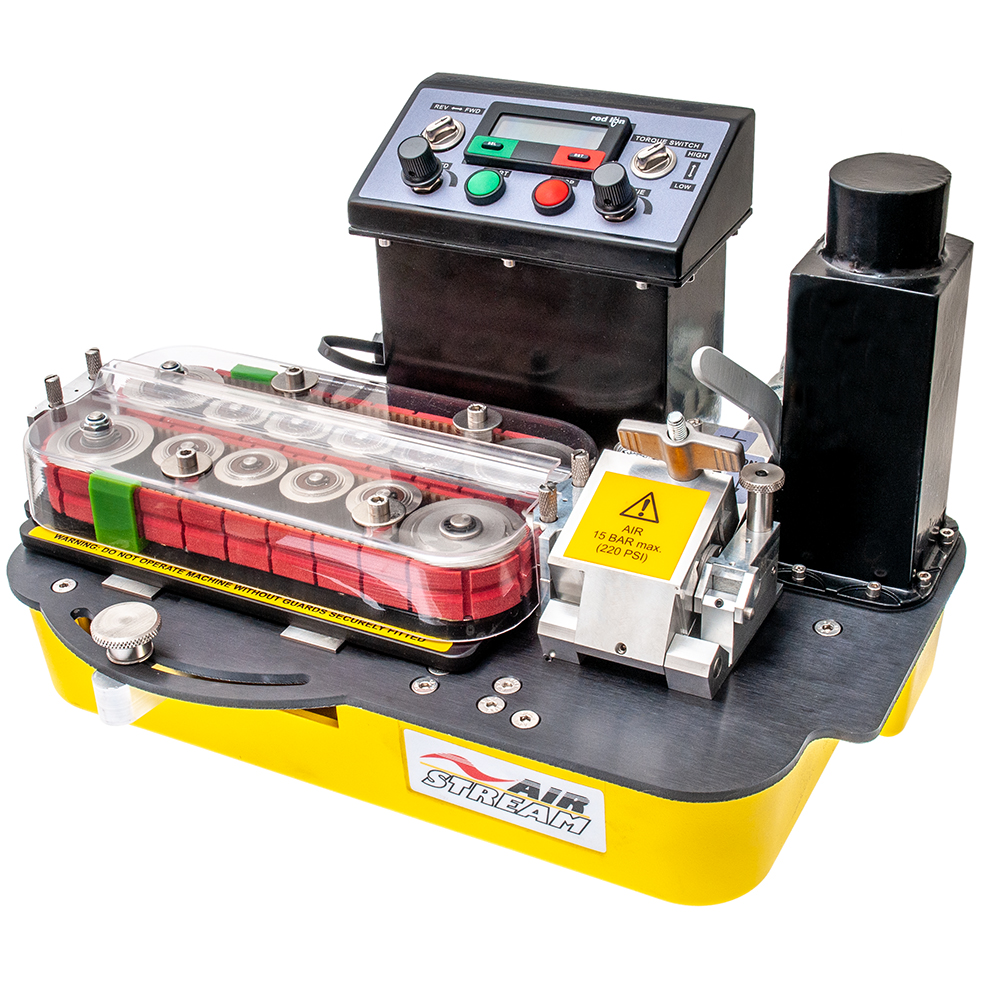

GMP AirStream Max Fiber Optic Cable Blowing Machine
The Air Stream has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed. Single person operation with safe, easy to operate ergonomic controls combines with low maintenance and high reliability to form the machine’s key features. The Air Stream is adjustable to suit a wide range of cable diameters 2.5 – 11mm.
Features:
- Max Kit includes Tube Collet &?Clamp Assemblies (5mm-18mm), Cable Guides (2.5mm - 11mm), Cable Seals (2.5mm - 11mm), Cable Seal Plug, and Option Belts (4mm - 16mm Cable)
- Automatic Cable centralizing Auto stop facility when air stone fitted
- Synchronous high grip profiled compliant drive belts Integral air valve and pressure gauge
- Tabletop design with ergonomic controls for ease of operation Easy cable threading
- Forward and reverse Variable torque and speed controls Polycarbonate safety guarding
- Digital servo motor drive system Lightweight and compact
- Single person operation Low maintenance
- Digital cable speed and length monitoring Travel case
- Flat Drop compatable
Specifications:
- Cable Diameter: 2.5 to 11mm
- Tube Size (Outside Dia): 5 to 18mm
- Cable Speed (Adjustable): 0-260 ft/min (0-80m/min)
- Air Pressure: 145-215 psi (10-15 Bar)
- Power Requirement: 110/220 Volt AC
- Width: 11.8 in. (300mm)
- Length: 18 in. (460mm)
- Height: 10.6 in. (270mm)
