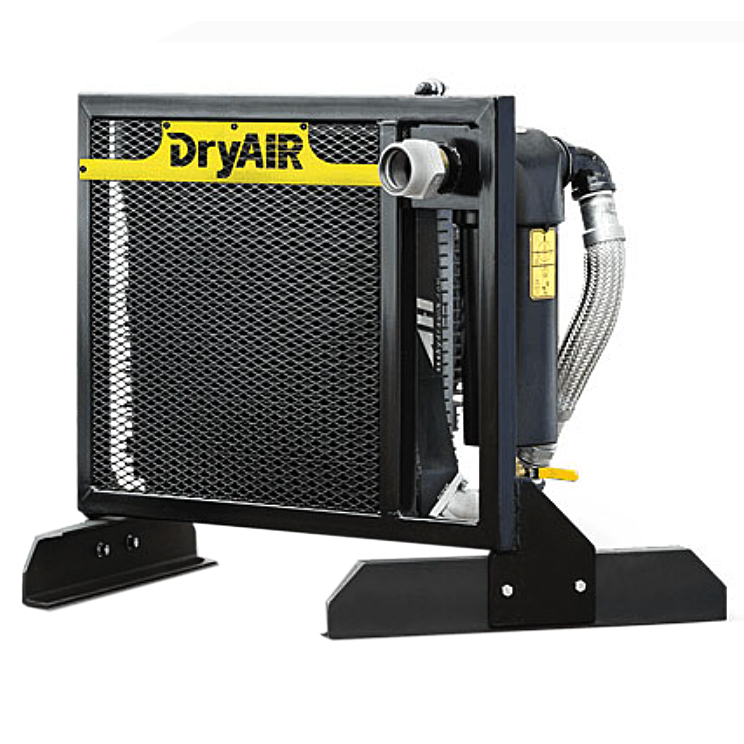

GMP 400 CFM Compressor Aftercooler

The GMP 400CFM Compressor Aftercooler has been designed to cool compressed air and remove water droplets prior to entering a GMP Cable Blowing Machine. Features a heavy-duty moisture separator with manual drain for removal of trapped moisture and condensed oil. Completely self-contained and packaged in a construction skid with a lifting bail and expanded metal heat exchanger guard. Boss outlet fitting (Boss 28) and inlet fittings (1-1/2 in. Pipe) are standard. DC fan motor is run from the compressor battery and automatically starts when the system is pressurized. 13-foot power cord with alligator clips to connect to the compressor starting battery. Adaptable stand-alone or tongue-mount design. Compact installation does not interfere with vehicle tailgates, etc. Cools air to within 20° of ambient temperature to optimize moisture removal.

Features:

• Heavy-duty moisture separator with manual drain
• Completely self-contained and packaged in a construction skid

Specifications:

• Length:    24 in. (610 mm)
• Width:    44 in. (1118 mm)
• Height:    30 in. (762 mm)
• Weight:     170 lbs. (77 kg)
• Fan Power Requirments:    9 A, 24 VDC or 18 A, 12 VDC
• Max Working Pressure:    200 psi (13.9 bar)
• Max Air Compressor Flow Rate:    400 cfm (11 M³/Min)
• Air Hose Connections:    Output: Boss 28, Input: 1-1/2 in. Pipe
