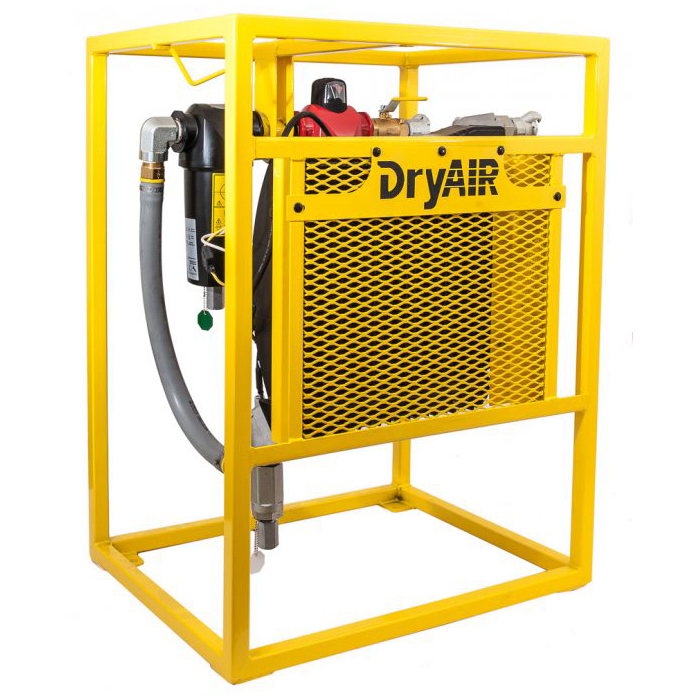

GMP 250 CFM Compressor Aftercooler

The GMP 250 CFM Compressor Aftercooler has been designed to cool compressed air and remove water droplets prior to entering a GMP Cable Blowing Machine. Features a heavy-duty moisture separator and coalescing filter to trap moisture and condensed oil. Manual drain valves provide removal of captured fluids. Chicago fittings are provided on the inlet and outlet connections for maximum versatility in the field. Includes a 1-micron coalescing filter with manual drain. DC fan motor is run from the compressor battery and automatically starts when the system is pressurized. 13-foot power cord with alligator clips to connect to the compressor starting battery

Features:

• Completely self-contained
• Portable design for varied applications and mobility
• Cools air to within 20° of ambient temperature to optimize moisture removal

Specifications:

• Length:     19 in. (483 mm)
• Width:       24 in. (610 mm)
• Height:      32 in. (813 mm)
• Weight:     70 lbs. (32kg)
• Fan Power Requirments:    17.5 A, 12 VDC
• Max Working Pressure:    200 psi (13.9 bar)
• Max Air Compressor Flow Rate:    250 cfm (7 M³/Min)
• Air Hose Connections:    2 Lug Chicago Coupling
