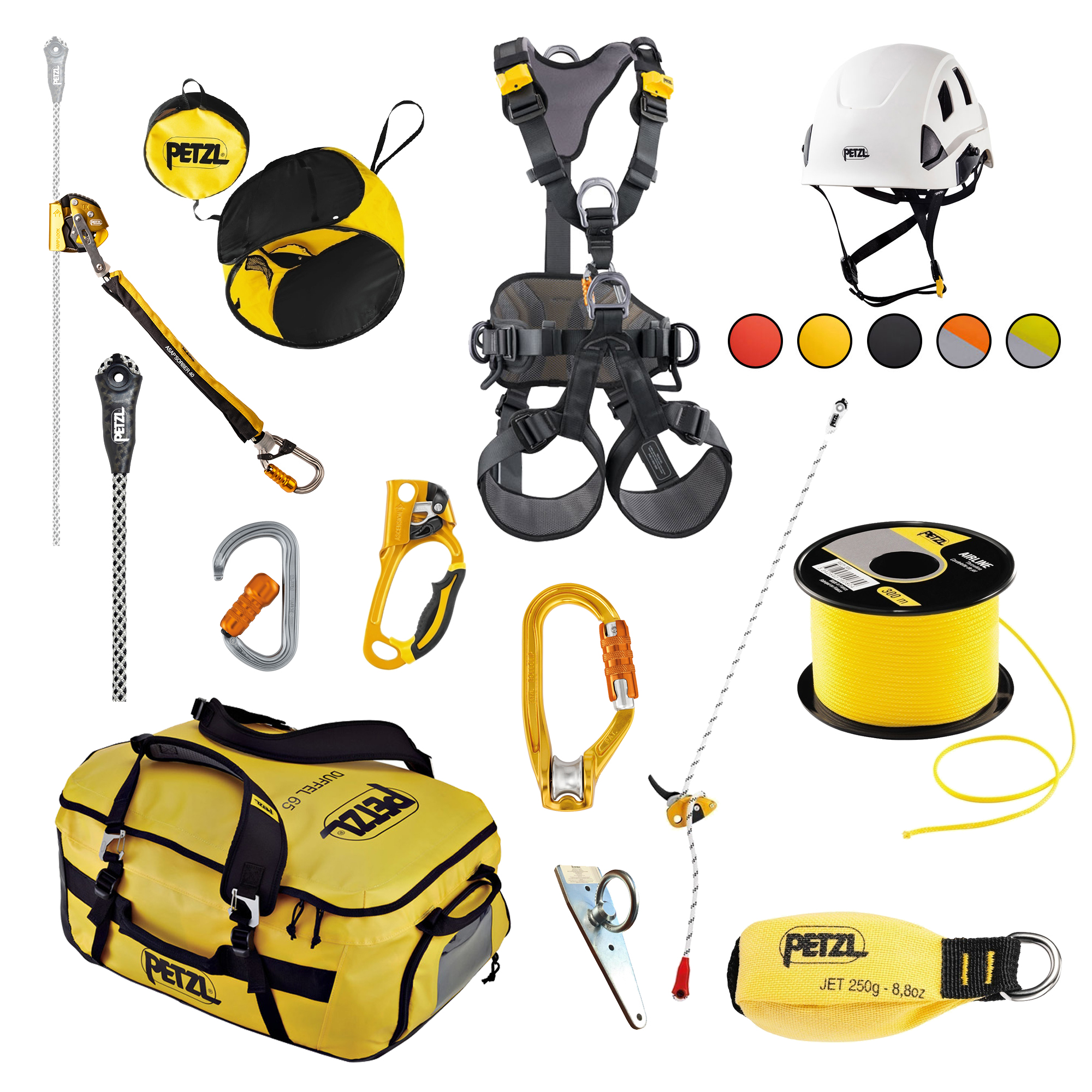

The GME x Petzl Solar Technician Fall Protection and Work Positioning Kit is for use during solar array installation when working on flat, low, and steep-angled rooftops. The ASAP LOCK mobile fall arrester moves freely along the RAY 11 lifeline without any manual intervention and follows the user in all his/her movements. In the event of a shock load or sudden acceleration, the fall arrester locks on the rope and stops the user, even if grabbed by the worker during a slide or fall. The integrated locking function allows the user to immobilize the device in order to reduce the potential fall distance. The connection arm makes the system drop-resistant. On steep rooftops, the GRILLON is used on a separate anchor point for work positioning. OSHA compliant & ANSI certified.
Kit Includes:

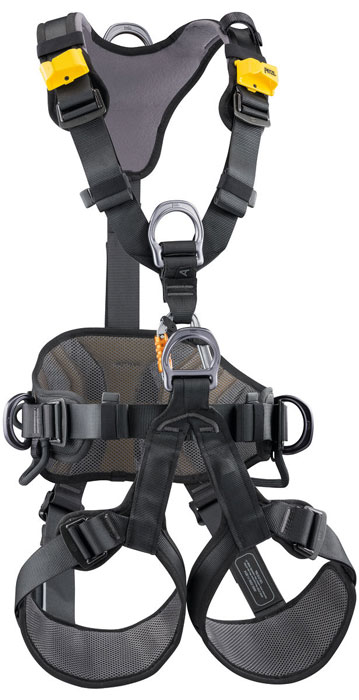

- (1) Petzl AVAO BOD U Harness - Certification(s): ANSI Z359.11, NFPA 1983 class III, CSA Z259.10, CE EN 361, CE EN 358, CE EN 813

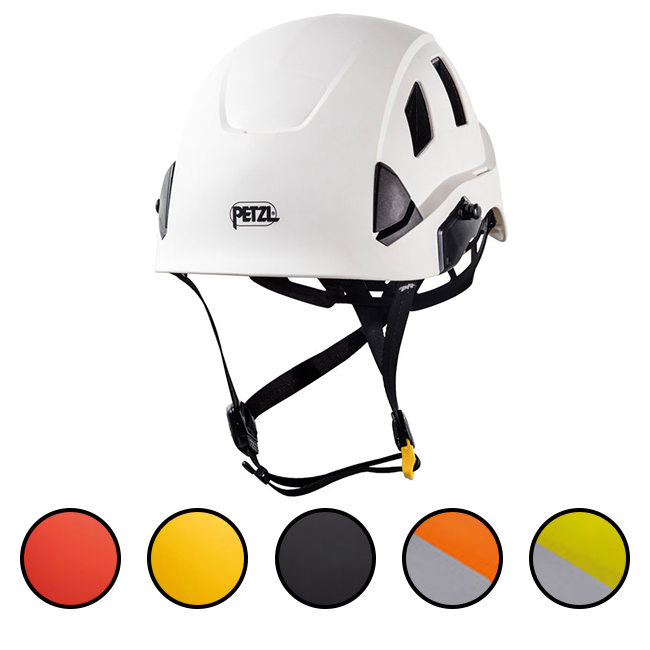

- (1) Petzl STRATO Vented Helmet - Certification(s): CE, ANSI Z89.1 Type I Class C, EAC, EN 12492, and meets all requirements of the EN 397 standard, except the requirement for internal vertical clearance.

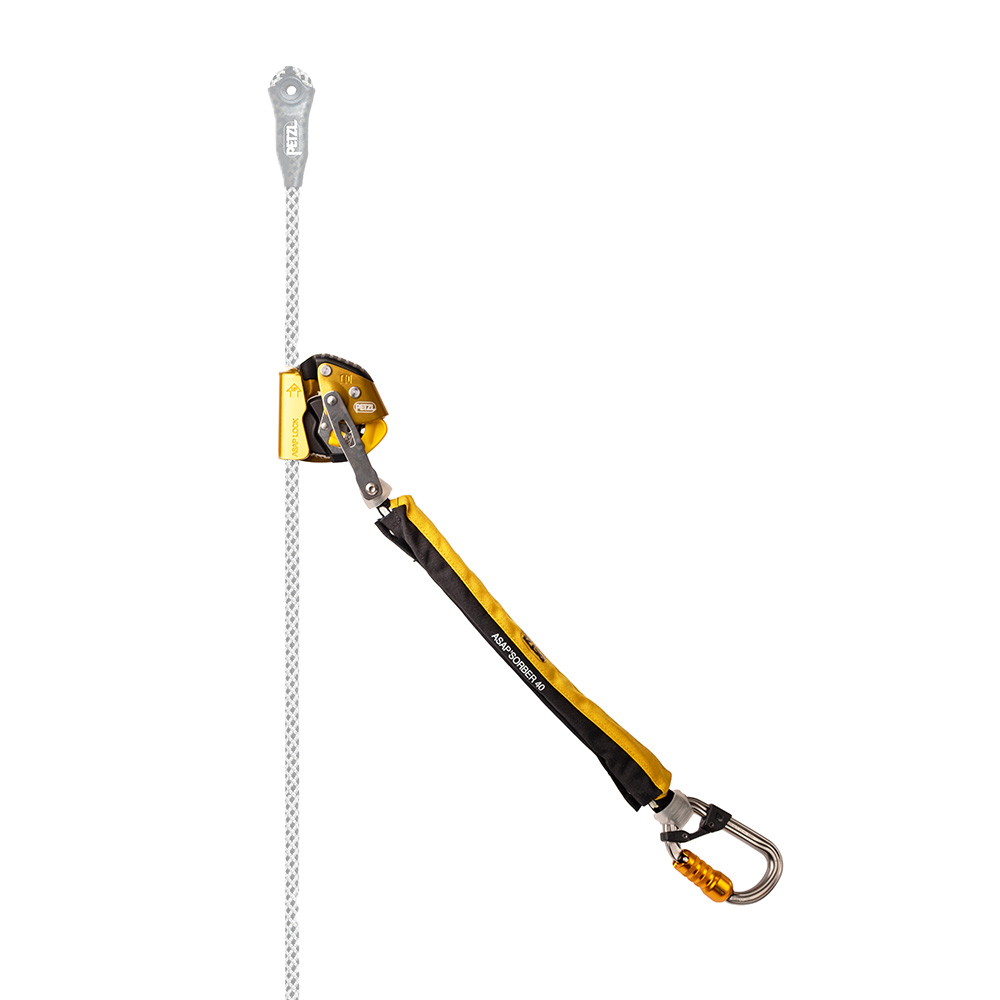

- (1) Petzl ASAP LOCK Kit (20 cm) - Certification(s): ANSI Z359.12, ANSI Z359.13, ANSI Z359.15, CE EN 355, CSA Z259.12, EAC, and NFPA 1983 Technical Use

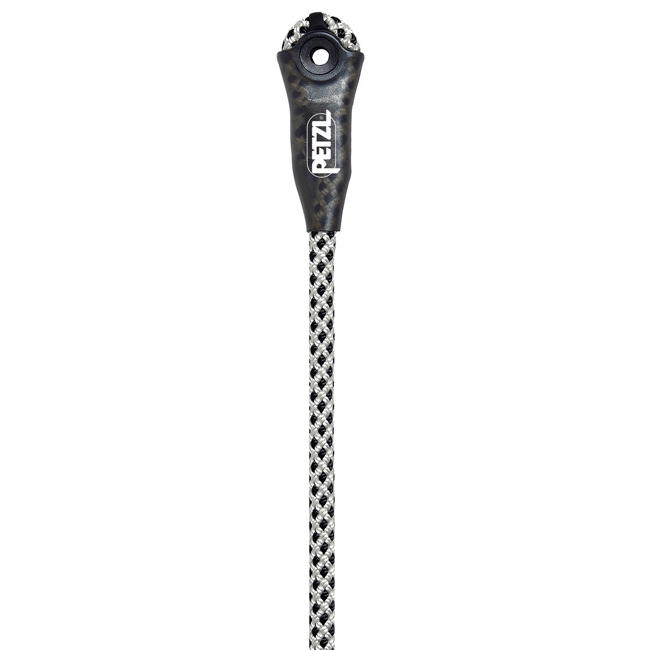

- (1) Petzl RAY 11 mm Kernmantle Rope (50 ft) - Certification(s): ANSI Z359.15

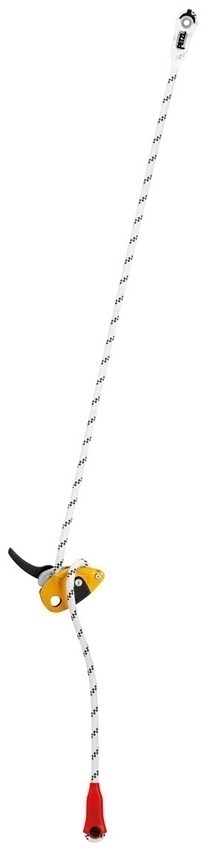

- (1) Petzl GRILLON Adjustable Positioning Lanyard (Yellow / 10 meters) - Certifications(s): ANSI Z359.3, CSA Z259.11, CE EN 358, CE EN 12841, EAC

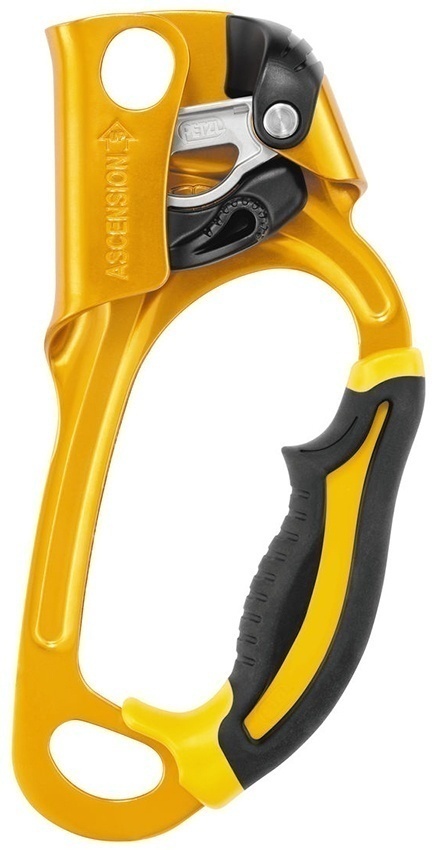

- (1) Petzl ASCENSION Handled Rope Clamp/Ascender Grab (Yellow) - Available in Left-Handed and Right-Handed configurations - Certification(s): CE EN 567, NFPA 1983 L, CE EN 12841 type B
- (1) GME Supply Premium Gear Bag - 27.5 in. L x 12 in. W x 15.5 in. H
- (1) Petzl ROLLCLIP Pulley Carabiner (No-Lock) - Certification(s): CE EN 12275, EN 12278, EAC
- (4) Petzl Bm'D Asymmetrical Aluminum Carabiners (Gray) - Certification(s): CE EN 362, EAC, ANSI Z359.12, NFPA 1983 Technical Use, CSA Z259.12

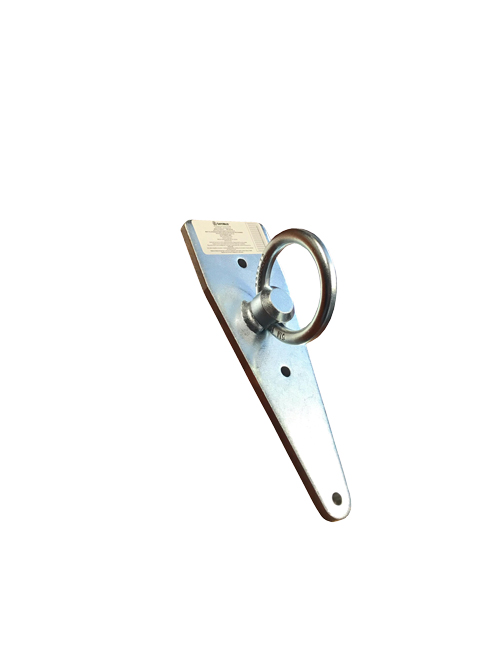

- (1) Safewaze Reusable Roof Ring Anchor - Certification(s): OSHA 1926.502, ANSI Z359.1, ANSI A10.32
Available Upgrades:
- Petzl AVAO BOD Fast U Harness - Certification(s): ANSI Z359.11, NFPA 1983 class III, CSA Z259.10, CE EN 361, CE EN 358, CE EN 813
- Petzl STRATO Vented Helmet (Hi-Vis)
- Petzl ASAP LOCK Kit (40 cm)
- Petzl RAY 11 mm Kernmantle Rope (75 ft, 100 ft, and 200 ft)
- Petzl GRILLON Adjustable Positioning Lanyard (15 meters and 20 meters)

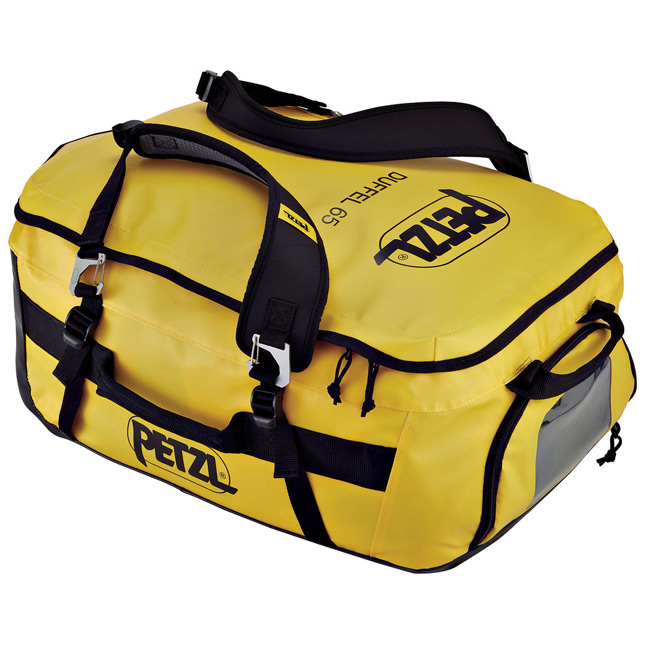

- Petzl DUFFEL 65 Bag (Yellow or Black)
Additional Add-Ons:

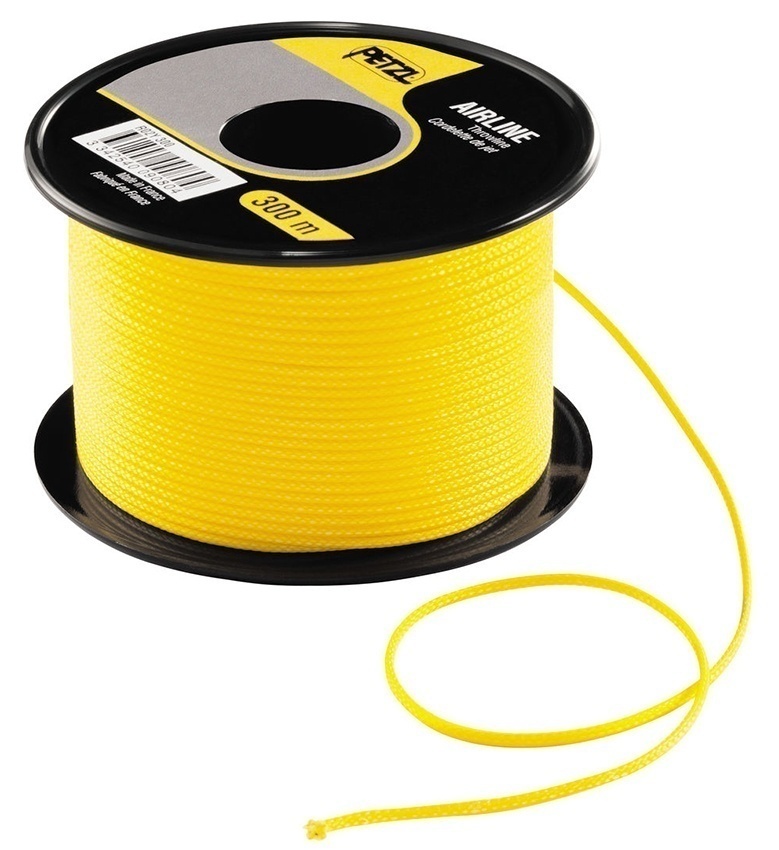

- Petzl Airline Throw-Line (60 m/200 ft)

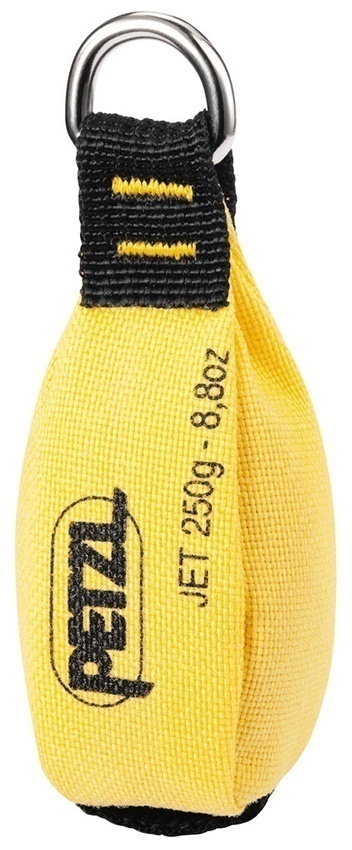

- Petzl Jet Throw-Bag (250 g)

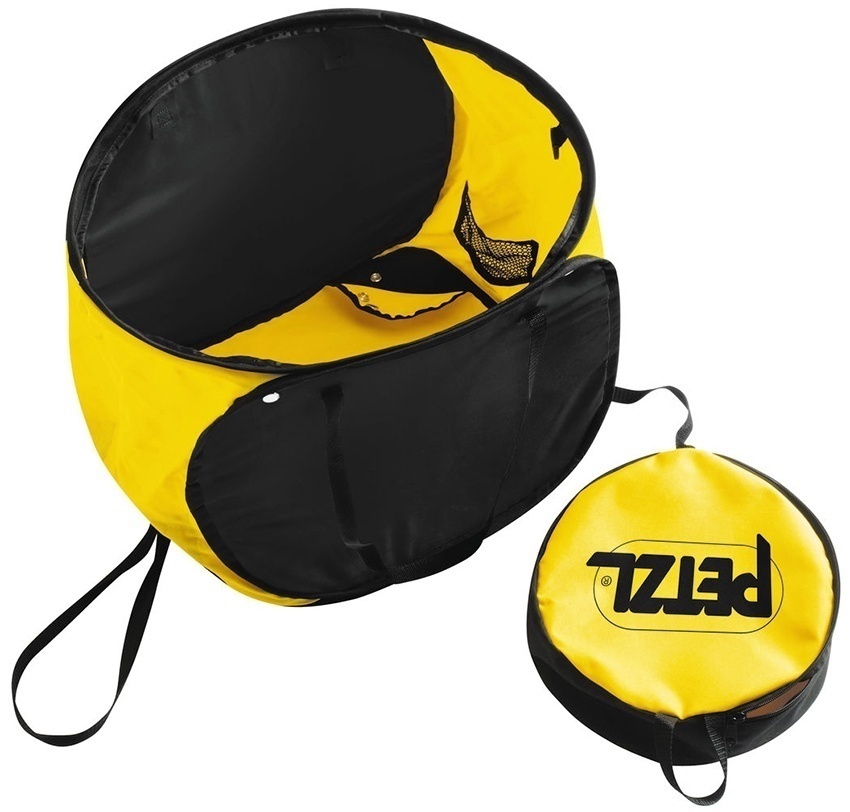

- Petzl Eclipse Storage for Throw-Line
