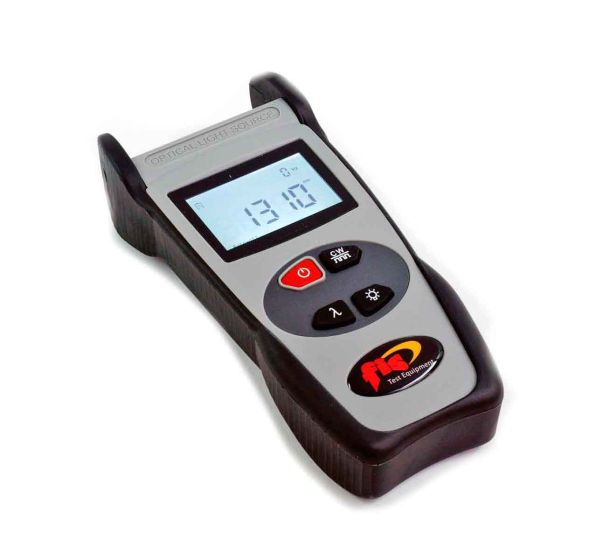

FIS Triwave 1310/1550/1625 Optical Fiber Laser Light Source
The FIS tri wavelength single mode light source, when used together with the power meter, provides accurate test solutions for fiber optic networks.
What's in the Box:
- (1) Light Source
- ST, FC, and SC interchangeable adapters
- (1) User Manual
- (3) 1.5V AA Batteries
- Adapter port available with APC or UPC interface
- (1) Soft Carrying Case
Features:
- Tone generation, 270Hz, 1KHz, 2KHz
- The output power value is shown on the LCD display
- Intelligent backlight control (light intensity can be adjusted according to ambient light, which greatly reduces power consumption)
- AA alkaline for power supply
- Low battery indication
- Interchangeable adapters allow flexibility with reference cords
Specifications:
- Operating wavelength(nm): 1310/1490/1550 or 1310/1550/1625
- Applicable fiber: Singlemode
- Laser type: FP-LD
- Minimum Output Power(dBm): -7
- Stability(dB, 15min, 20°C): ±0.1
- Stability(dB, 30min, 20°C): ±0.05
- Modulation(Hz): CW, 270, 1K, 2K
- Fiber Port: UPC or APC available
- Alkaline Battery: 3XAA, 1.5V
- Battery Operating time(h): 45
- Operation Temperature(°C): -10~+60
- Storage Temperature(°C): -25~+70
- Outline size: 7.9” x 3.5” x 1”
- Weight: 10 Ounces
