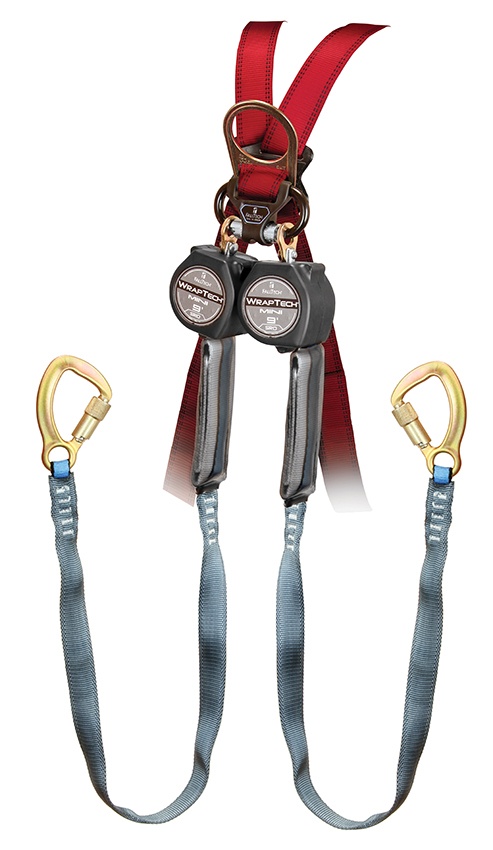

FallTech 9 Foot WrapTech Mini Twin Leg SRD
The FallTech WrapTech Mini Twin-Leg SRD is for 100% tie-off and features a swivel eye carabiner with alignment clip and 5k tie-back carabiner. This SRD accommodates attachment from overhead to 5 feet below the dorsal D-ring and has an anchorage capacity of up to 11 feet. The abrasion resistant jacketed tie-off leg provides longer life and the carabiner has 5,000 lbs of gate strength. This SRD is class B and meets OSHA and ANSI standards.
Features:
- Twin-leg SRD for 100% tie-off
- 9 foot working length
- 3 foot abrasion resistant jacketed tie-back leg
- Compact and impact resistant nylon housing
- Shock absorber provides visual fall event indication
- Swivel eye to reduce twisting
- 5k Tie-back carabiner on leg end
- Carabiner with alignment clip on housing end
Specifications:
- Weight: 5 lbs
- Webbing: 100% Dyneema
- Energy Absorber: Polyester
- Swivel Eye: Alloy Steel, 5/8 inch hole diameter
- Spring: Rolled Carbon Steel
- SRD Housing: Nylon 6/6
- Main Shaft: Alloy steel
- Pawls: Stainless steel
- Connectors: Alloy Steel
- Tensile Strength: Min. 3,000 lbs tensile strength
- Capacity: 310 lbs
- Max Arrest Distance: 54 inches
- Average Arrest Force: Less than 900 lbs.
- Max Arrest Force: 1,800 lbs
- Class of SRD: Class B
- Connectors: 3,600 lb min. gate strength
- OSHA: CFR1926.502 and CFR1910.66
- ANSI: ANSI Z359.14-2014
