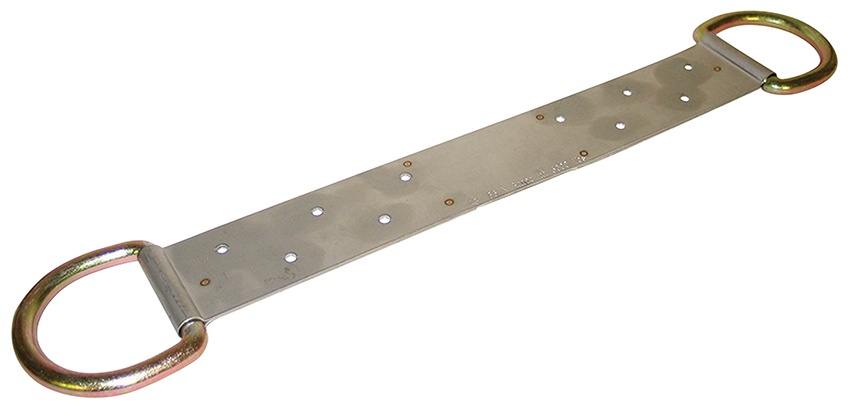

FallTech Permanent Roof Anchor with 2 D-Rings

The FallTech Permanent Roof Anchor has 2 alloy steel D-rings. This permanent roof anchor has a stainless steel body and fastens under shingles, leaving the D-rings exposed for attachment. The width of the anchor is 17 inches including the D-rings and the nailing surface is 12 inches. This anchor conforms to roof peaks of 1/12 or greater and meets the requirements of OSHA 1926 and ANSI Z359.

**Nails are not included with this anchor.

Features:

• Double D-ring
• For permanent placement under ridge caps.
• Conforms to roof peaks of 1/12 or greater.
• Mounts with 3-1/2 in. 16d VC sinkers.
• Stainless steel strap with alloy steel D-rings.

Specifications:

• Weight: 1 lb
• Total Length: 17 in.
• Nailing Surface Length: 12 in.
• Strap Material: 304 Stainless Steel
• D-rings: Alloy Steel; Min. 5,000 lbs. tensile strength
• Tensile Strength: Min. 5,000 lbs.
• Max Capacity: 425 lbs. * To maintain ANSI Z359 compliance, limit total user weight to 310 lbs
• OSHA: CFR1926.502, CFR1910.66
• ANSI: A10.32-2004, Z359.1-2007
