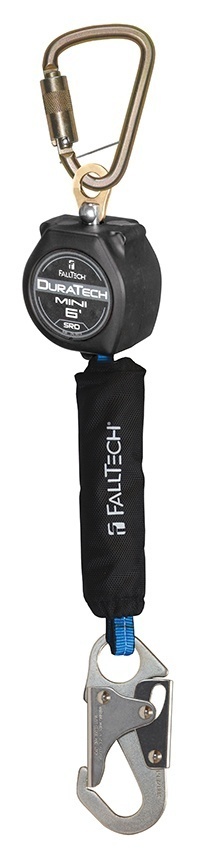

The FallTech DuraTech Mini SRD with Steel Snap Hook features a steel carabiner and steel snap hook. The swivel eye provides reduced lifeline leg twisting and the internal locking pawls provide quick and positive stopping action. The abrasion resistant Dyneema lifeline webbing offers longer service life and the shock absorber allows for visual fall indication. This SRD is class 1 and meets OSHA and ANSI standards.
Features:
- Single-leg SRD
- 6 foot working length
- Compact and impact resistant nylon housing
- Shock absorber provides visual fall event indication
- Integral Swivel eye - Reduces twisting
- Steel Snap Hook on leg
- Steel Carabiner with Captive Pinhousing end
Specifications:
- Weight: 4.9 lbs
- Webbing: 100% Dyneema
- Energy Absorber: Polyester
- Swivel Eye: Alloy Steel, 5/8 inch hole diameter
- Spring: Rolled Carbon Steel
- SRD Housing: Nylon 6/6
- Main Shaft: Alloy steel
- Pawls: Stainless steel
- Connectors: Alloy Steel
- Tensile Strength: Min. 3,000 lbs tensile strength
- Capacity: 310 lbs
- Max Arrest Distance: 54 inches
- Average Arrest Force: Less than 900 lbs.
- Max Arrest Force: 1,800 lbs
- Class of SRD: Class 1
- Connectors: 3,600 lb min. gate strength
- OSHA: CFR1926.502 and CFR1910.66
- ANSI: ANSI Z359.14-2014
