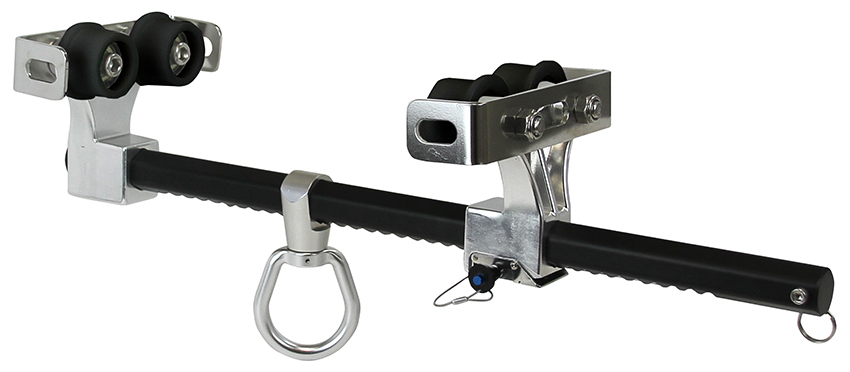

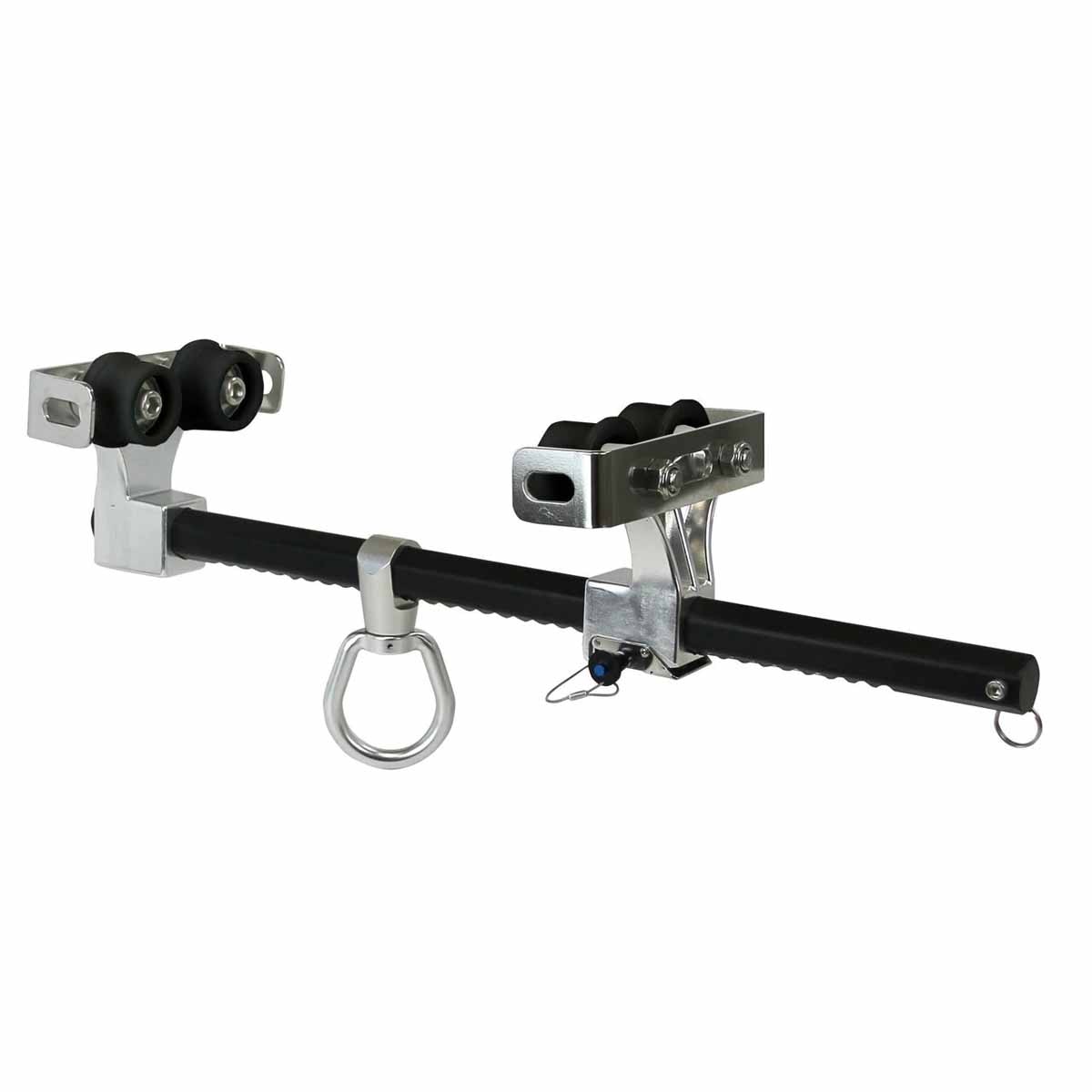

FallTech 7712 Beam Trolley

Part Number: 7712

Status: Available Typically ships in 2 - 5 business days.

FREE SHIPPING!

Quick Overview

The FallTech 7712 Beam Trolley offers horizontal trailing mobility anchorage when positioned anywhere along a horizontal I-beam.

Status: Available Typically ships in 2 - 5 business days.

$416.99

FallTech 7712 Beam Trolley

The FallTech 7712 Beam Trolley offers horizontal trailing mobility anchorage when positioned anywhere along a horizontal I-beam. The 7712 Beam Trolley fits I-beams from 4 to 18 inches wide and up to 1-3/4 inches thick. The 7712 Beam Trolley features an aluminum crossbar, side plates, and a 360° swiveling D-ring. This trolley has high-density Nylacast wheels to provide high continuous-service temperature-resistance and a low moisture absorption rate. The stainless steel wheel guards and fasteners plus sealed stainless steel wheel bearings. The FallTech 7712 Beam Trolley also features simple beam width adjustment with a secondary locking detent pin.

Features:

  • Effortless mobility that follows you anywhere along an overhead horizontal I-beam
  • Stainless Steel wheel guards and fasteners plus sealed stainless steel wheel bearings
  • An aluminum crossbar, side plates, and swiveling D-ring
  • High-density Nylacast wheels provide high continuous-service temperature-resistance and low moisture absorption rate
  • Simple beam width adjustment with secondary locking detent pin

Specifications:

  • Weight: 8.5 lbs
  • D-ring: Aluminum Alloy with 5,000 lbs Min Static Strength
  • Crossbar: Aluminum Alloy
  • Static Strength: 5,000 lbs
  • Min Use Temperature: 10º Fahrenheit
  • ANSI Anchor Class: Type D
  • ANSI User Capacity: 310 lbs or less
  • ANSI Z359.18-2017
  • OSHA User Capacity: 425 lbs or less
  • OSHA 1926.502
Tell us what you think about this item!

Product Documents

Product Description

FallTech 7712 Beam Trolley

The FallTech 7712 Beam Trolley offers horizontal trailing mobility anchorage when positioned anywhere along a horizontal I-beam. The 7712 Beam Trolley fits I-beams from 4 to 18 inches wide and up to 1-3/4 inches thick. The 7712 Beam Trolley features an aluminum crossbar, side plates, and a 360° swiveling D-ring. This trolley has high-density Nylacast wheels to provide high continuous-service temperature-resistance and a low moisture absorption rate. The stainless steel wheel guards and fasteners plus sealed stainless steel wheel bearings. The FallTech 7712 Beam Trolley also features simple beam width adjustment with a secondary locking detent pin.

Features:

  • Effortless mobility that follows you anywhere along an overhead horizontal I-beam
  • Stainless Steel wheel guards and fasteners plus sealed stainless steel wheel bearings
  • An aluminum crossbar, side plates, and swiveling D-ring
  • High-density Nylacast wheels provide high continuous-service temperature-resistance and low moisture absorption rate
  • Simple beam width adjustment with secondary locking detent pin

Specifications:

  • Weight: 8.5 lbs
  • D-ring: Aluminum Alloy with 5,000 lbs Min Static Strength
  • Crossbar: Aluminum Alloy
  • Static Strength: 5,000 lbs
  • Min Use Temperature: 10º Fahrenheit
  • ANSI Anchor Class: Type D
  • ANSI User Capacity: 310 lbs or less
  • ANSI Z359.18-2017
  • OSHA User Capacity: 425 lbs or less
  • OSHA 1926.502
