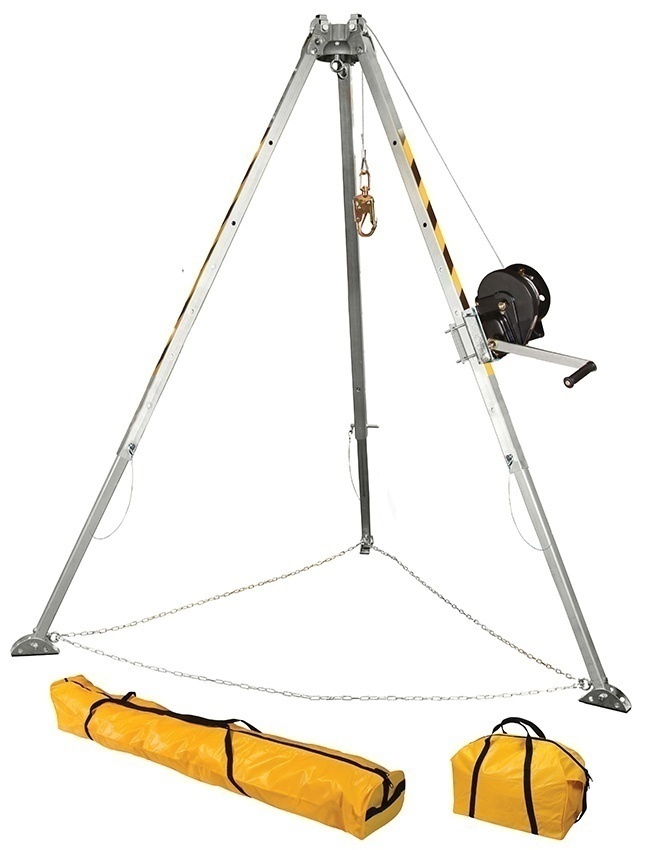

FallTech Tripod Kit With Galvanized Cable
The FallTech 7507 Tripod Kit With Galvanized Cable is designed to be part of a comprehensive system for those entering and working in confined spaces. The FallTech 7507 Tripod Kit features two head-mounted pulleys, a 60-foot winch, a leg bracket, and storage bags.
Kit Includes:
- 7276 Tripod - 8 Ft
- Adjustable 55-inch to 91-inch working height with 6-inch increments
- Aluminum head, pulleys, and pulley guards
- Meets OSHA 1926.502/ 1910.66 regulations
- Static Strength: 5,000 lb min.
- ANSI/OSHA User Capacity: 130 to 310 lb max.
- 7293 Winch
- 3/16-inch galvanized steel cable lifeline with alloy steel swivel snap hook.
- Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
- Cable 3/16" galvanized steel: 3,400 lb min. static strength
- Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Max. Working Load: 620 lbs
- 7291B Leg Bracket
- Bracket: Plated carbon steel
- Detent Pin: Plated Carbon Steel; 5"
- Storage Bags
