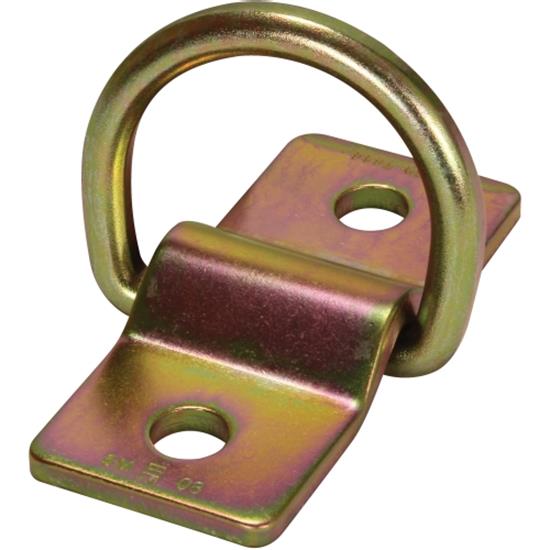

FallTech Bolt-On D-Ring Anchor Plate

The FallTech Bolt-On D-Ring Anchorage features a rugged forged alloy-steel construction, and a 5,000-pound minimum breaking strength. This bolt-on D-ring can be mounted vertically or horizontally to steel by welding on or by using grade 5 or better hardware (not included). FallTech has developed a broad line of anchorage connectors and slings to help address the difficulties associated with designating and rigging proper anchor points in nearly any environment. FallTech knows that finding a way to tie off is not always easy, therefore we have developed multiple design compatible components engineered and tested to bring you and the anchor point together. To ensure maximum safety, FallTech anchorage devices and connectors are thoroughly tested and engineered to adapt to nearly every anchorage need where the connection of a fall arrest system to a 5000-pound anchor point is necessary. All FallTech anchors and connectors meet or exceed OSHA and ANSI standards: OSHA 1926 & ANSI Z359

Features

• Rugged forged alloy steel construction
• Can be mounted to steel
• Engineer's approval required for mounting to anything other than steel
• Can be mounted vertically or horizontally
• Rated at over 5,000 pounds
• Meets the Requirements of OSHA 1926 and ANSI Z359

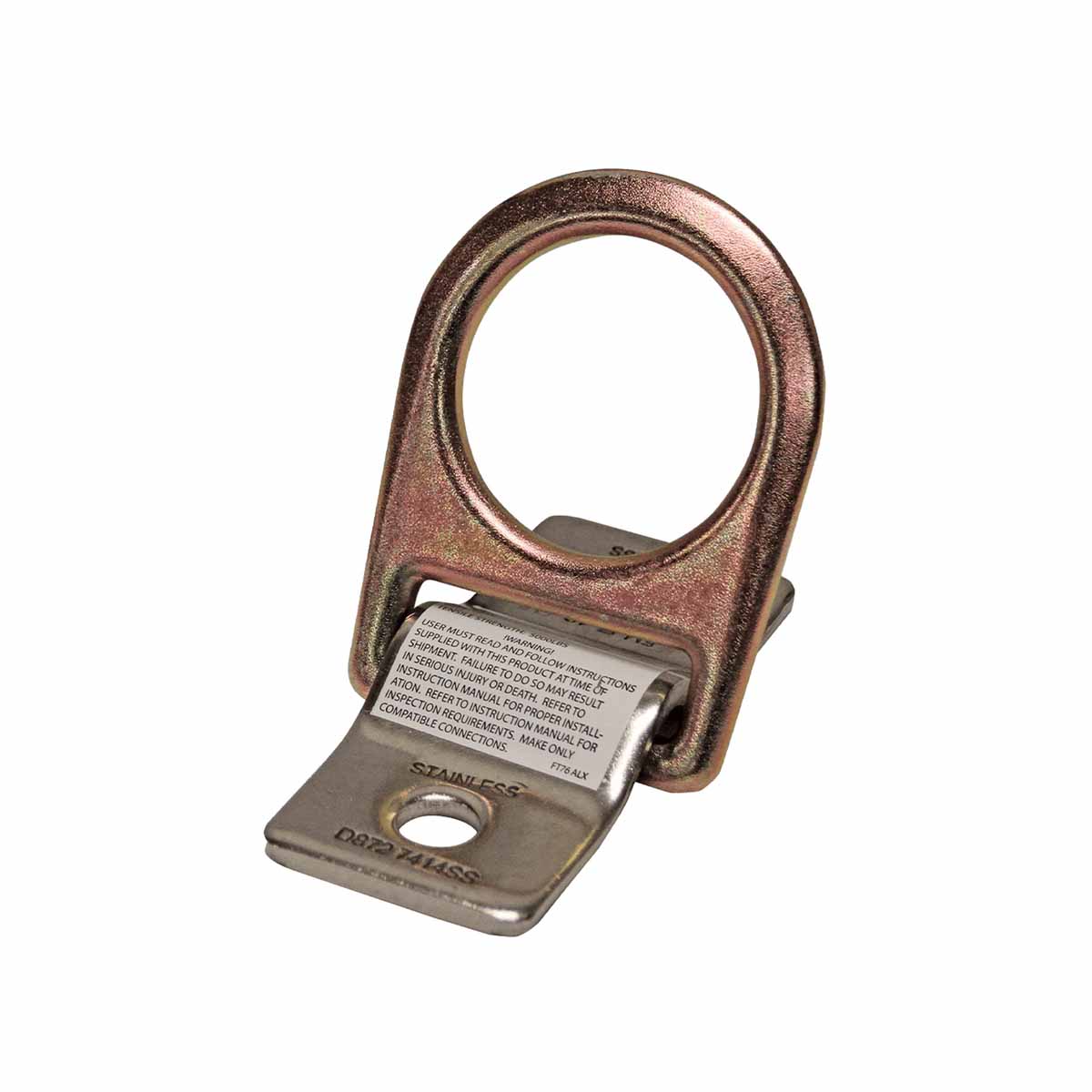

• Choose from Alloy Steel (7414) or Stainless Steel (7414SS)
