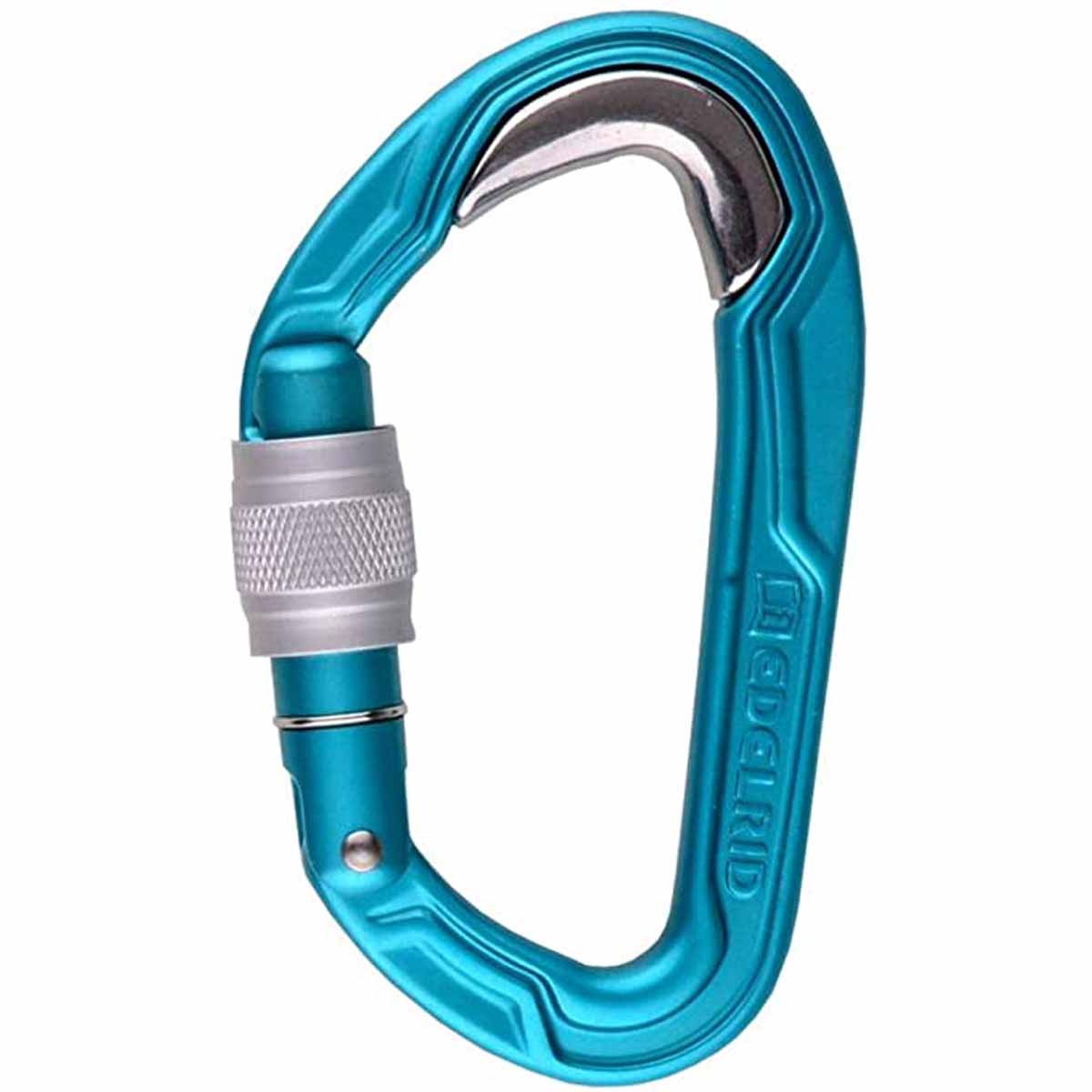

SCREW GATE:

PRODUCT INFORMATION

- Keylock closure mechanism for optimum handling when clipping and unclipping
- H-profile construction ensures best possible use of material and minimal weight
- Steel insert prevents premature wear from rope friction or bolt hangers

TECHNICAL INFORMATION

- Fmax. major axis [kN]: 27
- Fmax. open [kN]: 8
- Fmax. minor axis [kN]: 10
- Width [mm]: 60,00
- Length [mm]: 100,00
- Gate opening [mm]: 20
- Bulletproof : Yes
- Country of origin : Taiwan
- Material : Alu / Steel
- Certification : EN 362, EN 12275
- Carabiner shape : Offset D
- Closure : Screw
- Weight: 60 g

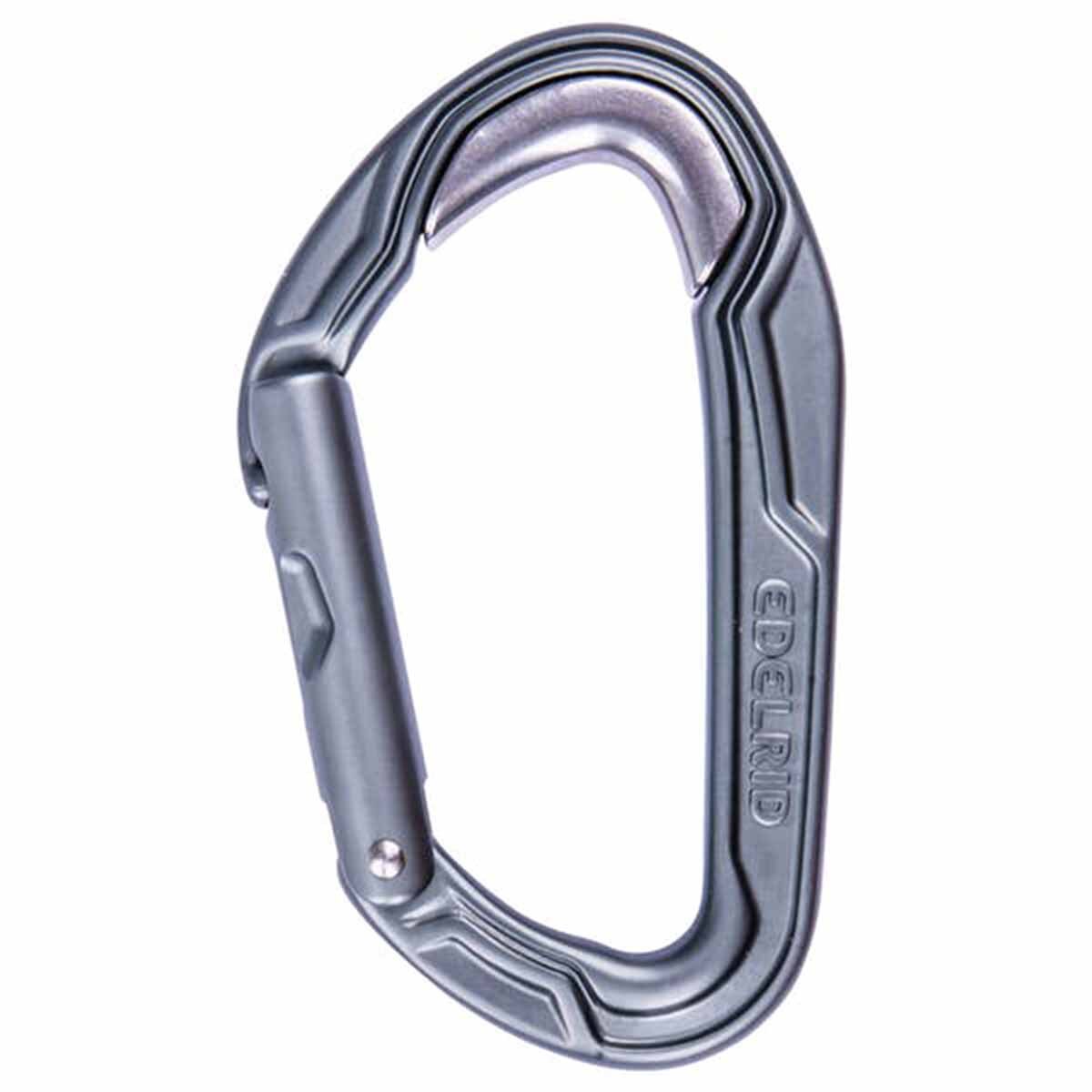

STRAIGHT GATE:

PRODUCT INFORMATION

- Keylock closure mechanism for optimum handling when clipping and unclipping
- H-profile construction ensures best possible use of material and minimal weight
- Steel insert prevents premature wear from rope friction or bolt hangers
- Ergonomic gate design for easier clipping

TECHNICAL INFORMATION

- Fmax. major axis [kN]: 27
- Fmax. open [kN]: 8
- Fmax. minor axis [kN]: 10
- Width [mm]: 58,00
- Length [mm]: 100,00
- Gate opening [mm]: 21
- Bulletproof : Yes
- Country of origin : Taiwan
- Material : Steel/ALU
- Certification : EN 12275
- Carabiner shape : Offset D
- Closure : Straight
- Weight: 54 g

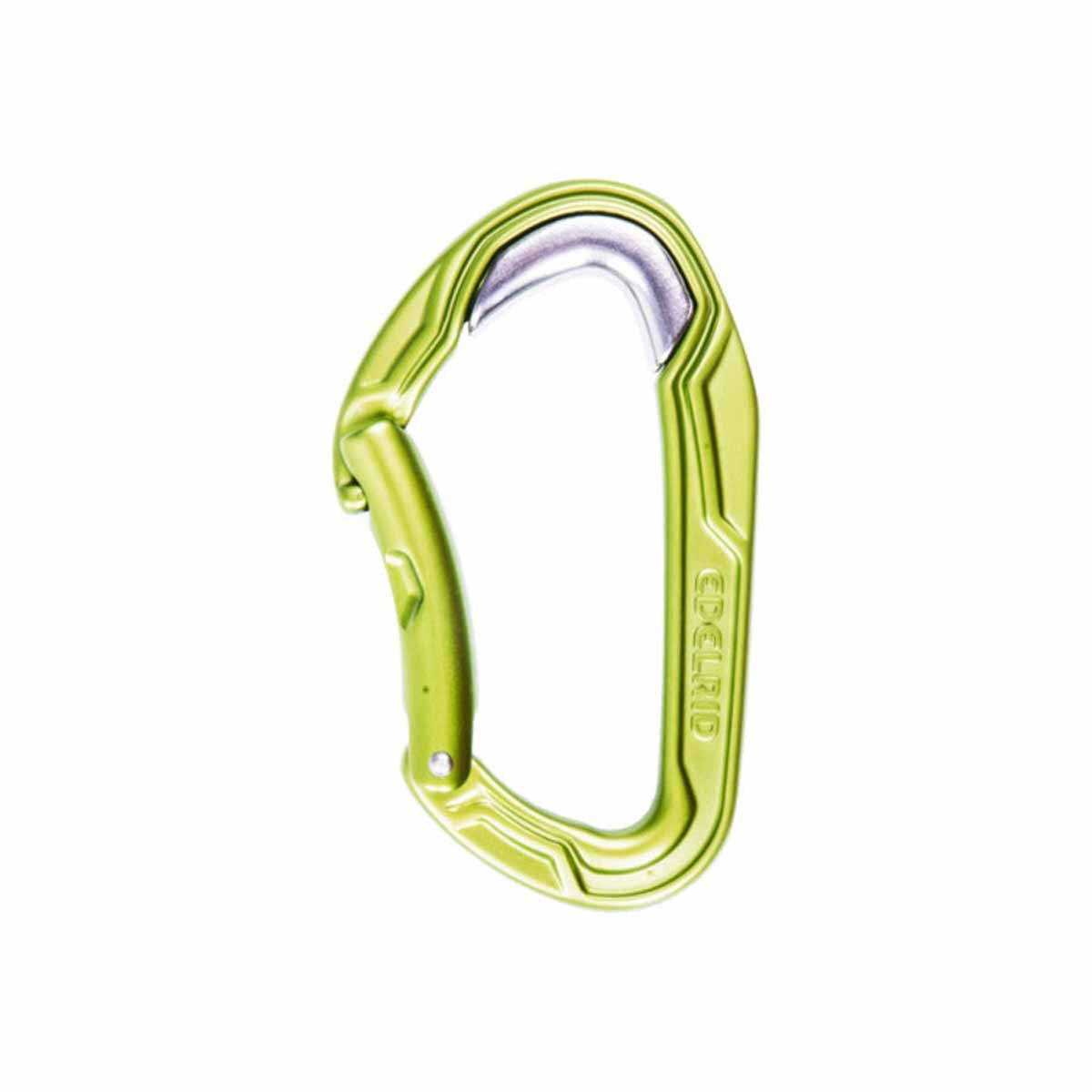

BENT GATE:

PRODUCT INFORMATION

- H-profile construction ensures best possible use of material and minimal weight
- Keylock closure mechanism for optimum handling when clipping and unclipping
- Steel insert prevents premature wear from rope friction or bolt hangers
- Ergonomic gate design for easier clipping

TECHNICAL INFORMATION

- Fmax. major axis [kN]: 24
- Fmax. open [kN]: 8
- Fmax. minor axis [kN]: 10
- Width [mm]: 58,00
- Length [mm]: 100,00
- Gate opening [mm]: 25
- Bulletproof : Yes
- Country of origin : Taiwan
- Material : Alu / Steel
- Certification : EN 12275
- Carabiner shape : Offset D
- Closure : Bent
- Weight: 54 g
