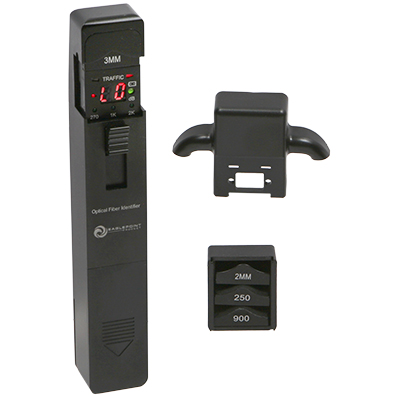

Live Optical Fiber Identifier

High Power Optical Fiber Identifier especially for a high power signal, which is normally applied for measurement in CWDM, DWDM, amplified optical signals, Raman Amplified, as well as Pump laser source with EDFA.

OFI401H can detect output power range from 30dBm~+24dBm with 2.0, 3.0 adaptors.

The fiber identifier recognizes modulation, 270Hz,1KHz and 2KHz with continuous audible tone.

Features
• High power reach +24dBm, low power reach -30dBm.
• Easy-to-use with “ONE KEY” operation; Easy-to-replace adaptors;
• Efficiently identifies the fiber transmission direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning;
• Higher than +24dBm, display “HI” for warning, lower than -30dBm display “LO” for adaptor  2.0,  3.0
• Durable metal housing and quality construction
• Low power indication
• Sunshade for avoid the nature light effect the testing
• It's easy to carry and loss adaptors can be avoided with new adaptors box.
• Sunshade can avoid the interference with the natural light



Specifications
Identified Wavelength Range
• 800-1700 nm

Identified Signal Type
• CW, 270Hz ±5%, 1kH z±5%,  2kHz ±5%

Detector Type
• 1mmInGaAs 2pcs

Adapter Type
• 0.25 ,  0.9,  2.0,  3.0

Signal Direction
• Left & Right LED

 Sinnal Direction Test Range
• (dBm, CW/ 2.0,  3.0)
• 2.0, 3.0   -30~+24(1550nm)

Signal Frequency Display (Hz)
• 270, 1k, 2k

Frequency Test Range
• (dBm, Average Value)
• 2.0, 3.0  -10~20 (270Hz,1KHz) -5~20 (2KHz)

Insertion Loss(dB, Typical Value)
• 2.5 (1550nm)------  2.0,  3.0

Alkaline Battery(V)
• 2pcs  AAA batteries

Operating Temperature(°C)
• -10-+60

Storage Temperature(°C)
• -25-+70

Dimension (mm)
• 196 X 30.5 X 27

Weight (g)
• 250
