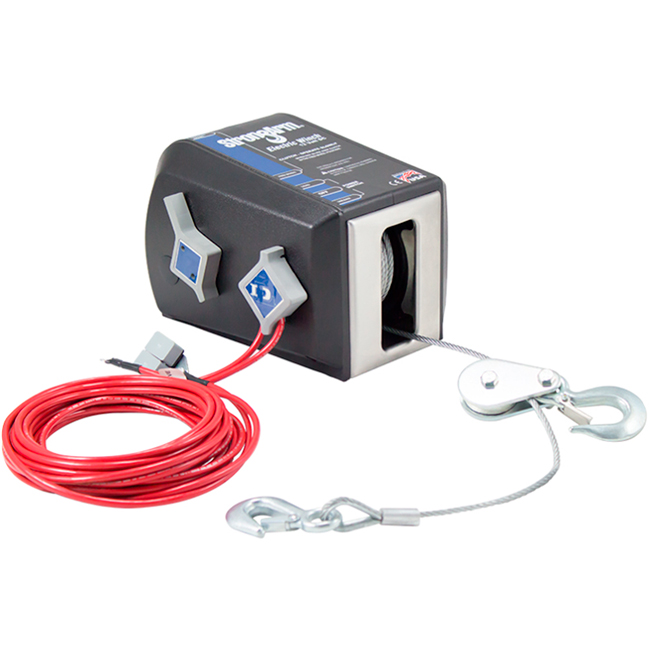

Dutton-Lainson 4500 lb Capacity StrongArm 12V DC Electric Winch, SA12000DC

Typically ships in 2 - 5 business days.
SA1200DC Dutton-Lainson Strong Arm Electric Winch Specifications

WD-1200 StrongArm Electric Winch Specifications:

Volts / Amps 12 Volt DC / 70
Load Capacity
4500 lbs.
Gear Ratio 584:1
SA=Cable 7/32" x 50'

  • Electric winch gear-train uses heat-rated sintered-iron gears for smooth, quiet operation
  • Final drive gears are heat-treated high carbon steel for greater strength
  • Die formed base is adapted for quick mounting applications
  • Emergency crank handle is standard equipment
  • Attractive brushed stainless steel front plate for superior rust resistance
  • 1-piece high impact case provides excellent weather resistance and protection for internal components
  • Hook safety snap keeps load securely attached
  • Features Power-in, Power-out, controlled Freewheeling clutch and automatic brake
  • High-torque 12 volt DC motor has circuit-breaker overload protection
  • StrongArm DC electric winches have a dynamic motor break as well as a mechanical friction brake to securely hold the load
  • Includes wiring harness, 25 ft. positive battery wire, and 8 ft. ground wire

More Information
SKU DL-24874
Manufacturer Model DL-24874
Manufacturer Dutton-Lainson
