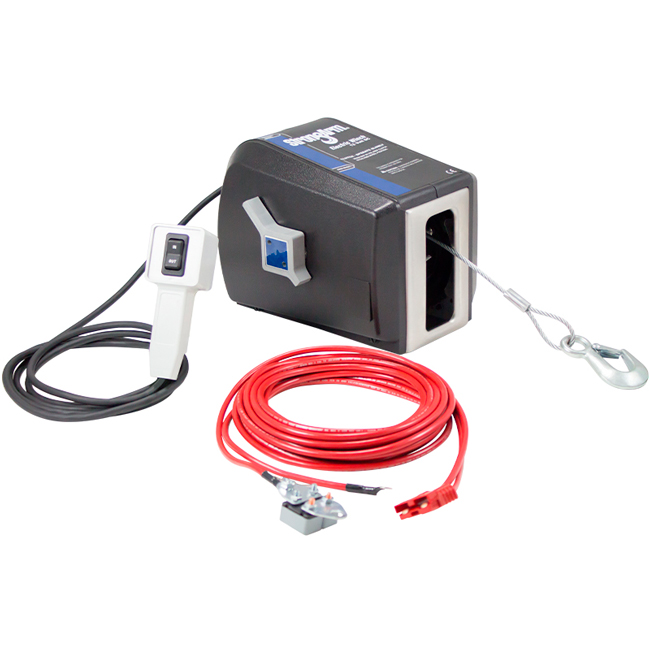

Dutton-Lainson 1500 Lb. Capacity StrongArm 12V DC Electric Winch with Remote, SA5015DC

Part Number: DL-25532

Availability: In stock

Quick Overview

Electric Winch, 12VDC, Max Pull Single Line 1500 Lb, Spur Type Gearing, Full Load Empty Reel Line Speed 4 FPM, No Load Empty Reel 12 FPM, Full Load Full Reel Line Speed 8 FPM, No Load Full Reel 33 FPM, Full Load Amps 70, Length 10 In, Width 8 1/4 In, Height 7 7/8 In, Wire Rope 25 Ft x 3/16 In, Power In and Out Characteristics, Gear Ratio 189 To 1, Switch Location Remote

Dutton-Lainson 1500 Lb. Capacity StrongArm 12V DC Electric Winch with Remote, SA5015DC

Part Number: DL-25532

Availability: In stock

Quick Overview

Electric Winch, 12VDC, Max Pull Single Line 1500 Lb, Spur Type Gearing, Full Load Empty Reel Line Speed 4 FPM, No Load Empty Reel 12 FPM, Full Load Full Reel Line Speed 8 FPM, No Load Full Reel 33 FPM, Full Load Amps 70, Length 10 In, Width 8 1/4 In, Height 7 7/8 In, Wire Rope 25 Ft x 3/16 In, Power In and Out Characteristics, Gear Ratio 189 To 1, Switch Location Remote
FREE SHIPPING!
$401.99

SA5015DC StrongArm Electric Winch with Remote Specifications:

Volts / Amps12 Volt DC / 70 Amps
Load Capacity
1500 lbs.
Gear Ratio189:1
ClutchPower in, power out, and freespoling
BrakingDynamic and mechanical friction
Switching Method3-position rocker switch
Rope TypeGalvanized aircraft cable
Rope Size20' x 3/16"
Power Cord25' positive battery wire and 8' ground wire

  • 12 Volt DC Electric Winch with Remote Control.
  • Power in, power out, controlled freewheeling clutch, and dynamic brake.
  • Comes loaded with 20 feet of 3/16 aircraft cable.
  • Will accept 2 inch strap.
  • 1500 lb capacity.
  • Emergency crank handle also included in case of power loss.
  • DC Winches are great for mobile applications, or around water. Mount on ATV
Tell us what you think about this item!

Product Description

SA5015DC StrongArm Electric Winch with Remote Specifications:

Volts / Amps12 Volt DC / 70 Amps
Load Capacity
1500 lbs.
Gear Ratio189:1
ClutchPower in, power out, and freespoling
BrakingDynamic and mechanical friction
Switching Method3-position rocker switch
Rope TypeGalvanized aircraft cable
Rope Size20' x 3/16"
Power Cord25' positive battery wire and 8' ground wire

  • 12 Volt DC Electric Winch with Remote Control.
  • Power in, power out, controlled freewheeling clutch, and dynamic brake.
  • Comes loaded with 20 feet of 3/16 aircraft cable.
  • Will accept 2 inch strap.
  • 1500 lb capacity.
  • Emergency crank handle also included in case of power loss.
  • DC Winches are great for mobile applications, or around water. Mount on ATV
