Armada Technologies Dual Frequency Cable Locator

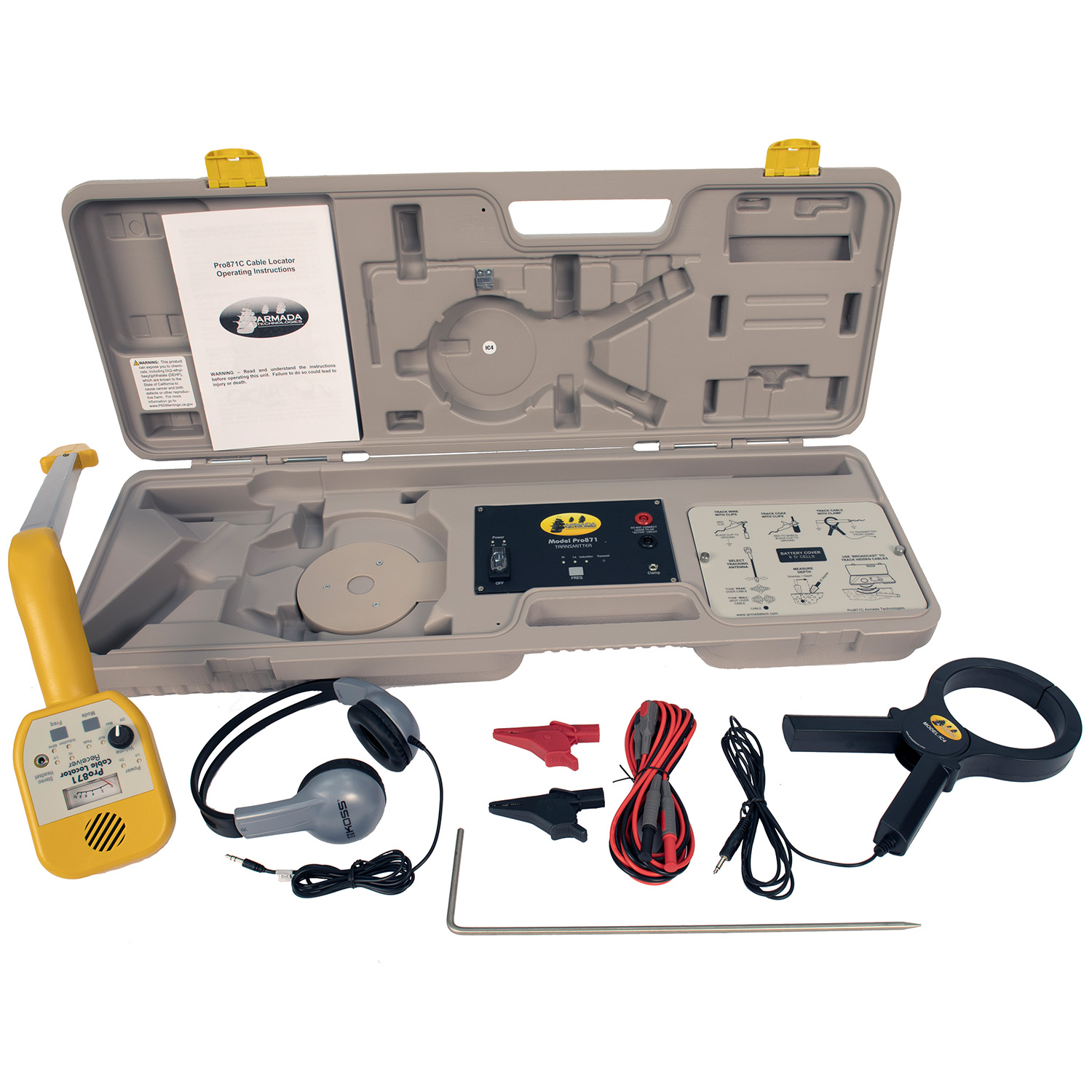

The Pro871C Underground Cable Locator is a full-featured, low-cost underground locator for contractors and maintenance personnel.  Incorporating three different locating frequencies, the Pro871C tracks metallic cabling, including CATV, electrical, telephone, sprinkler, and lighting.  The Pro871C transmits an intermittent signal down cables that is easy to follow.  Underground cables up to 8 feet deep and 4000 feet long can be tracked with the Pro871C.

Inductive locating is easy with the Pro871C, using either the IC3 inductive clamp or the built-in inductive antenna.  Inductive locating eliminates the need to shut power down or disconnect services.

The Pro871C incorporates a 50/60Hz passive locating mode, which identifies electrical sources (power cables) and tracks them without using a transmitter of any kind.  Contractors can identify the path of 50/60 Hz underground cables without disconnecting them or connecting the Pro871C.

Features:

• Two Direct Connection Frequencies (2 kHz, 33 kHz).
• Wireless Inductive Clamp or Antenna Modes.
• Passive 50/60Hz AC Tracking.
• Selectable Null or Peak Tracking Modes.
• Audible (Speaker or Headset) or Visual Meter.
• Low Battery LED.
• Custom Steel Spine Carrying Case.
