Home > DMM Professional Pinto Rig Pulley
Model#: PUL120
Stock#: AH-PUL120
ON BACKORDER
Call for availability

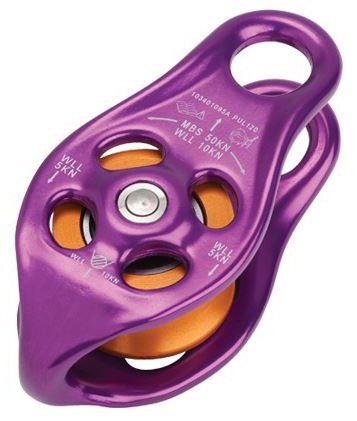

DMM Professional Pinto Rig Pulley
The DMM Professional Pinto Rig Pulley has few straight lines. The hot forged curves and fairlead flares make it ultra-efficient and textile friendly. You can clip, hitch, splice or thread the anchor holes or the beckett to give numerous work and rescue configurations (textile attachments can help minimize any torsional build up in closed systems).
Features:
- Conforms to EN12278:2007 (Pulleys) and NFPA 1983 (2012 Edition) G Rating
- Hot forged aluminum side plates provide strength and durability
- Heat treated stainless steel spindles for high strength and corrosion resistance
- Riveted and tamperproof assembly
- High-efficiency roller bearing for ultra smooth operation
- Recommended for arborist, rescue, hauling and many applications where friction reduction is required and rigging applications
- Load bearing beckett
- Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
Specifications:
- Weight: 5.6 oz. (159 g)
- Strength: 50 kN
- WLL (Working Load Limit): 10 kN
- Compatible Rope Diameter: Max of 16 mm
- Dimensions: 96 x 45 x 38 mm
AH-PUL120
Manufacturer: | DMM Professional |
Material: |
Stainless Steel Anodized Forged Aluminum |
Rope Compatibility (Min/Max): | Max: 16 mm |
Standards: |
EN12278:2007 NFPA 1983 G Rating EN 7599:2010 |
Working Load Limit (WLL): | 10 kN |
Weight: | 0.40 |
