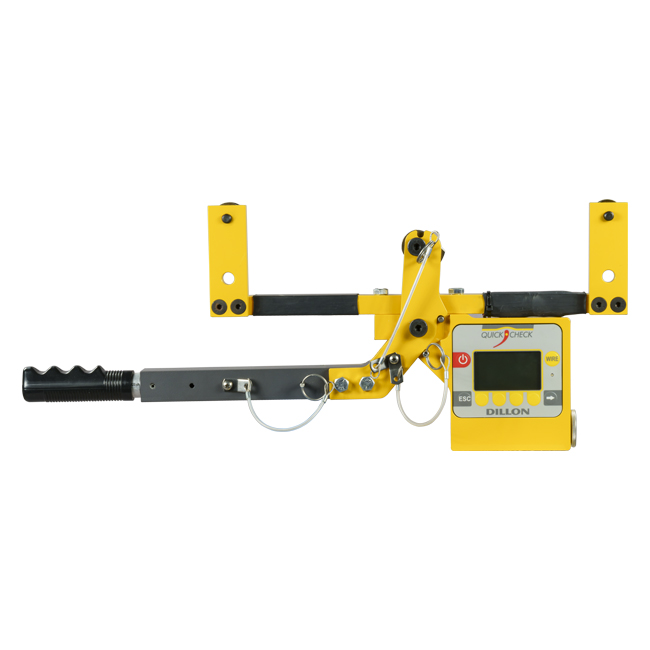

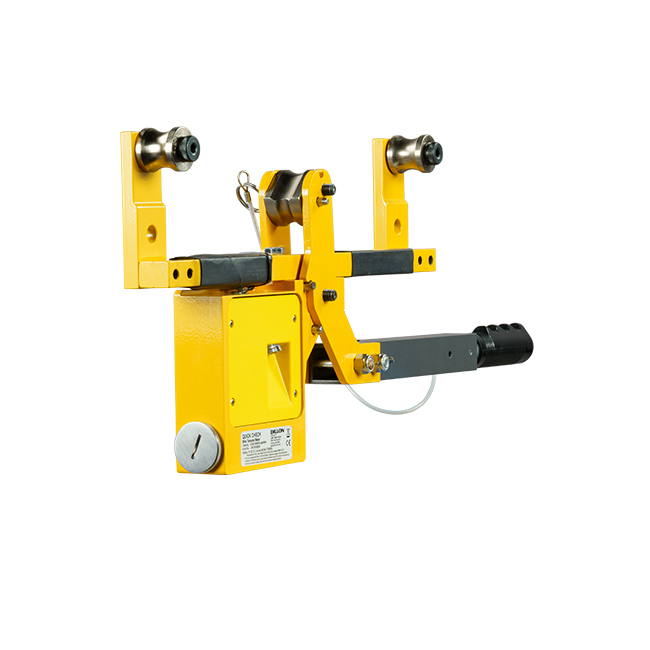

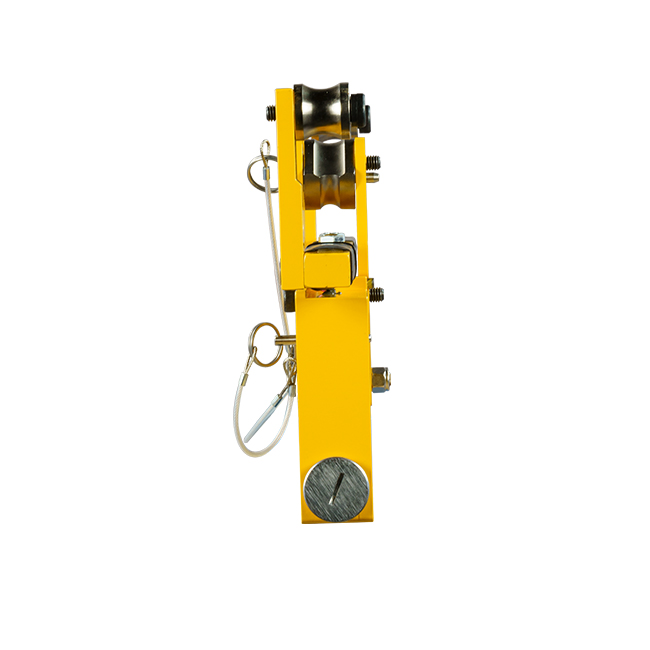

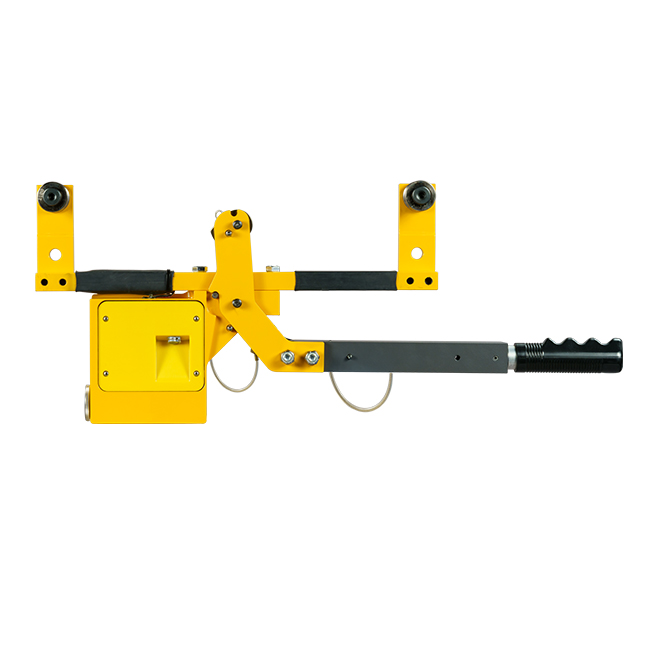

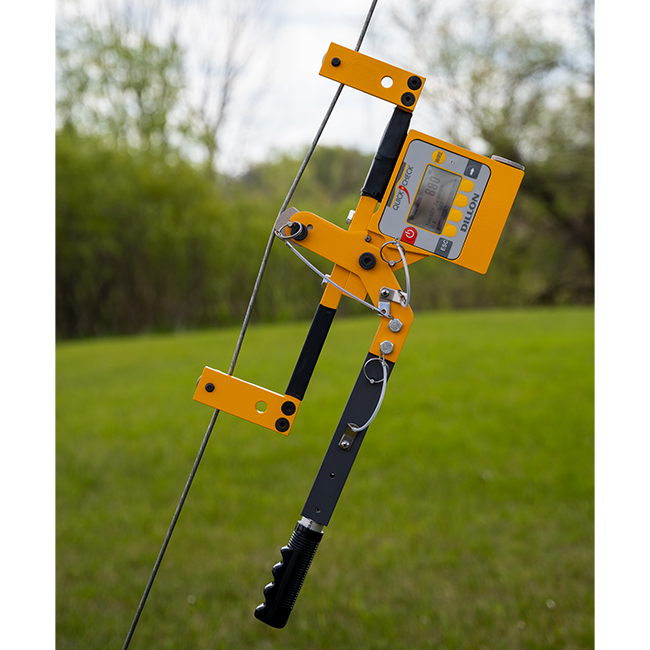

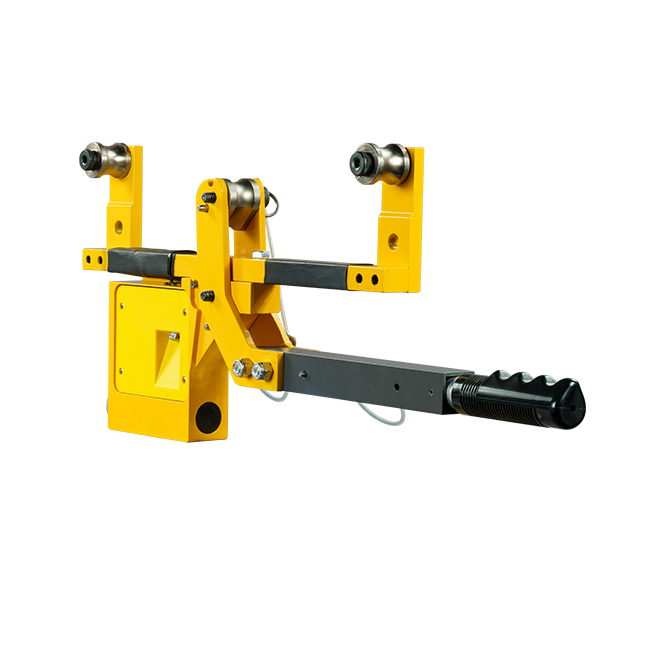

Dillon Quick Check-T Bluetooth Tension Meter

Features:

• Bluetooth enabled
• Custom mobile app
• Multi-wire single sheave

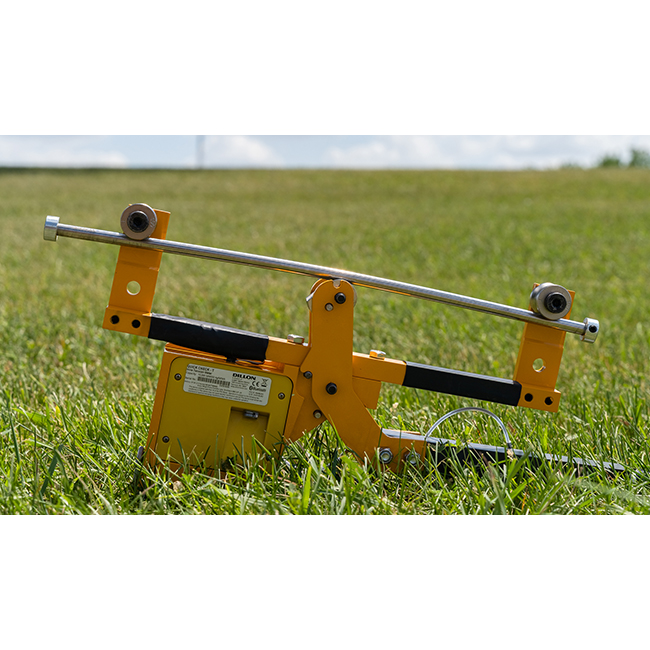

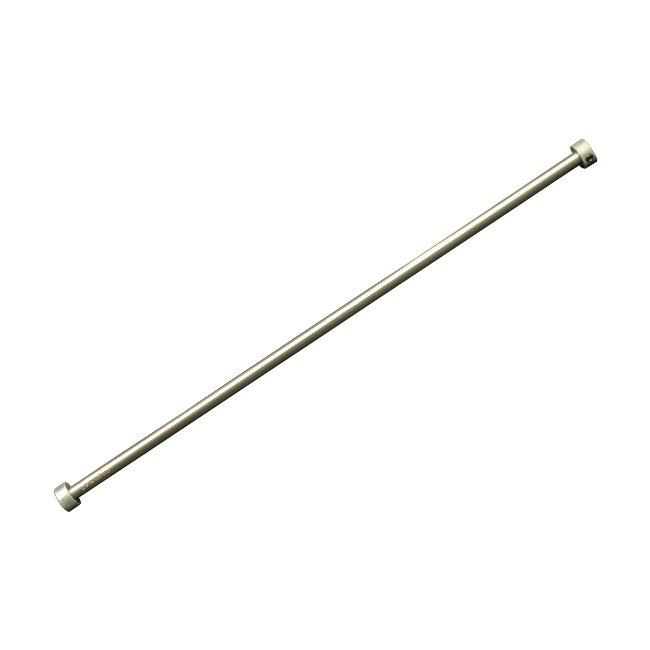

• Calibration check rod
• Automatic report generation with photos
• Automatic target tension calculations
• Ability to capture pre and post-tension readings
• Inbuilt image capture

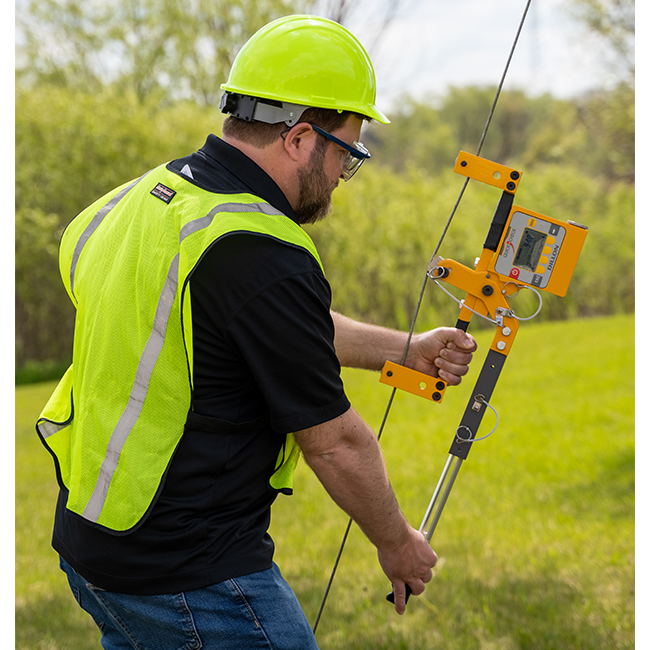

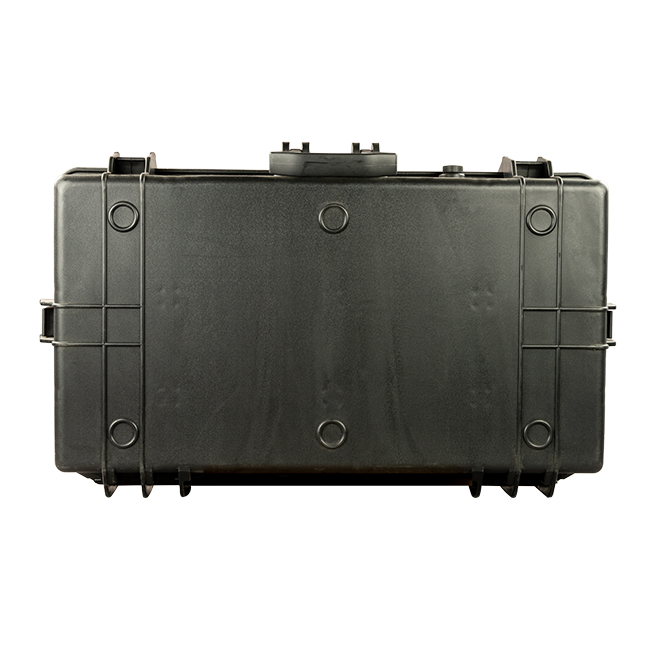

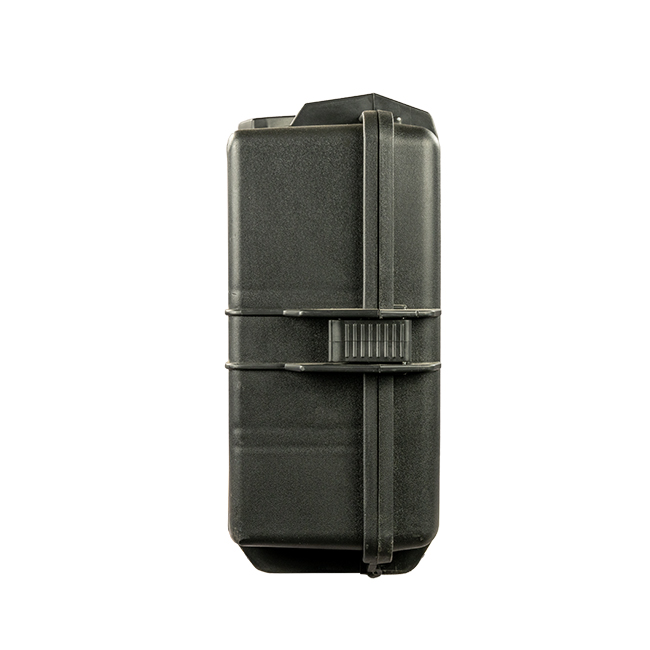

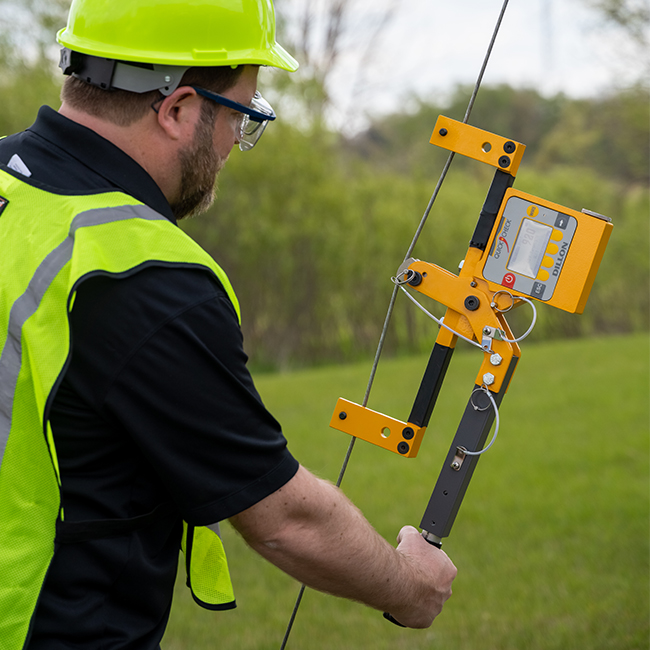

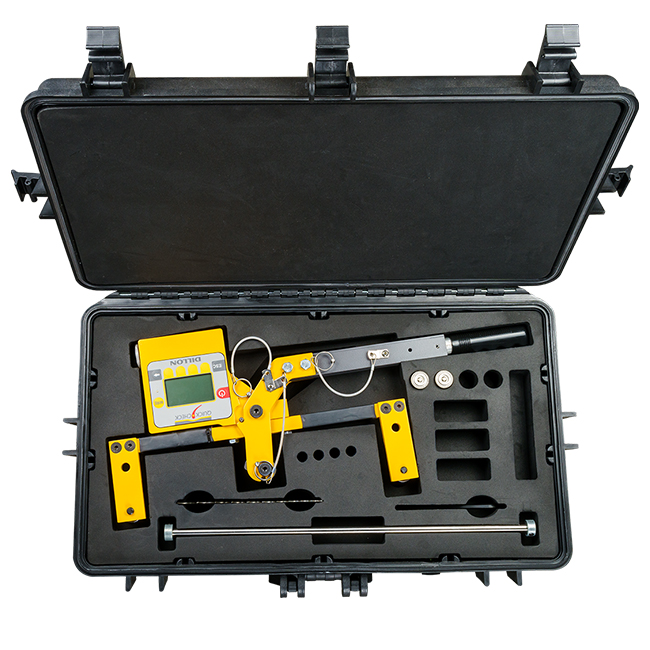

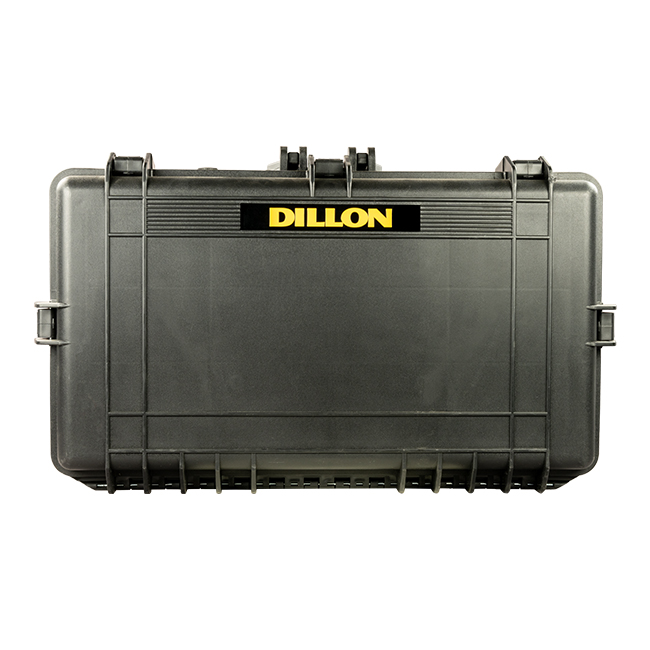

No more changing sheaves, no more charts to figure out target tensions, and no more whiteboards! The new Dillon Quick Check-T Bluetooth Tension Meter will make checking, recording, and reporting site tensions a breeze with these capabilities and more. There is no changing of sheaves as there is one sheave and it rotates. All of the info needed is on the display and on the app, cutting the use of whiteboards and it reduces time off-site. With automatic site form completion and images, you can directly send completed reports directly from the app. The Dillon Quick Check-T also comes with a new IP 67 carrying case that is load-bearing up to 140 lbs, is cold resistant up to -4° F, features 50,000 uses catch lifespan and a pressure balance valve. You can store the Quick Check-T, batteries, cable gauge, and check rod all in one place.

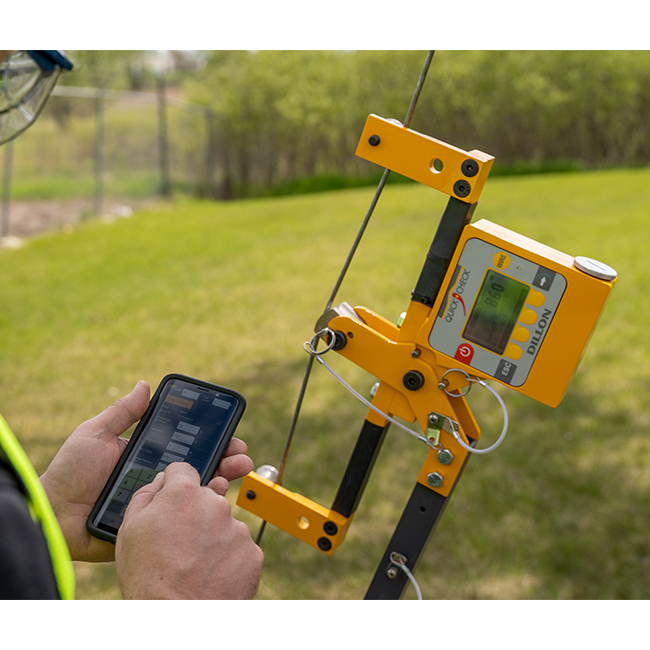

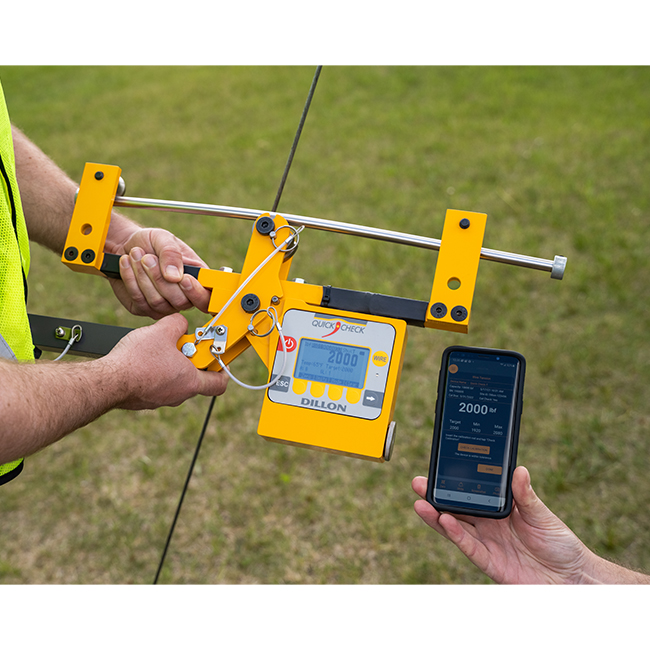

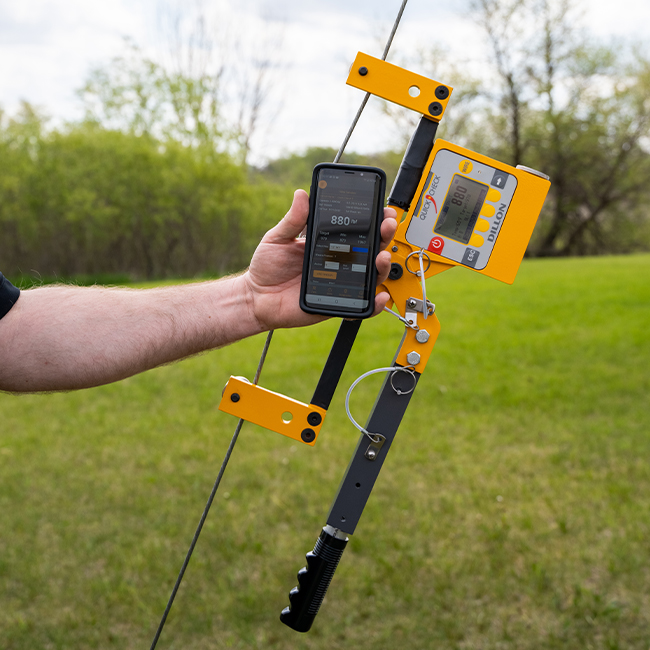

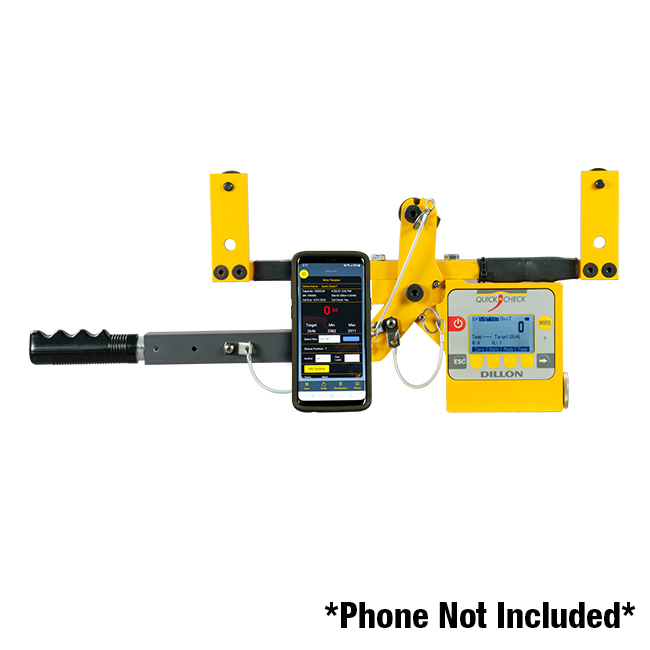

The custom cell phone app guides the user through the process from site information to summary. It also saves historic data for site revisits, but also can be used to create new sites. All readings are stored and easily viewed.

Click here for the Android App.

Click here for the Apple App.

Specifications:

• Capacity: 10,000 lb/45 kN/4500 kg
• Range: Wire sizes from 3/16” (4.75 mm) up to 1.0” (25.4 mm)
• Communications: Bluetooth®
• Wire Calibrations: Up to 20 wire calibrations
• Units of Measure: lbf, kgf, newtons
• Capture Rate: 10Hz, 100Hz and 1000Hz
• Resolution: Low / Medium / High (5000 resolutions)
• Accuracy: + 3% instrument capacity
• Data Export: Via mobile app
• Battery: Two C batteries
• Operating Range: -4° F to 158° F (-20° C to 70° C)
• Display: Dot-graphic LCD display supports full text

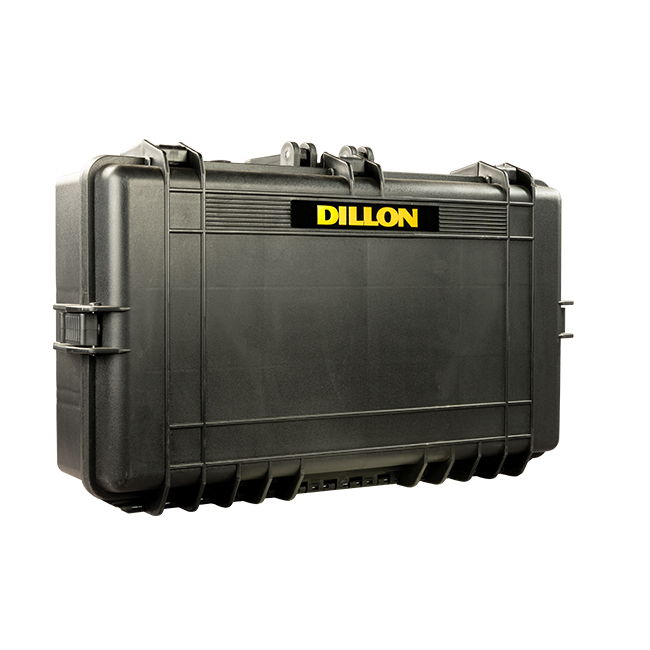

• Hard polymer storage case included
• Environmental: Suitable for continued outdoor use
• Size: 10 x 23 x 3” (25 x 59 x 8 cm)
• Weight: 11 lb (5 kg)
• Recalibration: Every 12 months
• Approved By: Majority of cell tower owners

Calibration: Each wire rope calibration is traceable to the National Institute of Standards and Technology. Certificate included with curve readings. Passes only with three consecutive confirming runs, with all points in the specification.

Calibrations Included:
