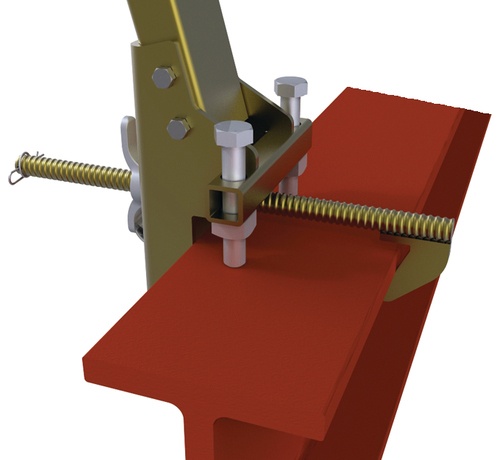

DBI Sala SecuraSpan I-Beam HLL Stanchion Base

The DBI Sala SecuraSpan I-Beam Horizontal Lifeline Stanchion Base is compatible with SecuraSpan stanchions and fits 6 to 12 in. wide flanges up to 2-1/4 in. thick. The lightweight and portable design provides fast and easy handling, installation, and storage. The simple clamp and wing nut installation makes clamping to a beam fast, easy, and safe and the durable zinc plated steel construction provides corrosion resistance for longer service life.

Features:

• I-beam base for stanchion to configure your own SecuraSpan system
• Converts your SecuraSpan rebar/shear stud system to an I-beam system
• Fits 6 in. to 12 in. (15.2-30.5 cm) wide flange up to 2-1/4 in. (5.7 cm) thick
• Lightweight and portable design
• Top mounted adjustment system
• Simple clamp and wing nut installation
• Extremely durable construction
• Single and multi-span indefinite length system configurations
• Pass-thru 100% tie-off protection
• Flexible system capacity
• Various lengths and individual components are available
• Equipped with i-Safe

Specifications:

• Capacity: 310 lbs (141 kg)
• Max Number of Users: 2 Per Span, 6 Total
• Label: Vinyl
• Physical Weight: 21.70 lbs (9.8 kg)
