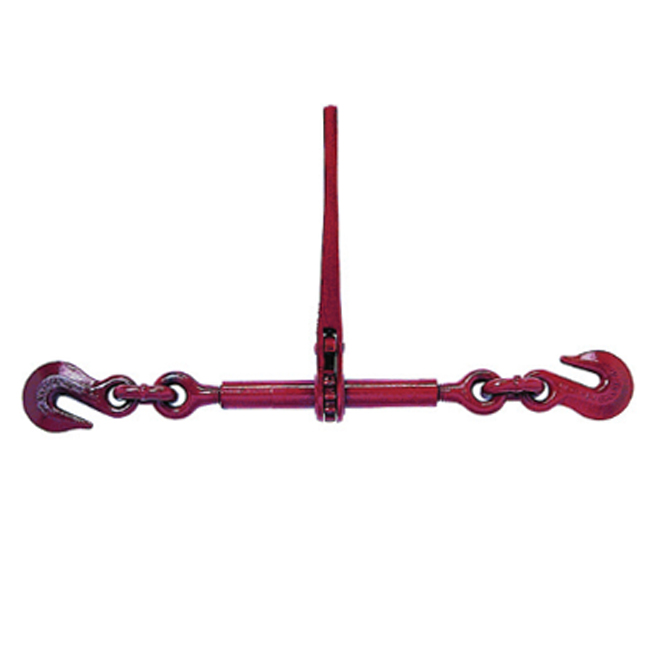

Crosby R-7 Ratchet Load Binder

Crosby R-7 Ratchet Load Binder

The Crosby R-7 Ratchet Load Binder is designed for use with 70, 80, and 100-grade chains. The continuous take-up feature provides finite adjustments to tie-down loads. The one-piece assembly means no bolts or nuts to loosen. The ratchet spring is rust-proofed while all load-bearing or holding parts are forged for maximum durability and strength. This load binder meets or exceeds the requirements of US DOT FMCSA Part 393 Subpart I.

Features:

• One piece forged handle
• Continuous take-up
• One-piece assembly

Specifications:

• Barrel Length
  • 10"
• Take Up
  • 8"
• Working Load Limit
  • 8,800 lbs (1048404)
  • 15,000 lbs (1048422)
  • 16,000 lbs (1048440)

Available Options:

• Chain Size (Min-Max):
  • 5/16"-3/8" (1048422)
  • 3/8"-1/2" (1048404)
  • 1/2"-5/8" (1048440)
