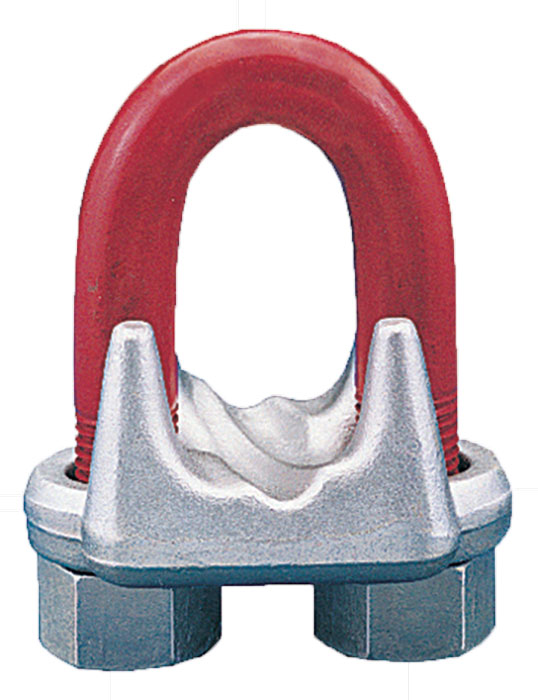

Crosby G-450 1/2 Inch Red-U-Bolt Wire Rope Clip
The Crosby G450 1/2" Red-U-Bolt Wire Rope Clip is compatible with rope from 7/16" to 1/2" in diameter and meets ASME B30.26, FF-C-450 standards.
Features:
- Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or CG, and a size
forged into it.
- Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for
1/8” - 7/8” sizes, and 90% for sizes 1” through 3-1/2”
- Look for the Red-U-Bolt, your assurance of Genuine Crosby Clips.
- Entire Clip is Galvanized to resist corrosive and rusting action.
- Sizes 1/8” through 2-1/2” and 3” have forged bases.
- All Clips are individually bagged or tagged with proper application instructions and warning information.
- Clip sizes up through 1-1/2” have rolled threads.
- Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load, and temperature requirements. Importantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties, and material traceability, not addressed by ASME B30.26.
Specifications:
- Wire Rope Diameter: 7/16" to 1/2"
- Standards: ASME B30.26, FF-C-450
- Material: Steel
- Finish: Painted
- Country of Origin: France
- Minimum Torque: 65 ft.-lb
- Clip Type: U-Bolt
- Rope Turn Back: 11-1/2"
- Minimum Number of Clips: 3
