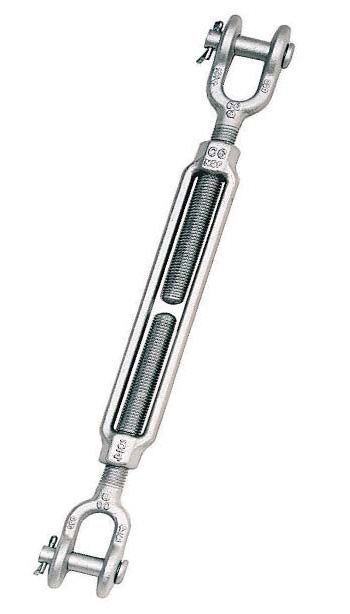

Crosby 12 Inch Take Up Jaw and Jaw Turnbuckle
Crosby's Jaw and Jaw Turnbuckles feature heat-treated bodies and quenched and tempered end fittings. Crosby turnbuckles are recommended for straight or in-line pull only. The UNJ thread on the end fittings has been modified for improved fatigue properties. Crosby turnbuckles meet or exceed all requirements of ASME B30.26.
Specifications:
- End fittings are Quenched and Tempered or Normalized, bodies heat-treated by normalizing
- Hot Dip galvanized steel
- TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY
- Forged jaw ends are fitted with bolts and nuts for 1/4” through 5/8”, and pins and cotters on 3/4” through 2-3/4” sizes
- Modified UNJ thread on end fittings for improved fatigue properties
- Body has UNC threads.
- Lock Nuts available for all sizes
- Fatigue Rated
- Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these turnbuckles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
Available Options:
- 5/8" x 12" (CY-1032652)
- 3/4" x 12" (CY-1032714)
- 1/2" x 12" (CY-1032590)
