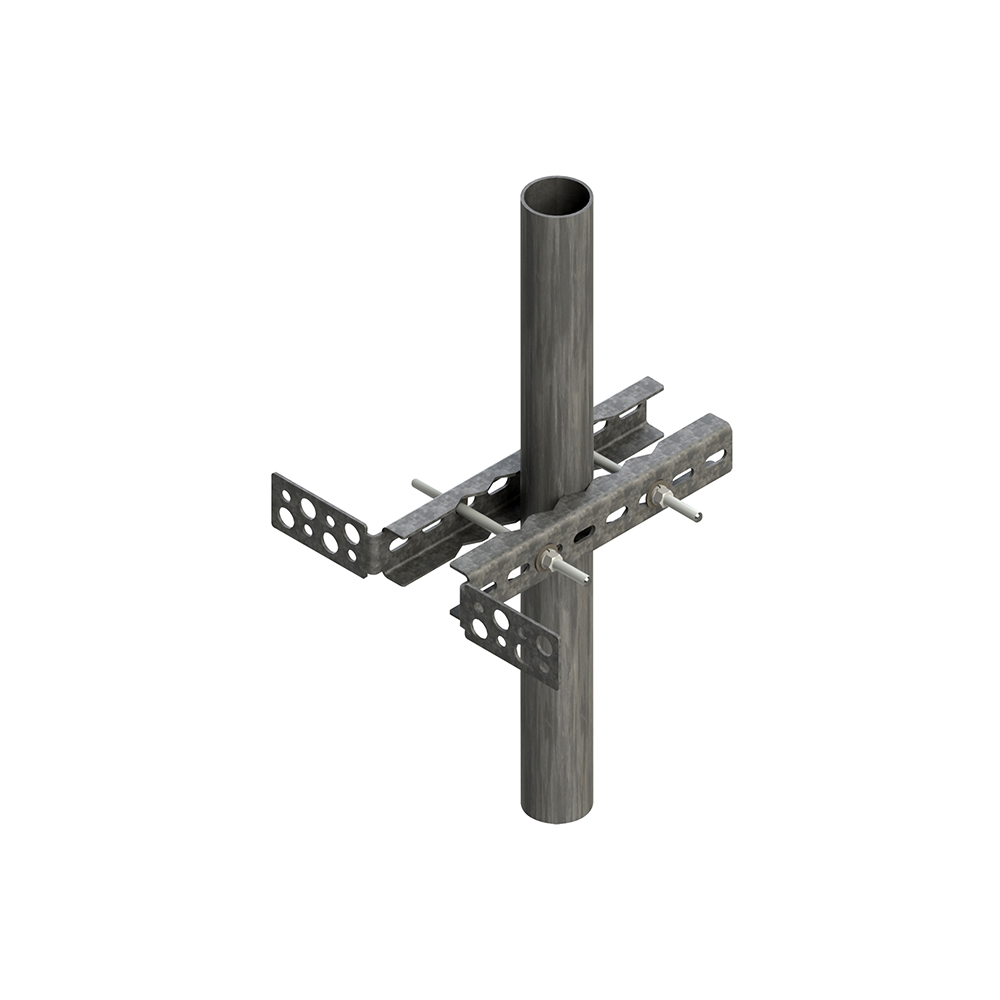

CommScope PG-CS08 RRU Cable Support Bracket

CommScope PG-CS08 RRU Cable Support Bracket

PIM-Guard Antenna and RRU Cable Support Bracket with 8 ports for stackable hangers (up to 3 per port). Install with a torque wrench set at 10 to 15 ft-lb to meet carrier PIM requirements.

Specifications:

• Product Type: Support bracket
• Product Brand: PIM-Guard
• Cable Runs, quantity: 8
• Hole, quantity: 8
• Mounting: Pipe, 60.3–114.3 mm (2-3/8 into 4-1/2 in) OD
• Height: 55.88 mm | 2.2 in
• Width: 248.92 mm | 9.8 in
• Length: 317.5 mm | 12.5 in
• Mounting Diameter, maximum: 60.96 mm | 2.4 in
• Mounting Diameter, minimum: 114.3 mm | 4.5 in
• Hole Size: 3/4 in | 7/16 in
• Material Type: Hot dip galvanized steel
• Packaging quantity: 1
• Weight, net: 4.1 kg | 9.039 lb
• Agency: Classification
• ISO 9001:2015: Designed, manufactured, and/or distributed under this quality management system
