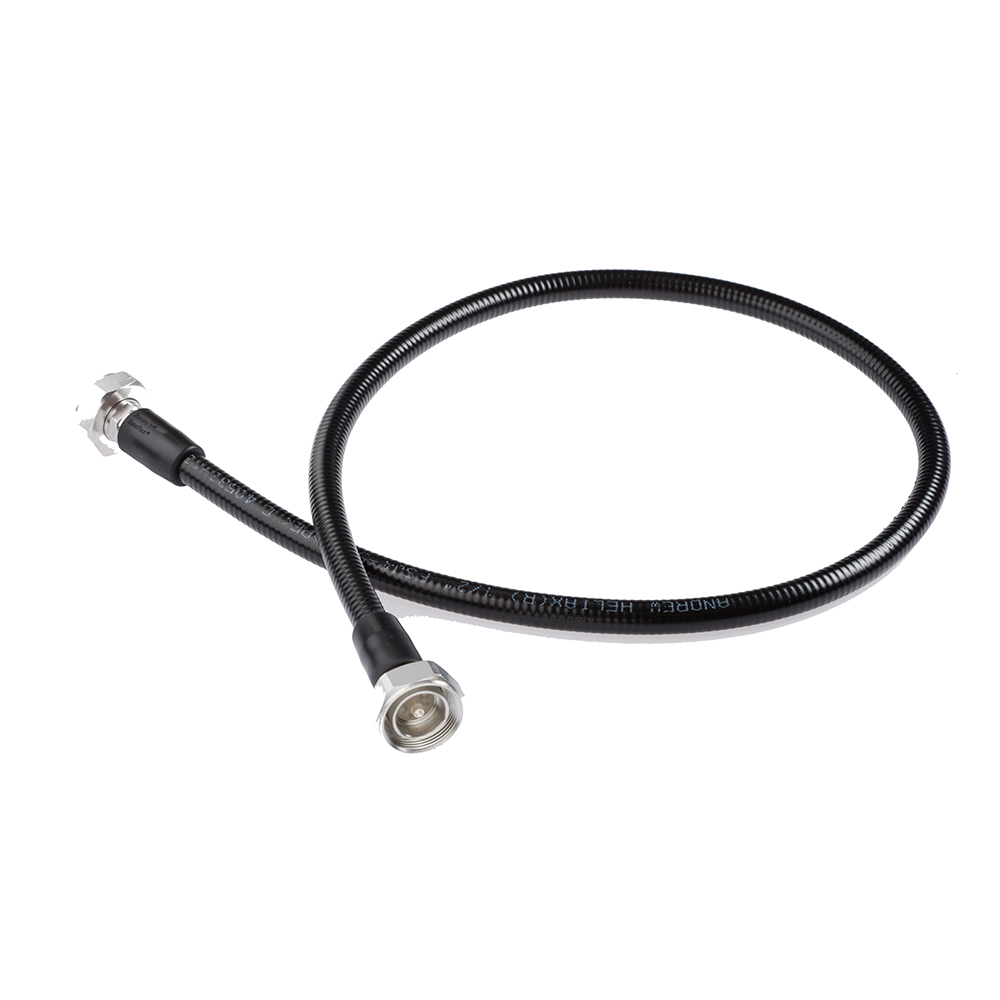

CommScope LDF4-50A SureFlex Jumper 7-16 DIN Male (6-Foot)

Classification:

Specifications:

Body Style, Connector A: Straight
Body Style, Connector B: Straight
Interface, Connector A: 7-16 DIN Male
Interface, Connector B: 7-16 DIN Male
Specification Sheet Revision Level: B
Length: 1.829 m | 6.001 ft
Cable Length Unit: Feet
Nominal Size: 1/2 in
3rd Order IMD Static: -116 dBm
3rd Order IMD Static Test Method Two: +43 dBm carriers
DTF, Connector A: -34 dB
DTF, Connector B: -34 dB
Frequency Band/VSWR/Return Loss (dB)
698–960 MHz/1.065/30.04
1700–2200 MHz/1.065/30.04
2200–2700 MHz/1.106/25.96
Immersion Test Method: Meets IEC 60529:2001, IP68 in mated condition
ISO 9001:2015: Designed, manufactured, and/or distributed under this quality management system
ROHS: Compliant
REACH-SVHC: Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS: Compliant
