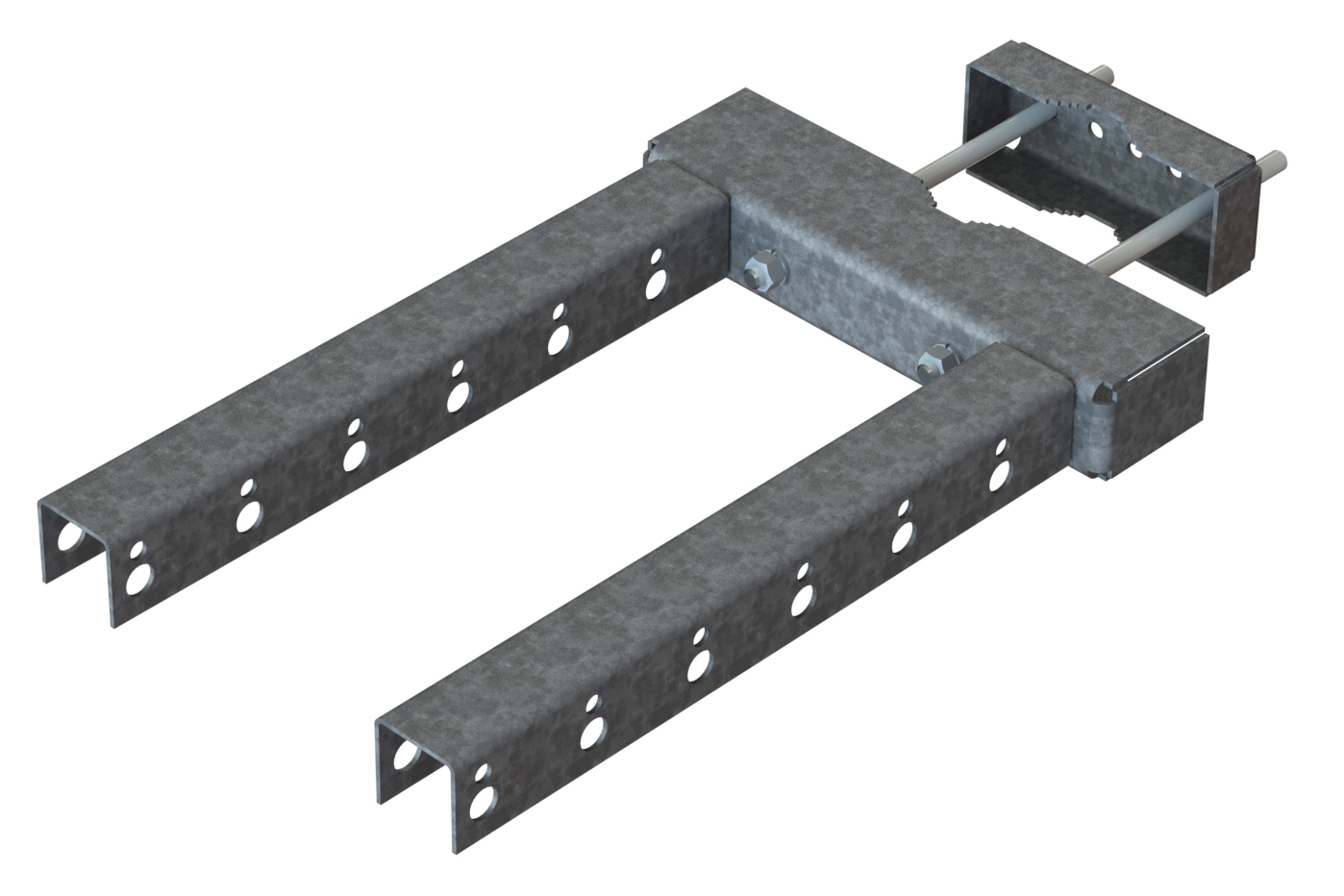

CommScope ACS-D24 20-Foot Dual Leg Cable Support Bracket
COMMSCOPE's ACS-D24 dual-leg cable support bracket is designed to securely support two sets of remote radio unit (RRU) jumpers and prevent wind, rain, ice, and wildlife from straining the equipment connections. Securely mounts to 1.9 – 4.5 in antenna pipes and round members with a universal half clamp. Overall mount stand-off length is 20 in to ensure the cable is perfectly supported and in line with the RRU ports, thus, removing any undesired strain.
Specifications:
- Product Type: Support bracket
- Customer Material Number: ANT.16499
- Cable Runs, quantity: 24
- Hole, quantity: 24
- Height: 76.2 mm | 3 in
- Width: 347.98 mm | 13.7 in
- Length: 744.22 mm | 29.3 in
- Mounting Diameter, maximum: 48.26 mm | 1.9 in
- Mounting Diameter, minimum: 114.3 mm | 4.5 in
- Hole Size: 3/4 in | 7/16 in
- Material Type: Hot dip galvanized steel
- Packaging quantity: 1
- Weight, net: 7.1 kg | 15.653 lb
- ISO 9001:2015: Designed, manufactured, and/or distributed under this quality management system
