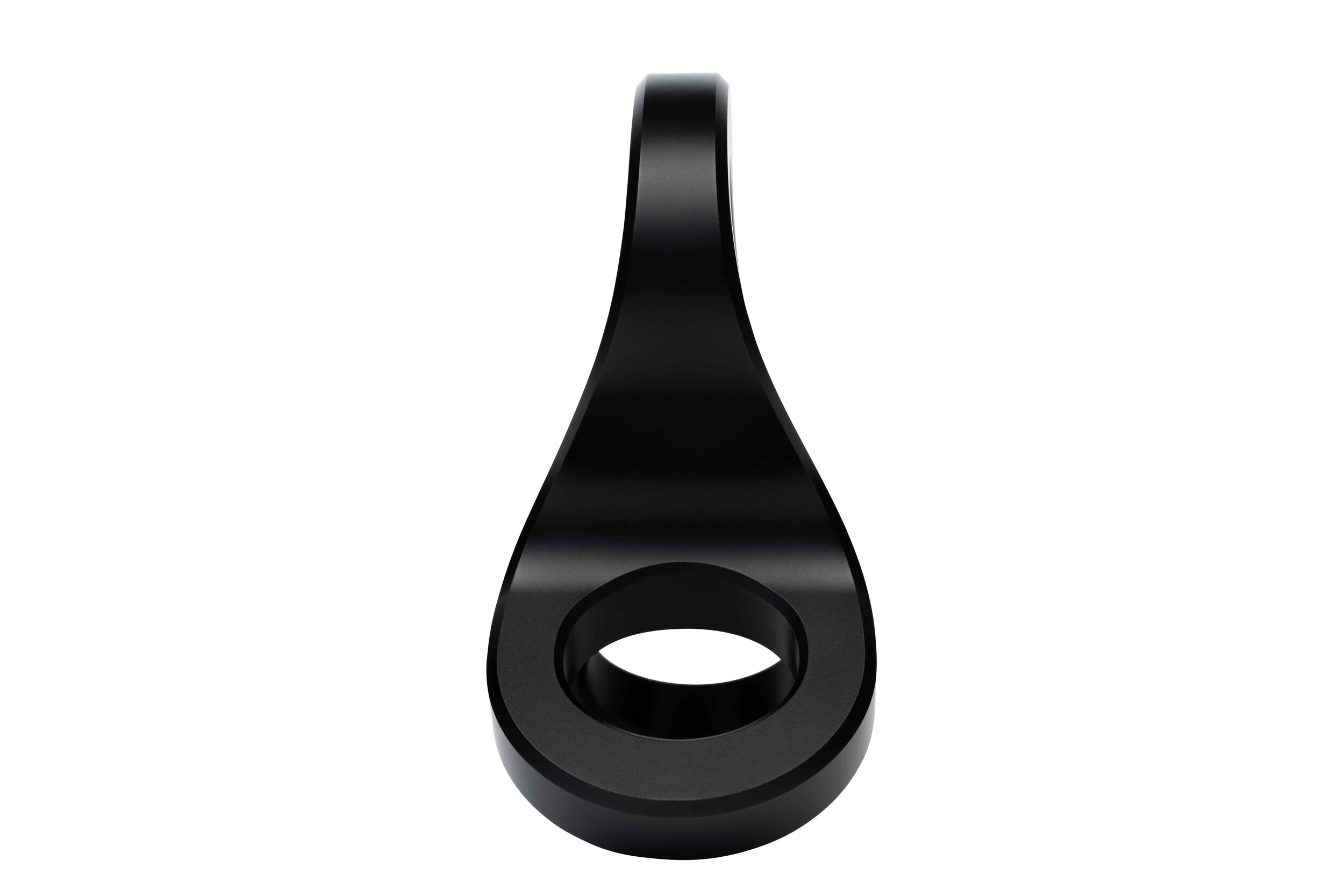

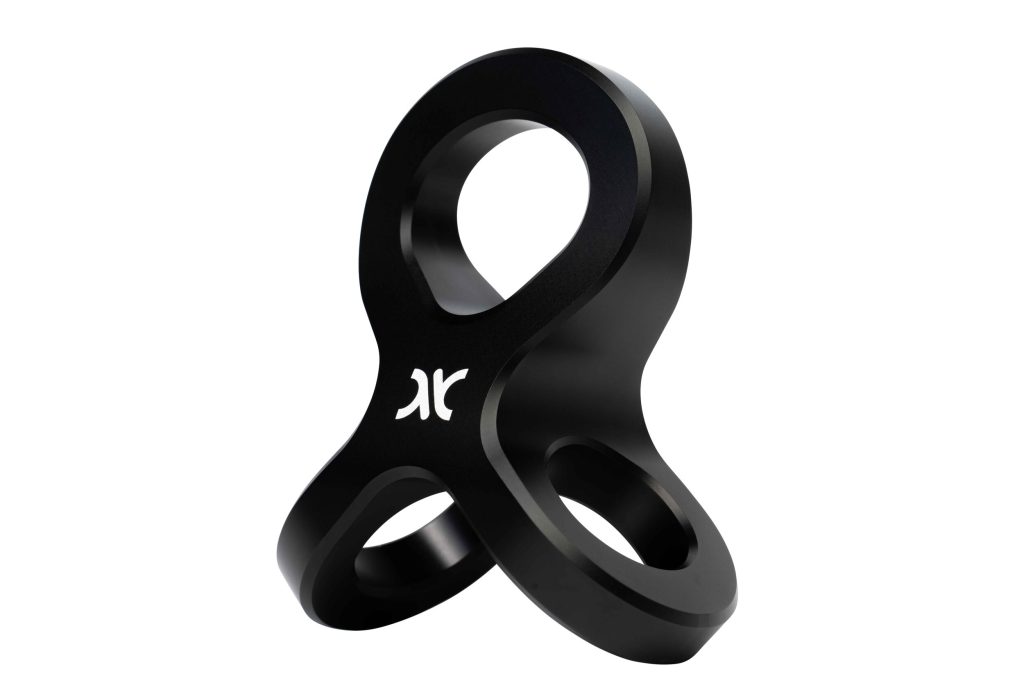

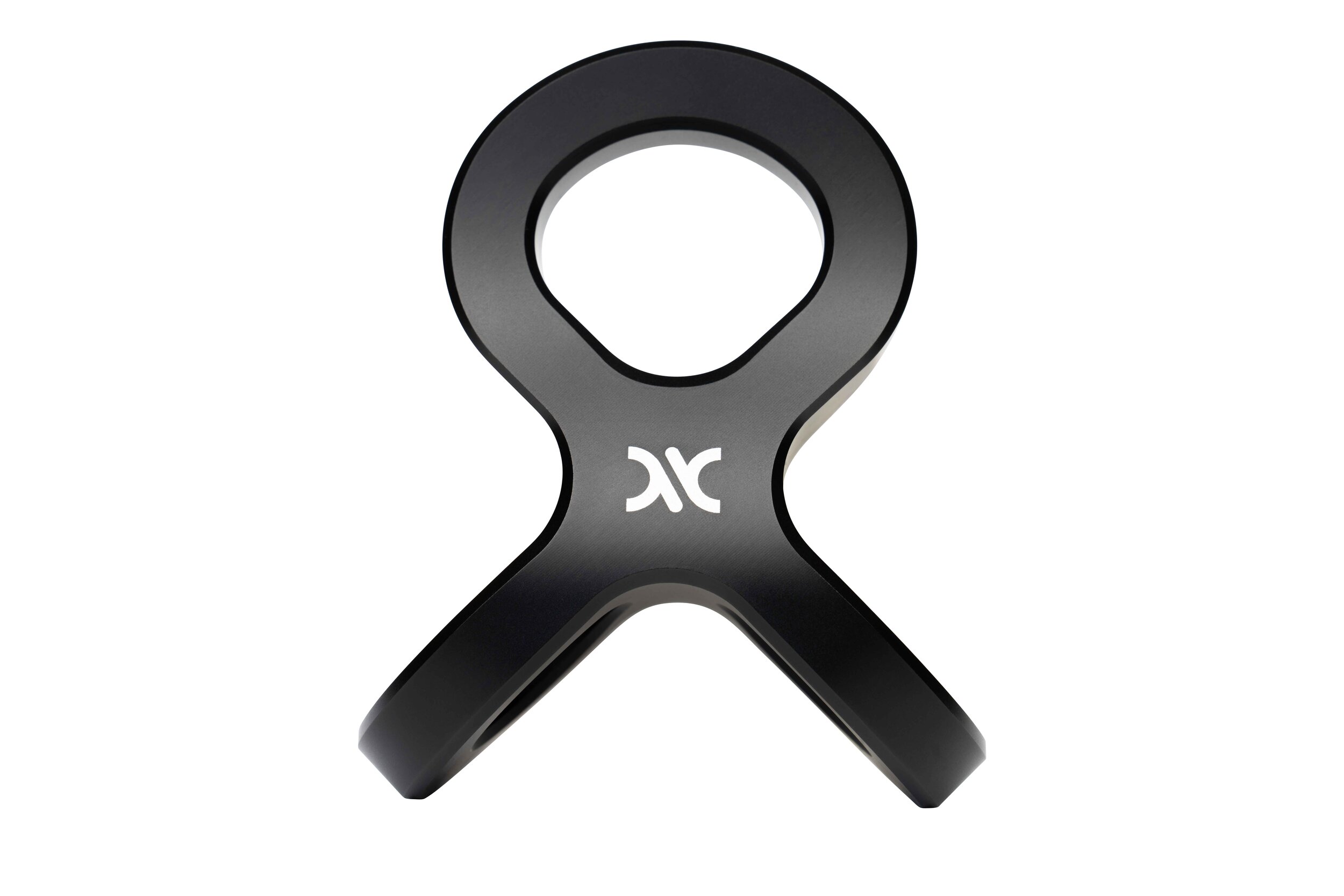

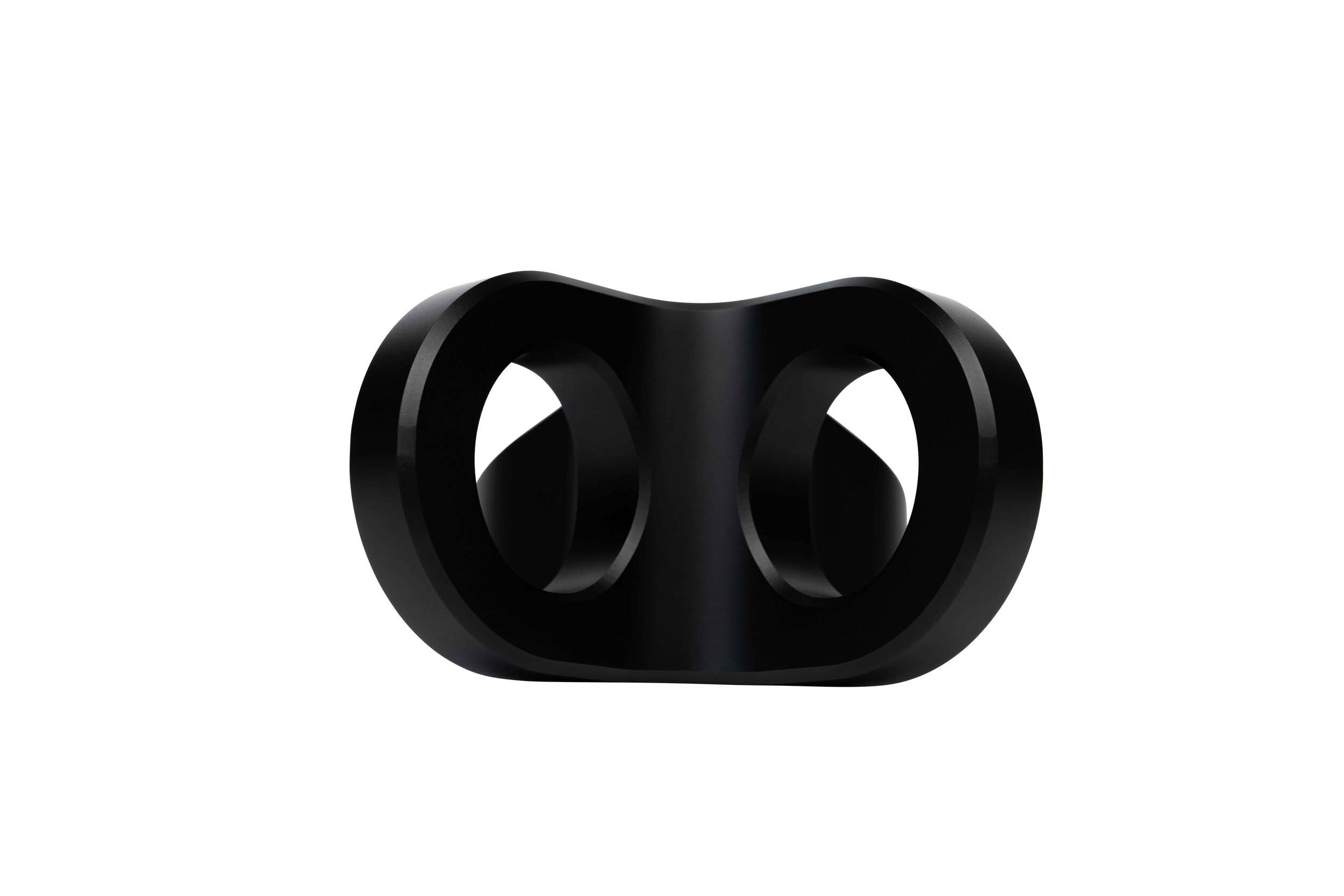

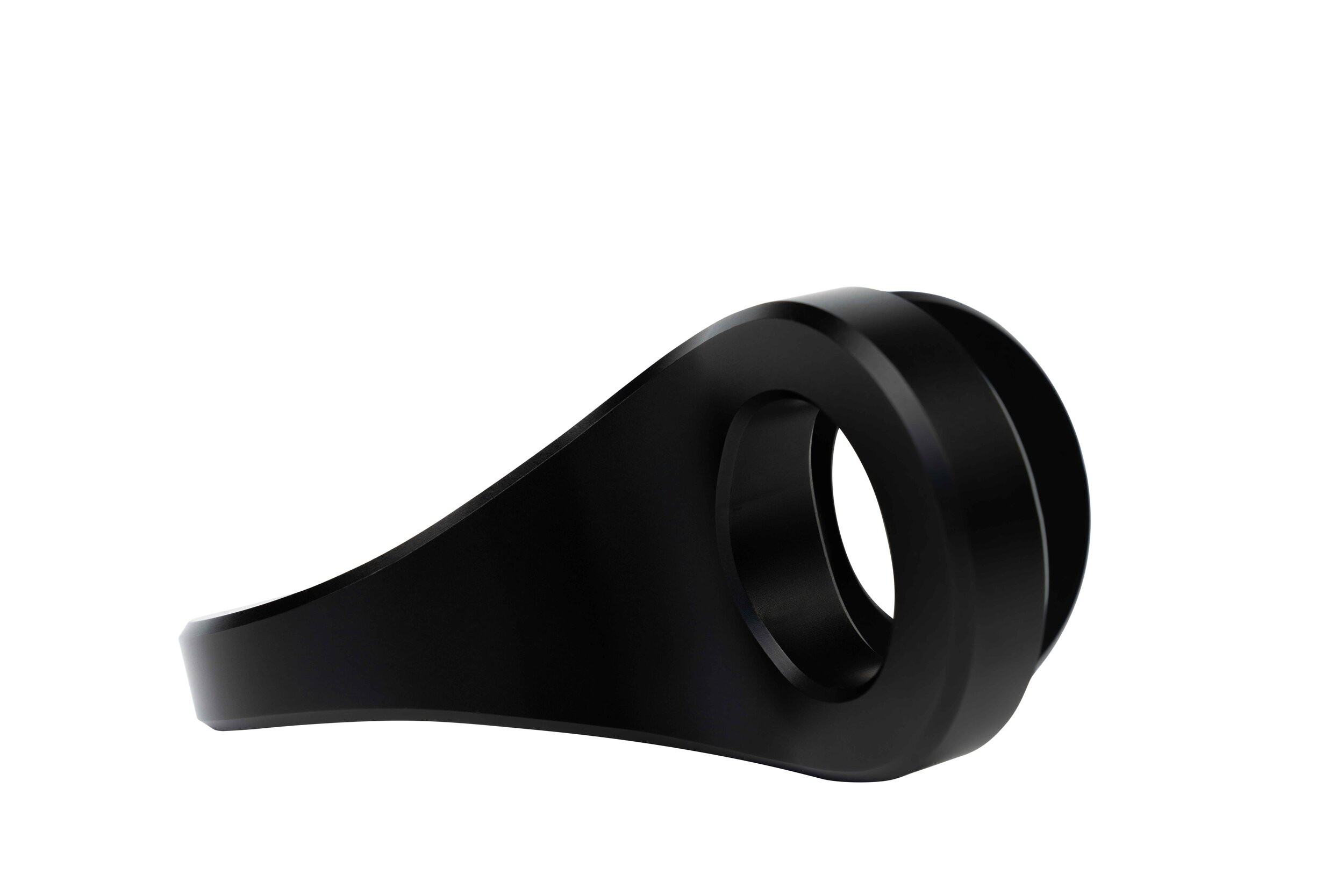

CMC Pro SQUID RIG PLATE

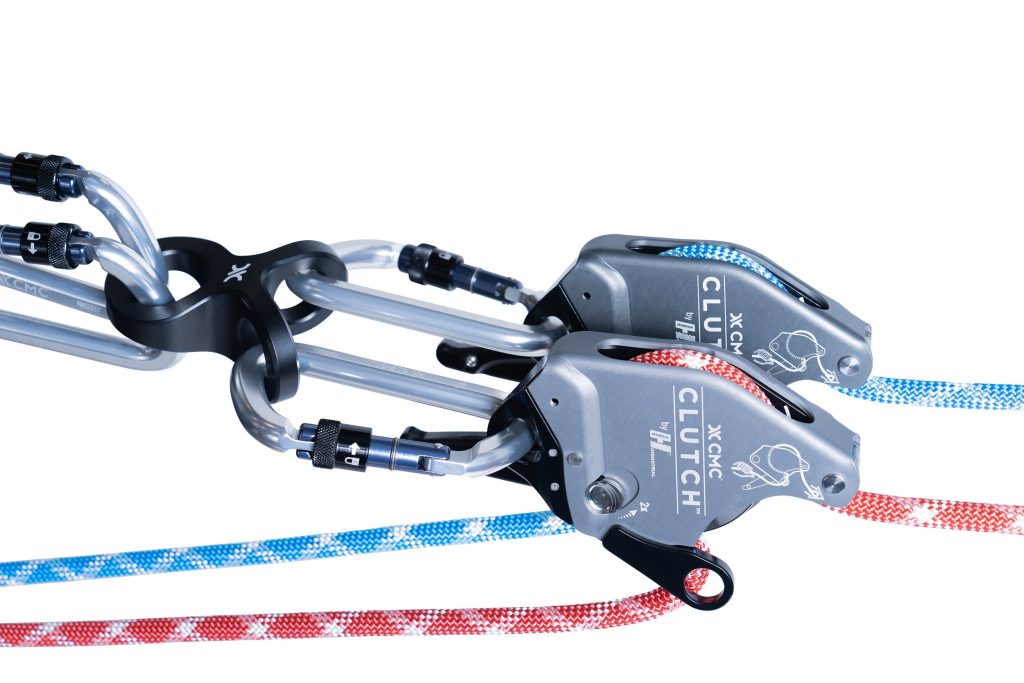

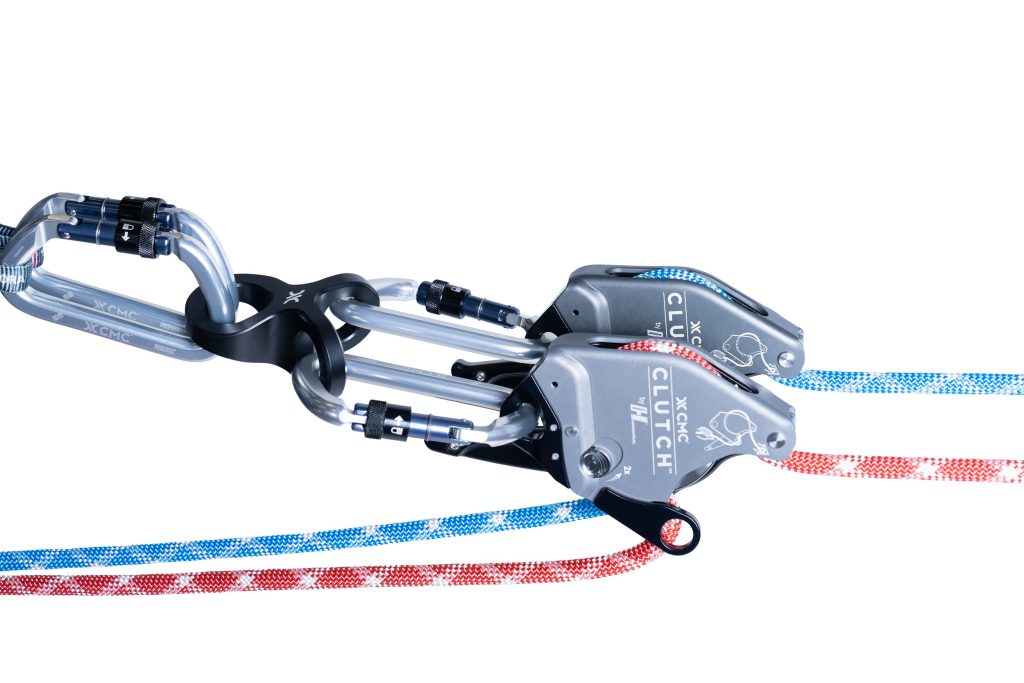

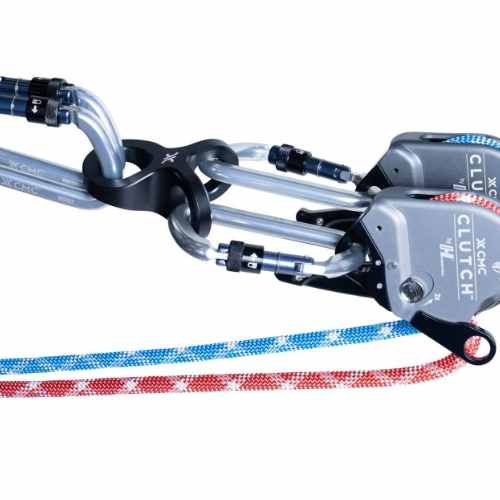

The CMC Pro SQUID Rig Plate is an innovative solution for twin tension rope systems (TTRS) and load-sharing applications. Its multi-planar design features a large attachment point for redundant anchoring and two perpendicular points for optimal alignment. SQUID efficiently brings two hardware devices side-by-side for dual operation and better shared tension. SQUID also sets ideal spacing between devices, allowing a single operator to maintain simultaneous twin tension control using dual-handle technique (aka “shark finning” or “DOUBLE CLUTCHING”). SQUID promotes safe and efficient rigging of dual capacity TTRS and provides smooth raising and lowering in mirrored and nested systems.

The SQUID streamlines the rigging of redundant load-sharing systems. The SQUID’s attachment points are compatible with a wide range of connection methods and they position rope hardware for easy loading and unloading while connected. SQUID naturally orients toward the load and lets components move freely, reducing the risk of binding and shifting in the event of anchor or line failure. Strong and compact, SQUID is a versatile tool for TTRS, litter bridals, cross hauls, and more. SQUID is CE marked, classified to NFPA General Use for specific configurations including TTRS, and classified to NFPA Technical Use when the secondary points are pulled directly apart from each other.

Features:

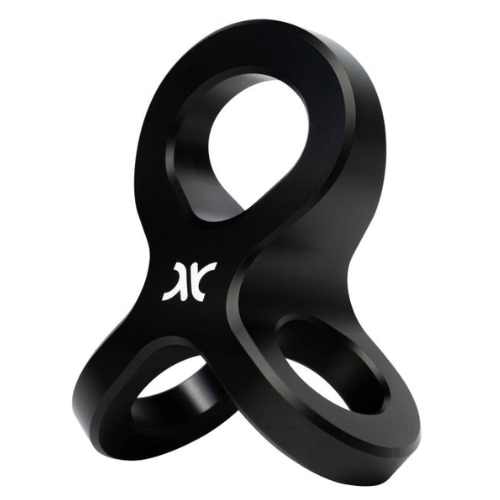

• Multi-planar rigging plate with perpendicular attachment points
• Optimizes device alignment for twin tension rope systems (TTRS)
• Enables single operator control for better shared tension
• Promotes smooth loading / unloading of connected hardware
• Allows components to move freely and orient toward the load
• Reduces shifting / extension in the event of line or anchor failure
• Aligns secondary points for high strength and easy load sharing
• Supports a variety of connection methods for versatile rigging
• Provides large collection points for building redundant systems

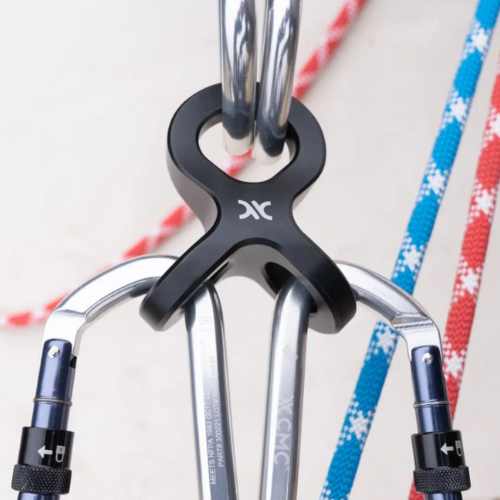

• Primary attachment point fits two (G) or three (T) carabiners*

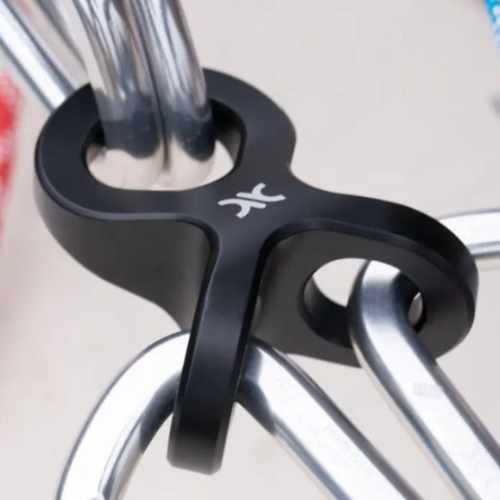

• Secondary attachment points fit one (G) or two (T) carabiners
• Simple and solid aircraft grade aluminum with no moving parts
• Strong, compact, and lightweight for multiple applications

*More carabiners may fit in the SQUID attachment points depending on the type of carabiners, applied loads, and rigging practices involved. Care should be taken to avoid binding, wedging, or other geometric restraints.

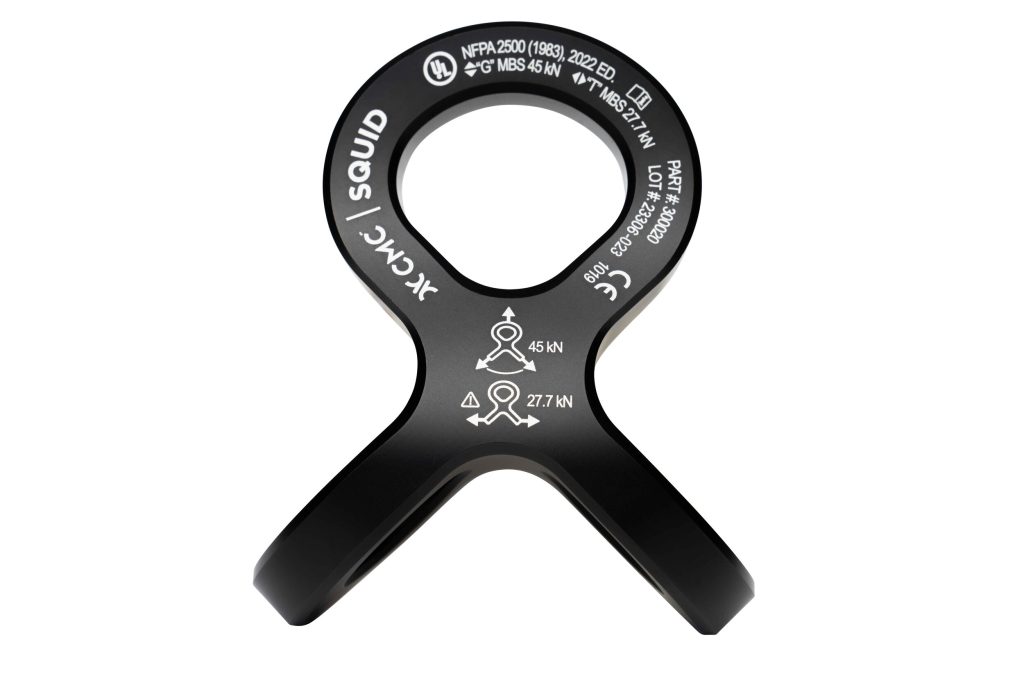

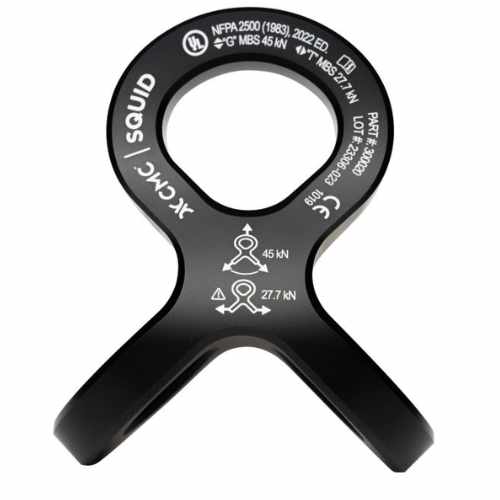

Certifications:

• NFPA
  • GENERAL USE (G) MBS 45 KN (10,116 LBF) – SPECIFIC CONFIGURATIONS*
  • TECHNICAL USE (T) MBS 27.7 KN (6,227 LBF)
• CE
  • PPE-R/RFU 11.114 VERSION 01
