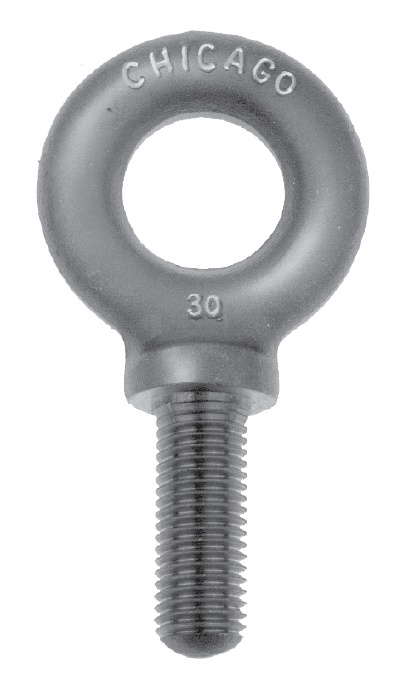

Chicago 1/2 x 1-1/2 Inch Steel Shoulder Shank Lengths Pattern Eye Bolt

The Chicago 1/2 x 1-1/2 Inch Steel Shoulder Pattern Eye Bolt is made from drop forged steel. The bolt is heat-treated after forging and is pre-threaded. If you need blank bolts (no thread) please contact us.

Working load limits for eye bolts are based on a straight vertical lift in a gradually increasing manner. Angular lifts will significantly lower working load limits and should be avoided whenever possible. If an angular lift is required, a properly seated Shoulder Pattern eyebolt must be used. Loads should always be applied to eye bolts in the plane of the eye, not at an angle to this plane. Angular lifts must never be more than a 45° pull.

Specifications:

• Bolt Diameter: 1/2 in.
• Standard Shank Length: 1-1/2 in.
• Weight: 0.38 lbs
• Working Load Limit: 2,600 lbs (Straight Pull) | 650 lbs (45° Pull - Shoulder Only)
